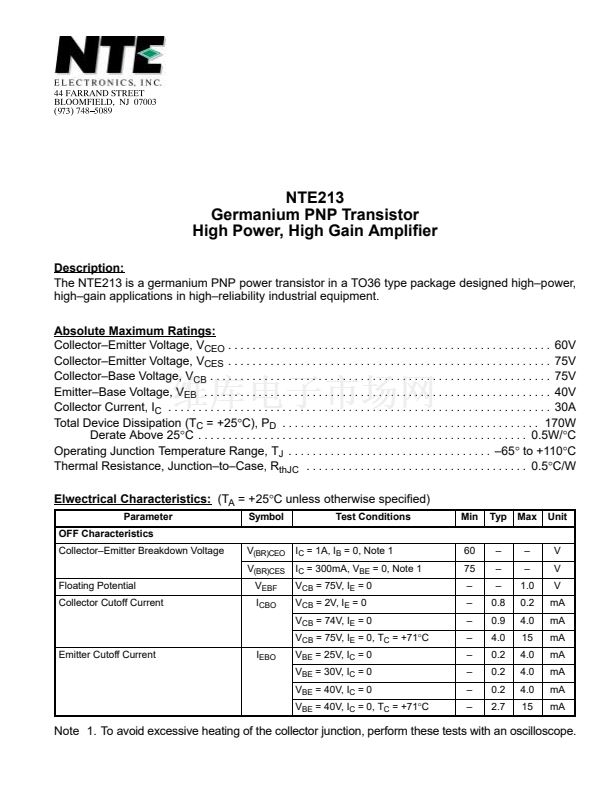

NTE213
Germanium PNP Transistor
High Power, High Gain Amplifier
Description:
The NTE213 is a germanium PNP power transistor in a TO36 type package designed high鈥損ower,
high鈥揼ain applications in high鈥搑eliability industrial equipment.
Absolute Maximum Ratings:
Collector鈥揈mitter Voltage, V
CEO
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60V
Collector鈥揈mitter Voltage, V
CES
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75V
Collector鈥揃ase Voltage, V
CB
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75V
Emitter鈥揃ase Voltage, V
EB
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40V
Collector Current, I
C
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30A
Total Device Dissipation (T
C
= +25擄C), P
D
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170W
Derate Above 25擄C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5W/擄C
Operating Junction Temperature Range, T
J
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 鈥?5擄 to +110擄C
Thermal Resistance, Junction鈥搕o鈥揅ase, R
thJC
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5擄C/W
Elwectrical Characteristics:
(T
A
= +25擄C unless otherwise specified)
Parameter
OFF Characteristics
Collector鈥揈mitter Breakdown Voltage
V
(BR)CEO
V
(BR)CES
Floating Potential
Collector Cutoff Current
V
EBF
I
CBO
I
C
= 1A, I
B
= 0, Note 1
I
C
= 300mA, V
BE
= 0, Note 1
V
CB
= 75V, I
E
= 0
V
CB
= 2V, I
E
= 0
V
CB
= 74V, I
E
= 0
V
CB
= 75V, I
E
= 0, T
C
= +71擄C
Emitter Cutoff Current
I
EBO
V
BE
= 25V, I
C
= 0
V
BE
= 30V, I
C
= 0
V
BE
= 40V, I
C
= 0
V
BE
= 40V, I
C
= 0, T
C
= +71擄C
60
75
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
0.8
0.9
4.0
0.2
0.2
0.2
2.7
鈥?/div>
鈥?/div>
1.0
0.2
4.0
15
4.0
4.0
4.0
15
V
V
V
mA
mA
mA
mA
mA
mA
mA
Symbol
Test Conditions
Min
Typ
Max
Unit
Note 1. To avoid excessive heating of the collector junction, perform these tests with an oscilloscope.
