NTE15004
Integrated Circuit
Remote Control Preamplifier
Description:
This NTE15004 is a silicon monolithic integrated circuit in an 8鈥揕ead SIP type package designed for
a remote control preamplifier of infrared signals. This device features low power, high sensitivity and
wide supply voltage.
Features:
D
Wide Operation Voltage: V
CC
= 6V to 14.4V
D
Low Power Consumption: I
CC
= 2.5mA typ.
D
High Input Sensitivity: 50碌V
p鈥損
typ.
D
Peak Detector
D

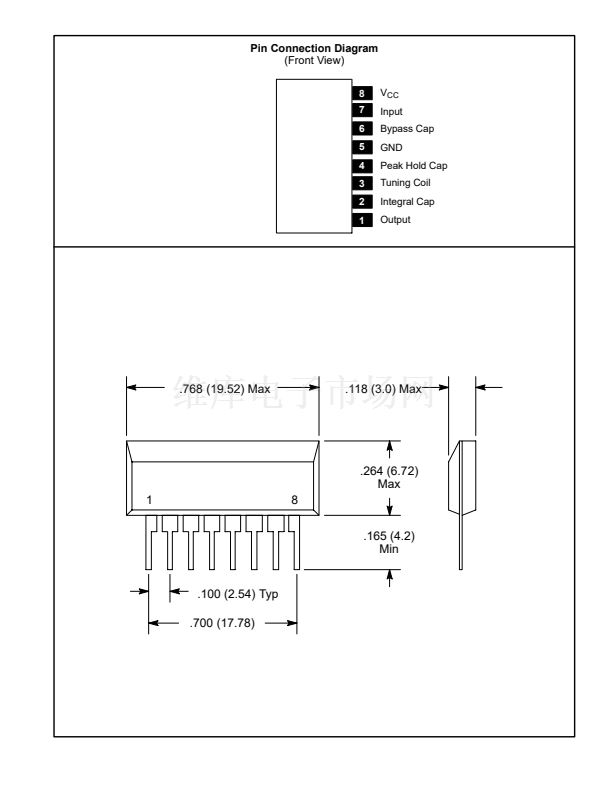

Small Size Package 鈥?8鈥揕ead SIP
D
Minimum Number of External Parts Required
Absolute Maximum Ratings:
(T
A
= +25擄C unless otherwise specified)
Supply Voltage, V
CC
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15V
Power Dissipation, P
D
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 270mW
Operating Temperature Range, T
opr
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 鈥?0擄 to +75擄C
Storage Temperature Range, T
stg
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 鈥?0擄 to +125擄C
Recommended Operating Conditions:
Parameter
Power Supply
Input Frequency
Symbol
V
CC
f
in
Test Conditions
Min
6.0
30
Typ
8.5
鈥?/div>
Max
14.4
50
Unit
V
kHz
Electrical Characteristics:
(T
A
= +25擄C, V
CC
= 8.5V, f
in
= 40kHz unless otherwise specified)
Parameter
Supply Current
Input Terminal Voltage
1
st
Stage Voltage Gain
Detection Input Voltage
Input Impedance
Output Voltage
Output Leakage Current
Noise
Symbol
I
CC
V
IN1
V
IN2
A
VL
V
IN
r
in
V
OL
I
OH
I
OL
= 0.1mA, V
IN
= 1mV
P鈥揚(yáng)
V
OH
= 14.4V
Input Open
I
IN
= 70碌A(chǔ)
Pin7 鈥?Pin4, V
OUT
= 500mV
P鈥揚(yáng)
Test Conditions
Min
1.5
2.1
3.4
鈥?/div>
鈥?/div>
40
鈥?/div>
鈥?/div>
Typ
2.5
2.6
4.1
60
50
60
鈥?/div>
鈥?/div>
Max
3.5
3.1
4.9
鈥?/div>
100
80
0.5
2
Unit
mA
V
V
dB
碌V
k鈩?/div>
V
碌A(chǔ)
Output Pin is Not Fall
