NTE1365
Integrated Circuit
Audio Power Amplifier, 5W
Description:

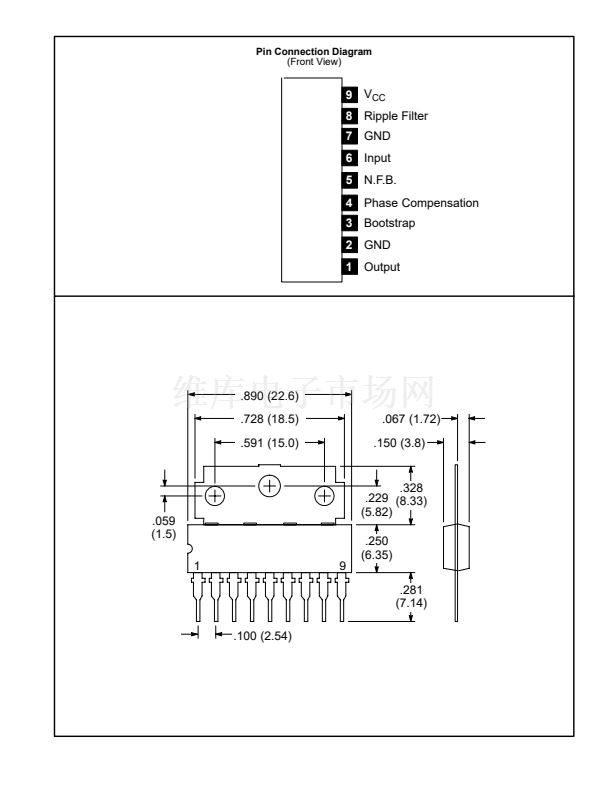

The NTE1365 is an integrated circuit in a 9鈥揕ead SIP type package designed for low power amplifier
applications such as portable radios, radio cassette tape recorders, and car radios.
Features:
D
High Gain, Low Distortion, Low Noise
D
Few External Components
D
Built鈥揑n Thermal Protection Circuit
D
Built鈥揑n Overvoltage Protection Circuit
D
Low Shock Noise When Power is Switched ON/OFF
Absolute Maximum Ratings:
(T
A
= +25擄C unless otherwise specified)
Supply Voltage (V
9鈥?
), V
CC
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20V
No Signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24V
Supply Current, I
CC
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4A
Power Dissipation (T
A
= +30擄C), P
D
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10W
Operating Ambient Temperature Range, T
opr
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 鈥?0擄 to +75擄C
Storage Temperature Range, T
stg
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 鈥?0擄 to +150擄C
Electrical Characteristics:
(T
A
= +25擄C, V
CC
= 13.2V, R
L
= 4鈩? f = 1kHz unless otherwise specified)
Parameter
Quiescent Circuit Current
Voltage Gain
Output Power
Total Harmonic Distortion
Output Noise Voltage
Input Impedance
Symbol
I
CQ
G
V
THD
V
no
Z
i
V
i
= 0
V
i
= 3mV
V
i
= 3mV
R
g
= 10k鈩?/div>
Test Conditions
Min
7
4.5
鈥?/div>
鈥?/div>
鈥?/div>
Typ
20
5.0
0.3
1.5
30
Max
45
鈥?/div>
1.0
3.0
鈥?/div>
Unit
mA
mA
W
%
mV
k鈩?/div>
51.5 53.5 55.5
P
O(max)
THD = 10%
