NTE131 (PNP) & NTE155 (NPN)
Germanium Complementary Transistors
Audio Power Amplifier
Description:

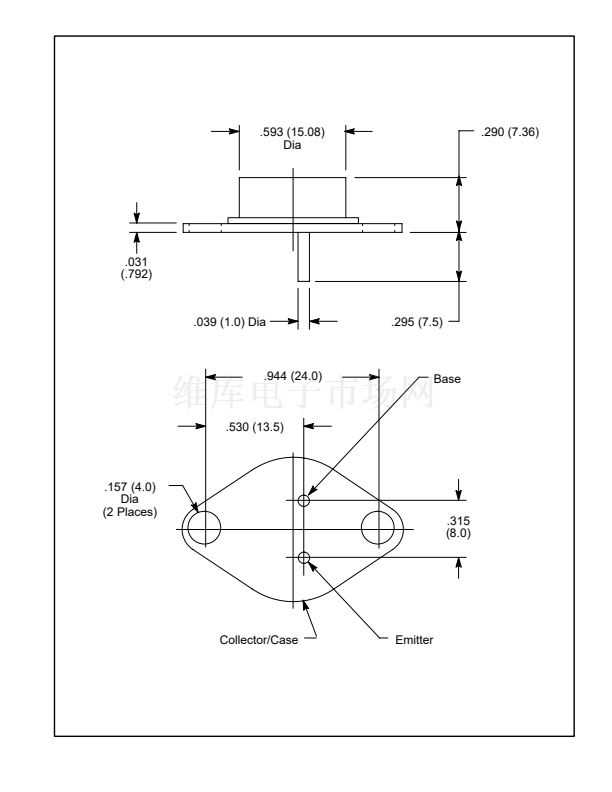

The NTE131 (PNP) and NTE155 (NPN) are Germanium PNP Alloy Junction transistors in a Japanese
TO66 type package designed for use in audio power amplifier applications.
Absolute Maximum Ratings:
(T
A
= +25擄C unless otherwise specified)
Collector鈥揃ase Voltage, V
CBO
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32V
Collector鈥揈mitter Voltage, V
CES
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32V
Emitter鈥揃ase Voltage, V
EBO
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10V
Collector Current, I
C
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1A
Base Current, I
B
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200mA
Power Dissipation, P
C
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6W
Operating Junction Temperature, T
J
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +90擄C
Storage Temperature Range, T
stg
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 鈥?5擄 to +90擄C
Note 1. NTE131MP is a matched pair of NTE131 with their DC Current Gain (h
FE
) matched to within
10% of each other.
Electrical Characteristics:
(T
A
= +25擄C unless otherwise specified)
Parameter
Collector Cutoff Current
Emitter Cutoff Current
DC Current Gain
Symbol
I
CEV
I
EBO
h
FE1
h
FE2
Common鈥揈mitter Cutoff Frequency
Base鈥揈mitter ON Voltage
Collector鈥揈mitter Saturation Voltage
f
偽e
V
BE
V
CE(sat)
Test Conditions
V
CE
= 32V, V
EB
= 1V
V
EB
= 10V, I
C
= 0
V
CB
= 0, I
E
= 100mA
V
CB
= 0, I
E
= 1A
V
CB
= 2V, I
E
= 100mA
V
CB
= 0, I
E
= 1A
I
C
= 1A, I
B
= 100mA
Min
鈥?/div>
鈥?/div>
35
36
10
鈥?/div>
鈥?/div>
Typ
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
15
0.4
0.08
Max
1
1
170
185
