NTE1293
Integrated Circuit
Dual, Audio Power Amp, 5.8W/Ch
Description:

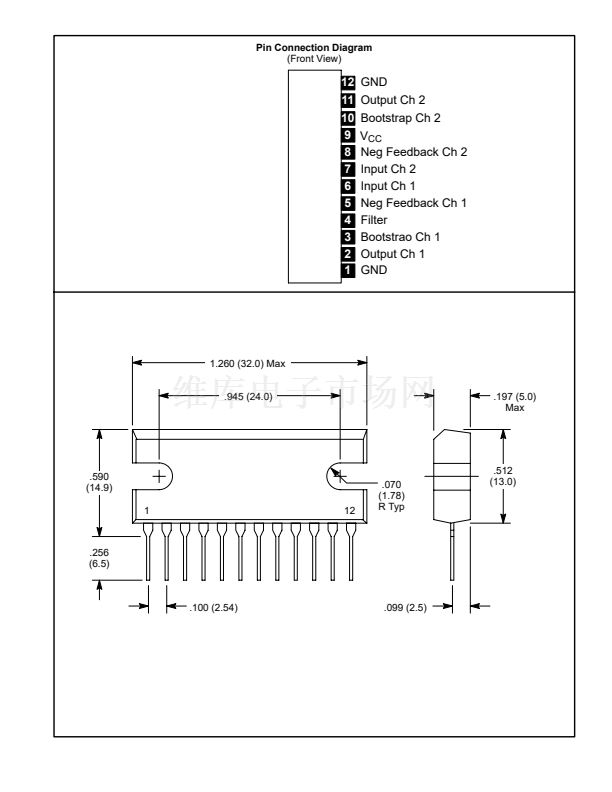

The NTE1293 is a dual audio power amplifier in a 12鈥揕ead SIP type package specifically designed
for car stereo applications. This device provides an output power of 7W/Ch to a 4鈩?load with 10%
THD at 14.4V power supply.
Features:
D
Very Low Number of External Components Required
D
Easy Mounting with No Electrical Isolation Between the Package and Heat Sink
D
Very Low Transient Noise at Power Switch鈥揙n
D
No Damage for Reverse Insertion on the PC Board
D
Thermal Shut鈥揇own Circuit Included
D
Load Dump Protection Circuit Included
Absolute Maximum Ratings:
(T
A
= +25擄C unless otherwise specified)
Supply Voltage (Surge PW = 200ms), V
CC
surge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40V
Supply Voltage (Quiescent, Note 1), V
CC1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25V
Supply Voltage (Operational), V
CC2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18V
Peak Circuit Current, I
CC
peak . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.5A
package Dissipation, P
D
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20W
Operating Temperature Range (Note 1), T
opr
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 鈥?0擄 to +75擄C
Storage Temperature Range, T
stg
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 鈥?5擄 to +150擄C
Note 1. Using an aluminum heat sink, R
thCA
= 6擄C/W.
Electrical Characteristics:
(T
A
= +25擄C, V
CC
= 13.2V, f = 1kHz, R
L
= 4鈩?unless otherwise specified)
Parameter
Circuit Current
Output Power
Symbol
I
CC
P
O
v
in
= 0
THD = 10%, V
CC
= 14.4V
THD = 10%, V
CC
= 13.2V
THD = 10%, V
CC
= 14.4V, R
L
= 2鈩?/div>
Total Harmonic Distortion
THD
P
O
= 0.5W
P
O
= 2W, R
L
= 2鈩?/div>
Voltage Gain
Channel Balance
Crosstalk
Output Noise Level
A
V
鈭咥
V
CT
v
n
P
O
= 0.5W
P
O
= 0.5W
f = 1kHz, other channel R
G
= 0
R
G
= 10k鈩?/div>
Test Conditions
Min
30
鈥?/div>
5.0
鈥?/div>
鈥?/div>
鈥?/div>
51
鈥?/div>
30
鈥?/div>
Typ
80
7.0
5.8
8.5
0.3
0.4
54
鈥?/div>
45
1.4
Max
180
鈥?/div>
鈥?/div>
鈥?/div>
1.0
鈥?/div>
58
鹵1.5
鈥?/div>
4.0
Unit
mA
W
W
W
%
%
dB
dB
dB
mV
rms
