NTE1197
Integrated Circuit
OSC and 12鈥揝tage Divider
Description:

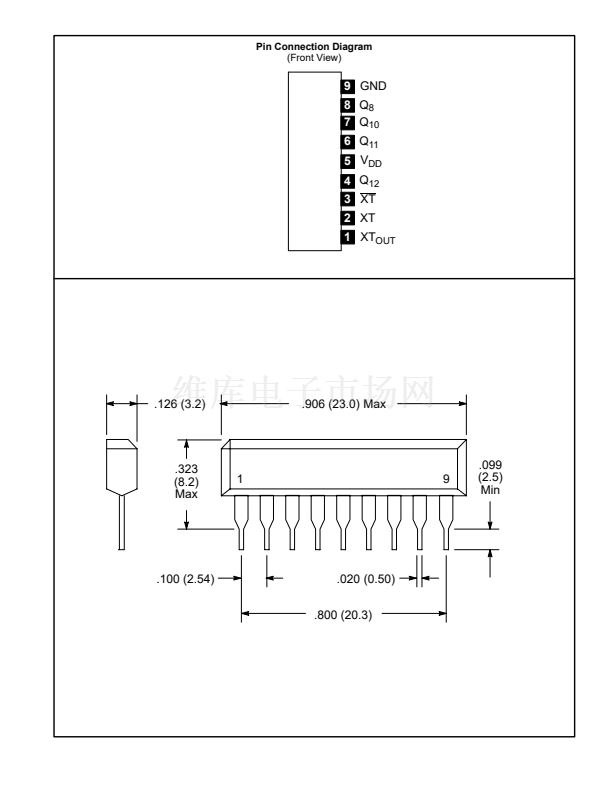

The NTE1197 is an integrated circuit in a 9鈥揕ead SIP type package consisting of a 12 stage frequency
divider and an amplifier for use in crystal oscillator applications. This device is designed to operate
with an input frequency of 10.24MHz. Available reference dividing ratios are 2
8
, 2
10
, 2
11
and 2
12
.
Absolute Maximum Ratings:
(T
A
= +25擄C unless otherwise specified)
Supply Voltage, V
DD
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10V
Input Voltage, V
IN
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 鈥?.3 to V
DD
+ 0.3V
Operating Temperature Range, T
opr
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 鈥?0 to +75擄C
Storage Temperature Range, T
stg
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 鈥?5 to +125擄C
Electrical Characteristics:
(T
A
= 鈥?0擄 to 75擄C unless otherwise specified)
Parameter
Operating Supply Voltage
Operating Current
Output Voltage High Level
Output Voltage Low Level
Maximum Clock Frequency
PIN Output Voltage
Symbol
V
DD
I
DD
V
OH
V
OL
f
MAX
V
OUT
Test Conditions
X鈥?tal = 10.24MHz
X鈥檛al = 10.24MHz V
DD
= 7.5V
V
DD
= 7.5V, I
OL
= 50碌A(chǔ), Pin4, Pin6, Pin7, Pin8
V
DD
= 7.5V, I
OH
= 鈥?0碌A(chǔ), Pin4, Pin6, Pin7, Pin8
V
DD
= 7.5V
V
DD
= 7.5V, C
L
= 15pF, X鈥檛al = 10.24MHz
Min
4.5
鈥?/div>
7.3
鈥?/div>
10.24
3.5
Typ
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
