NSVS802 Datasheet

  • NSVS802

  • TELCONTROL

  • 224.26KB

  • 7頁

  • NJRC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

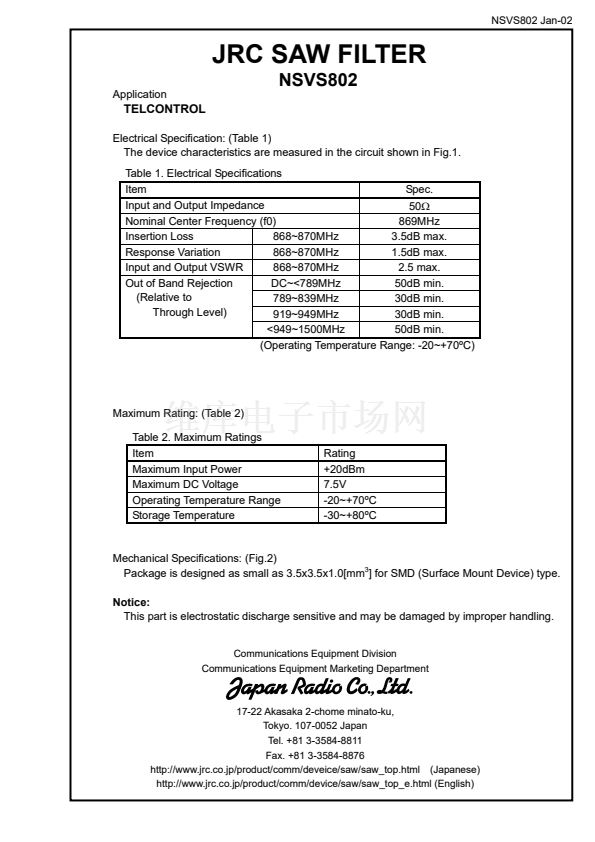

NSVS802 Jan-02
JRC SAW FILTER
NSVS802
Application
TELCONTROL
Electrical Specification: (Table 1)
The device characteristics are measured in the circuit shown in Fig.1.
Table 1. Electrical Specifications
Item
Spec.
Input and Output Impedance
50鈩?/div>
Nominal Center Frequency (f0)
869MHz
Insertion Loss
868~870MHz
3.5dB max.
Response Variation
868~870MHz
1.5dB max.
Input and Output VSWR
868~870MHz
2.5 max.

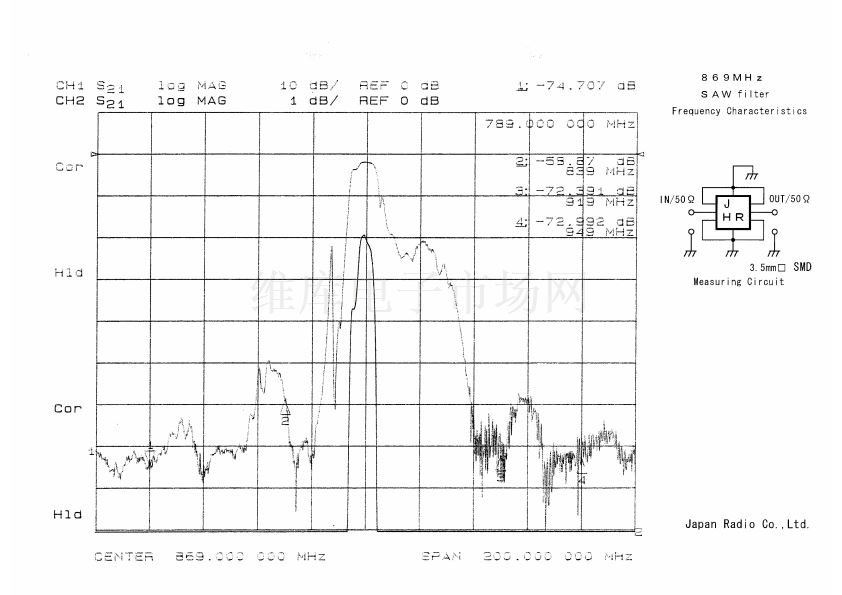

Out of Band Rejection
DC~<789MHz
50dB min.
(Relative to
789~839MHz
30dB min.
Through Level)
919~949MHz
30dB min.
<949~1500MHz
50dB min.
(Operating Temperature Range: -20~+70潞C)
Maximum Rating: (Table 2)
Table 2. Maximum Ratings
Item
Maximum Input Power
Maximum DC Voltage
Operating Temperature Range
Storage Temperature
Rating
+20dBm
7.5V
-20~+70潞C
-30~+80潞C

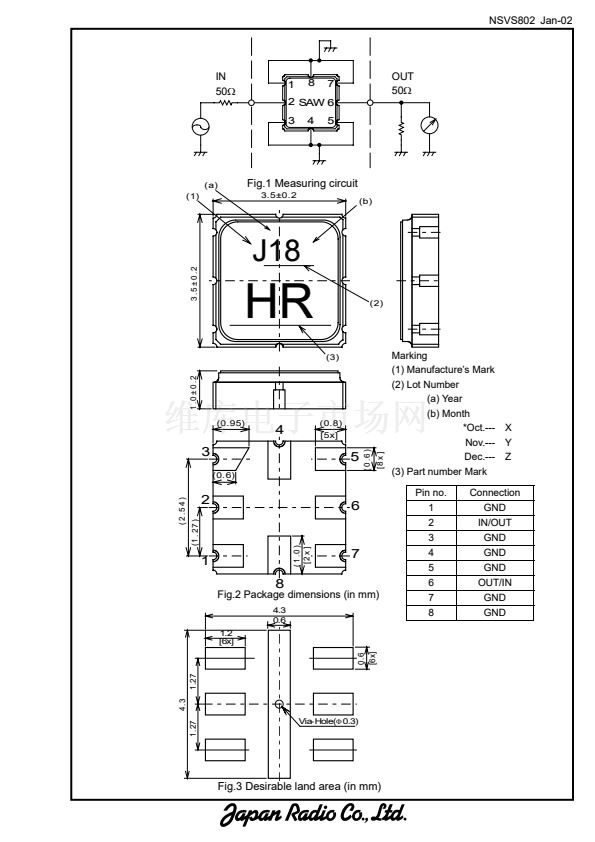

Mechanical Specifications: (Fig.2)
Package is designed as small as 3.5x3.5x1.0[mm
3
] for SMD (Surface Mount Device) type.
Notice:
This part is electrostatic discharge sensitive and may be damaged by improper handling.
Communications Equipment Division
Communications Equipment Marketing Department
17-22 Akasaka 2-chome minato-ku,
Tokyo. 107-0052 Japan
Tel. +81 3-3584-8811
Fax. +81 3-3584-8876
http://www.jrc.co.jp/product/comm/deveice/saw/saw_top.html (Japanese)
http://www.jrc.co.jp/product/comm/device/saw/saw_top_e.html (English)
