NSVA352 Datasheet

  • NSVA352

  • JRC SAW FILTER

  • 7頁

  • NJRC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

NSVA352 Dec-01
JRC SAW FILTER
NSVA352
Application
1575.42MHz GPS
Electrical Specification: (Table 1)

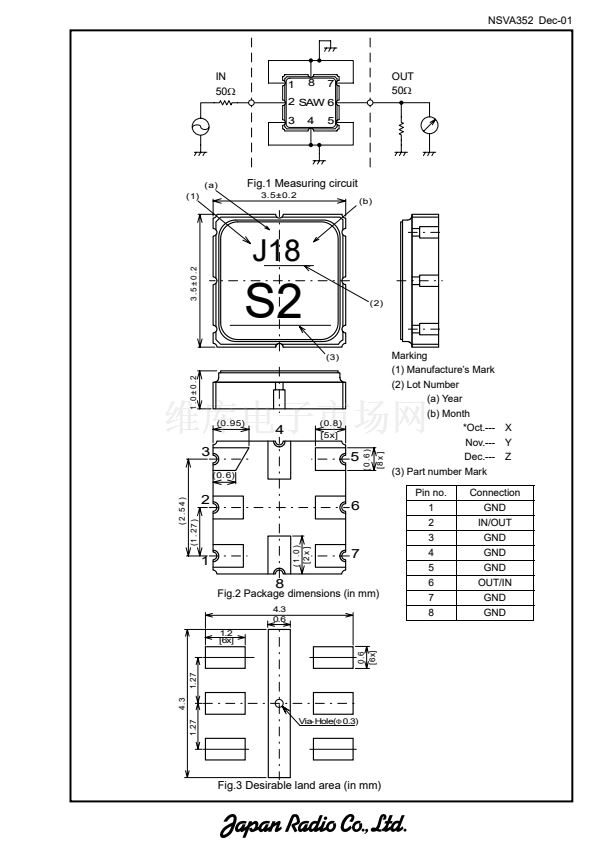

The device characteristics are measured in the circuit shown in Fig.1.
Table 1. Electrical Specifications
Item
Spec.
Input and Output Impedance
50鈩?/div>
Nominal Center Frequency (f0)
1575.42MHz
Insertion Loss
1574.42~1576.42MHz
3.5dB max.
Response Variation
1574.42~1576.42MHz
1.5dB max.
Input and Output VSWR
1574.42~1576.42MHz
2.5 max.
Out of Band Rejection
1475.42MHz
40dB min.
(Relative to
1535.42MHz
30dB min.
Through Level)
1615.42MHz
20dB min.
1675.42MHz
40dB min.
(Operating Temperature Range: -40~+85潞C)
Maximum Rating: (Table 2)
Table 2. Maximum Ratings
Item
Maximum Input Power
Maximum DC Voltage
Operating Temperature Range
Storage Temperature
Rating
+20dBm
7.5V
-40~+85潞C
-50~+100潞C
Mechanical Specifications: (Fig.2)
Package is designed as small as 3.5x3.5x1.0[mm
3
] for SMD (Surface Mount Device) type.

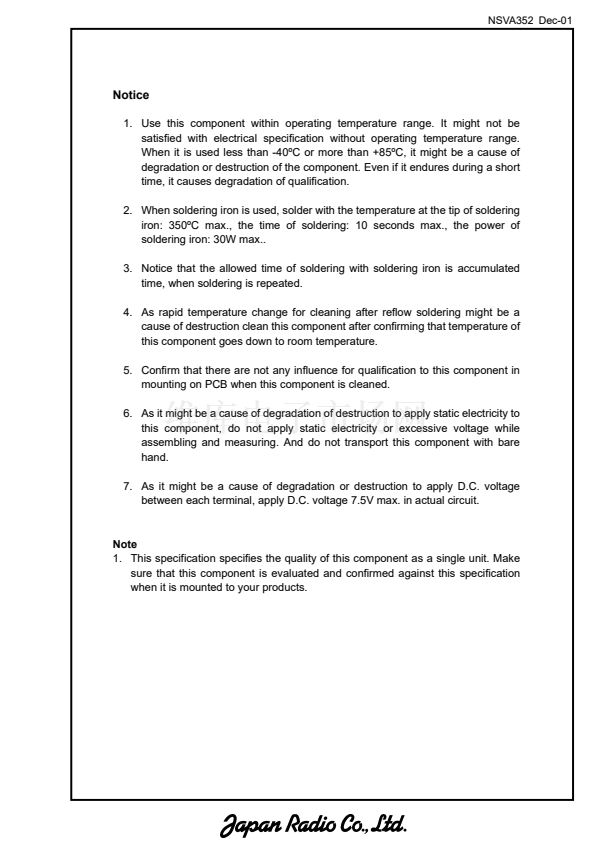

Notice:
This part is electrostatic discharge sensitive and may be damaged by improper handling.
Communications Equipment Division
Communications Equipment Marketing Department
17-22 Akasaka 2-chome minato-ku,
Tokyo. 107-0052 Japan
Tel. +81 3-3584-8811
Fax. +81 3-3584-8876
http://www.jrc.co.jp/product/comm/deveice/saw/saw_top.html (Japanese)
http://www.jrc.co.jp/product/comm/device/saw/saw_top_e.html (English)
