JRC SAW FILTER
NSVA288
Application
PAGER 930MHz
Electrical Specification: (Table 1)

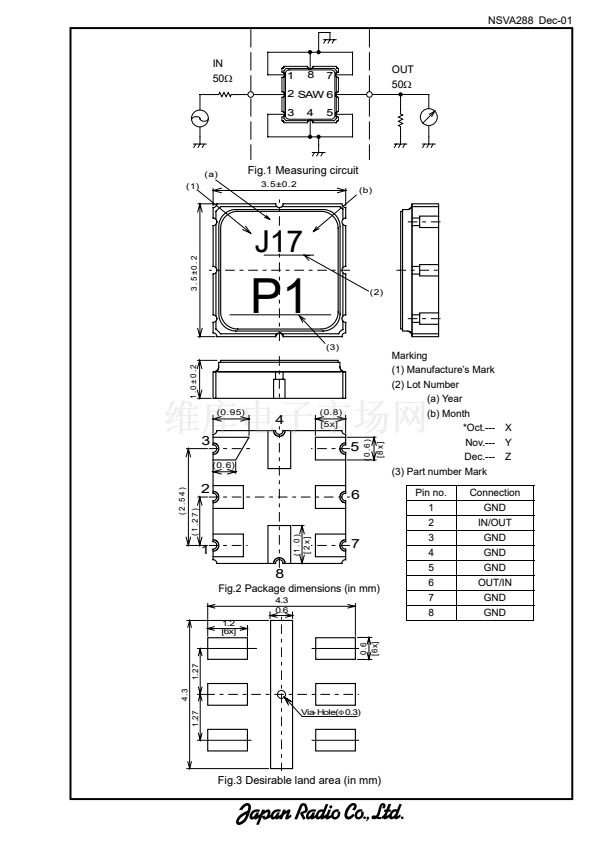

The device characteristics are measured in the circuit shown in Fig.1.
Table 1. Electrical Specifications
Item
Spec.
Input and Output Impedance
50鈩?/div>
Nominal Center Frequency (f0)
930MHz
Insertion Loss
928~932MHz
3.5dB max.
Response Variation
928~932MHz
1.2dB max.
Out of Band Rejection
630~910.7MHz
40dB min.
(Relative to
961.8~965.1MHz
27dB min.
Through Level)
990~1030MHz
40dB min.
(Operating Temperature Range: -10~+60潞C)
Maximum Rating: (Table 2)
Table 2. Maximum Ratings
Item
Maximum Input Power
Maximum DC Voltage
Operating Temperature Range
Storage Temperature
Rating
0dBm
7.5V
-10~+60潞C
-30~+85潞C
Mechanical Specifications: (Fig.2)
Package is designed as small as 3.5x3.5x1.0[mm
3
] for SMD (Surface Mount Device) type.

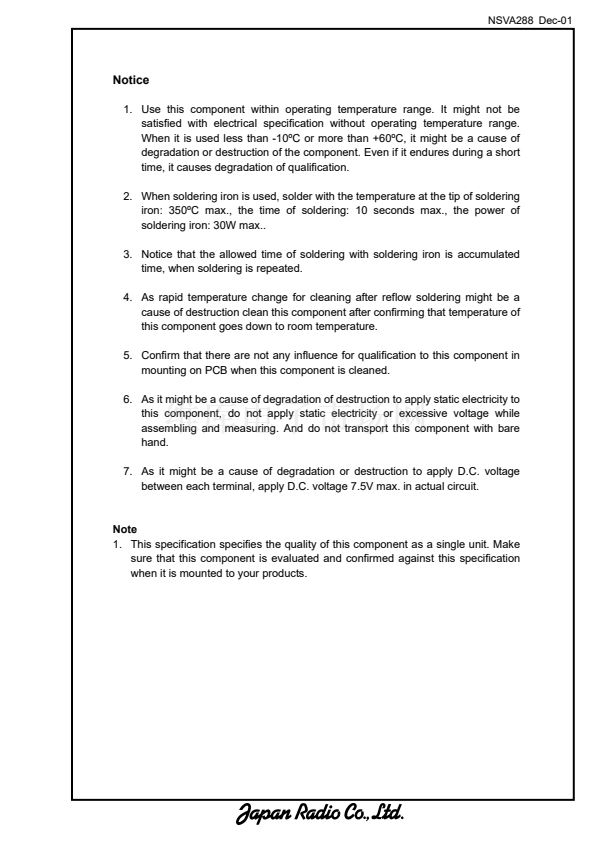

Notice:
This part is electrostatic discharge sensitive and may be damaged by improper handling.
Communications Equipment Division
Communications Equipment Marketing Department
17-22 Akasaka 2-chome minato-ku,
Tokyo. 107-0052 Japan
Tel. +81 3-3584-8811
Fax. +81 3-3584-8876
http://www.jrc.co.jp/product/comm/deveice/saw/saw_top.html (Japanese)
http://www.jrc.co.jp/product/comm/device/saw/saw_top_e.html (English)
