NL74VCX16244
Low-Voltage 1.8/2.5/3.3V
16-Bit Buffer
With 3.6V鈥揟olerant Inputs and Outputs
(3鈥揝tate, Non鈥揑nverting)
The NL74VCX16244 is an advanced performance, non鈥搃nverting
16鈥揵it buffer. It is designed for very high鈥搒peed, very low鈥損ower
operation in 1.8V, 2.5V or 3.3V systems.
When operating at 2.5V (or 1.8V) the part is designed to tolerate
voltages it may encounter on either inputs or outputs when interfacing
to 3.3V busses. It is guaranteed to be over鈥搗oltage tolerant to 3.6V.
The NL74VCX16244 is nibble controlled with each nibble
functioning identically, but independently. The control pins may be
tied together to obtain full 16鈥揵it operation. The 3鈥搒tate outputs are
controlled by an Output Enable (OEn) input for each nibble. When
OEn is LOW, the outputs are on. When OEn is HIGH, the outputs are
in the high impedance state.
http://onsemi.com
48
1
TSSOP鈥?8
DT SUFFIX
CASE 1201
MARKING DIAGRAM
48
鈥?/div>
Designed for Low Voltage Operation: VCC = 1.65鈥?.6V
鈥?/div>
3.6V Tolerant Inputs and Outputs
鈥?/div>
High Speed Operation: 2.5ns max for 3.0 to 3.6V
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
3.0ns max for 2.3 to 2.7V
6.0ns max for 1.65 to 1.95V
Static Drive:
鹵24mA
Drive at 3.0V
鹵18mA
Drive at 2.3V
鹵6mA
Drive at 1.65V
Supports Live Insertion and Withdrawal
IOFF Specification Guarantees High Impedance When VCC = 0V
Near Zero Static Supply Current in All Three Logic States (20碌A(chǔ))
Substantially Reduces System Power Requirements
Latchup Performance Exceeds
鹵300mA
@ 125擄C
ESD Performance: Human Body Model >2000V; Machine Model
>200V
NL74VCX16244DT
AWLYYWW
1
A
WL
YY
WW
= Assembly Location
= Wafer Lot
= Year
= Work Week

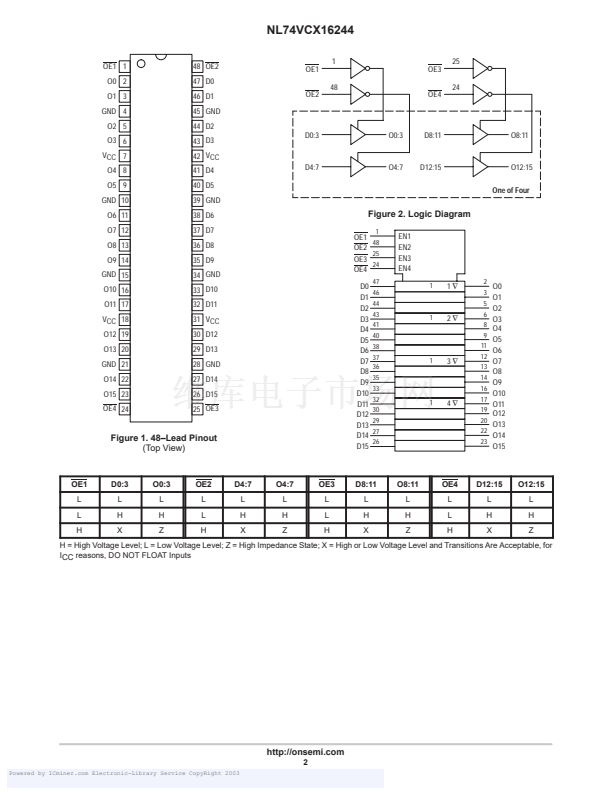

PIN NAMES
Pins
OEn
D0鈥揇15
O0鈥揙15
Function
Output Enable Inputs
Inputs
Outputs
ORDERING INFORMATION
Device
NL74VCX16244DT
NL74VCX16244DTR2
Package
TSSOP
TSSOP
Shipping
39 / Rail
2500 / Reel
漏
Semiconductor Components Industries, LLC, 2000
1
May, 2000 鈥?Rev. 0
Powered by ICminer.com Electronic-Library Service CopyRight 2003
Publication Order Number:
NL74VCX16244/D
