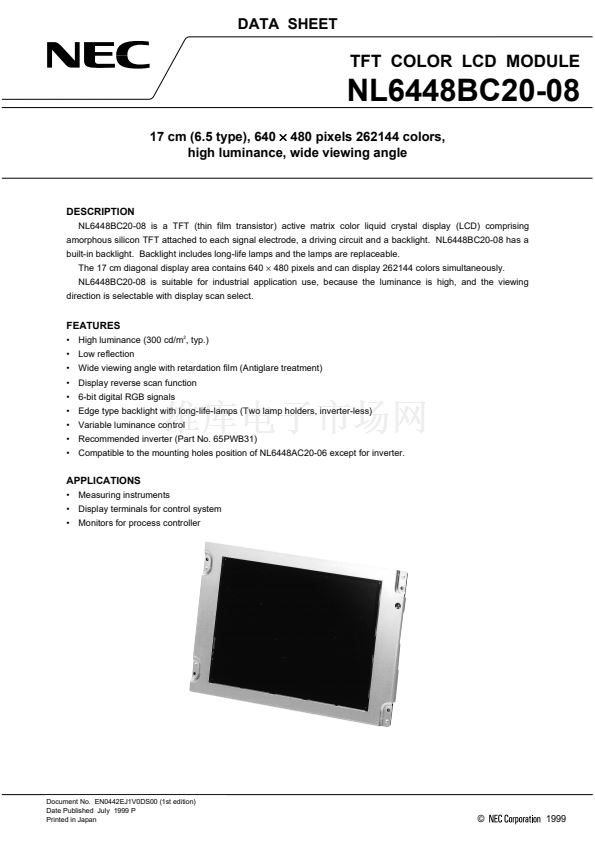

DATA SHEET

TFT COLOR LCD MODULE

NL6448BC20-08

17 cm (6.5 type), 640

脳

480 pixels 262144 colors,

high luminance, wide viewing angle

DESCRIPTION

NL6448BC20-08 is a TFT (thin film transistor) active matrix color liquid crystal display (LCD) comprising

amorphous silicon TFT attached to each signal electrode, a driving circuit and a backlight. NL6448BC20-08 has a

built-in backlight. Backlight includes long-life lamps and the lamps are replaceable.

The 17 cm diagonal display area contains 640

脳

480 pixels and can display 262144 colors simultaneously.

NL6448BC20-08 is suitable for industrial application use, because the luminance is high, and the viewing

direction is selectable with display scan select.

FEATURES

鈥?High luminance (300 cd/m

2

, typ.)

鈥?Low reflection

鈥?Wide viewing angle with retardation film (Antiglare treatment)

鈥?Display reverse scan function

鈥?6-bit digital RGB signals

鈥?Edge type backlight with long-life-lamps (Two lamp holders, inverter-less)

鈥?Variable luminance control

鈥?Recommended inverter (Part No. 65PWB31)

鈥?Compatible to the mounting holes position of NL6448AC20-06 except for inverter.

APPLICATIONS

鈥?Measuring instruments

鈥?Display terminals for control system

鈥?Monitors for process controller

Document No. EN0442EJ1V0DS00 (1st edition)

Date Published July 1999 P

Printed in Japan

漏

1999
