Extremely High Speed: t
PD
2.4 ns (typical) at V
CC
= 5.0 V
Designed for 1.65 V to 5.5 V V
CC
Operation
Over Voltage Tolerant Inputs and Outputs
LVTTL Compatible 鈭?Interface Capability With 5.0 V TTL Logic
with V
CC
= 3.0 V
LVCMOS Compatible
24 mA Balanced Output Sink and Source Capability
Near Zero Static Supply Current Substantially Reduces System
Power Requirements
Replacement for NC7WZ86
Figure 1.
http://onsemi.com
MARKING
DIAGRAM
8
8
1
US8
US SUFFIX
CASE 493
L8
1
D
D = Date Code
A1
1
8
V
CC
ORDERING INFORMATION
B1
2
7
Y1

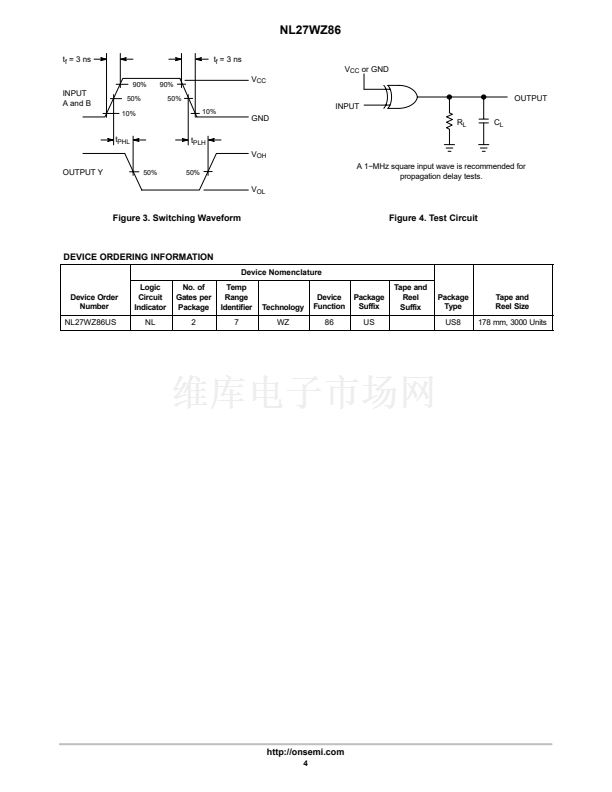

See detailed ordering and shipping information in the package
dimensions section on page 4 of this data sheet.
Y2
3
6
B2
A1
=1
Y1
Y2
GND
4
5
A2
B1
A2
B2
Figure 1. Pinout
(Top View)
PIN ASSIGNMENT
Pin
1
2
3
4
5
6
7
8
Function
A1
B1
Y2
GND
A2
B2
Y1
V
CC
A
L
L
H
H
Figure 2. Logic Symbol
FUNCTION TABLE
Input
Output
Y=A+B
B
L
H
L
H
Y
L
H
H
L
漏
Semiconductor Components Industries, LLC, 2004
1
March, 2004 鈭?Rev. 2
Publication Order Number:
NL27WZ86/D
