Extremely High Speed: tPD 2.5 ns (typical) at VCC = 5 V
Designed for 2.3 V to 5.5 V VCC Operation
Over Voltage Tolerant Inputs
LVTTL Compatible 鈥?Interface Capability With 5 V TTL Logic with
VCC = 3 V
LVCMOS Compatible
24 mA Balanced Output Sink and Source Capability
Near Zero Static Supply Current Substantially Reduces System
Power Requirements
Replacement for NC7WZ08
Chip Complexity: FET = 124
http://onsemi.com
MARKING
DIAGRAM
8
8
1
US8
US SUFFIX
CASE 493鈥?1
L2
1
D
D = Date Code
A1
1
8
VCC
B1
2
7
Y1
ORDERING INFORMATION

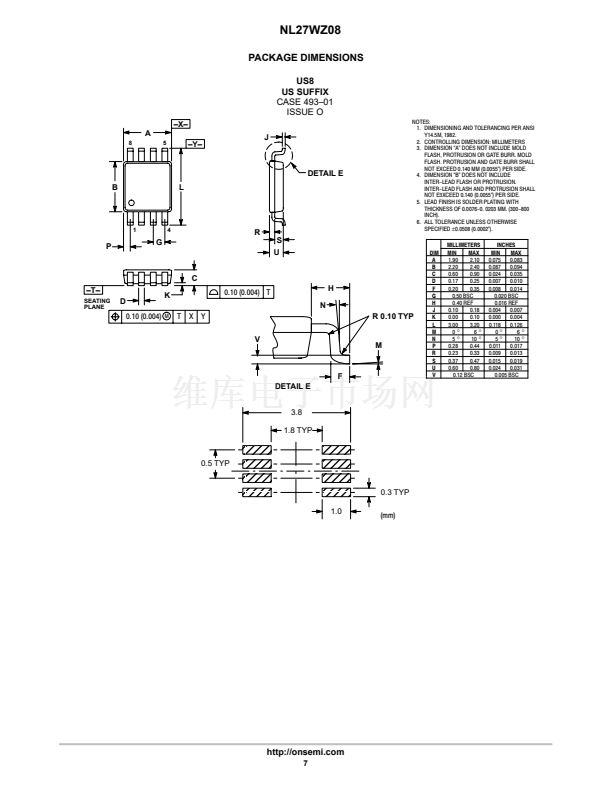

See detailed ordering and shipping information in the package
dimensions section on page 4 of this data sheet.
Y2
3
6
B2
A1
B1
A2
B2
IEEE/IEC
&
Y1
Y2
GND
4
5
A2
Figure 1. Pinout
(Top View)
PIN ASSIGNMENT
Figure 2. Logic Symbol
FUNCTION TABLE
Pin
1
2
3
4
5
6
7
8
Function
A1
B1
Y2
GND
A2
B2
Y1
VCC
A
L
L
H
H
Inputs
B
L
H
L
H
Output
Y
L
L
L
H
Y = AB
H = HIGH Logic Level
L = LOW Logic Level
漏
Semiconductor Components Industries, LLC, 2001
1
June, 2001 鈥?Rev. 0
Publication Order Number:
NL27WZ08/D
