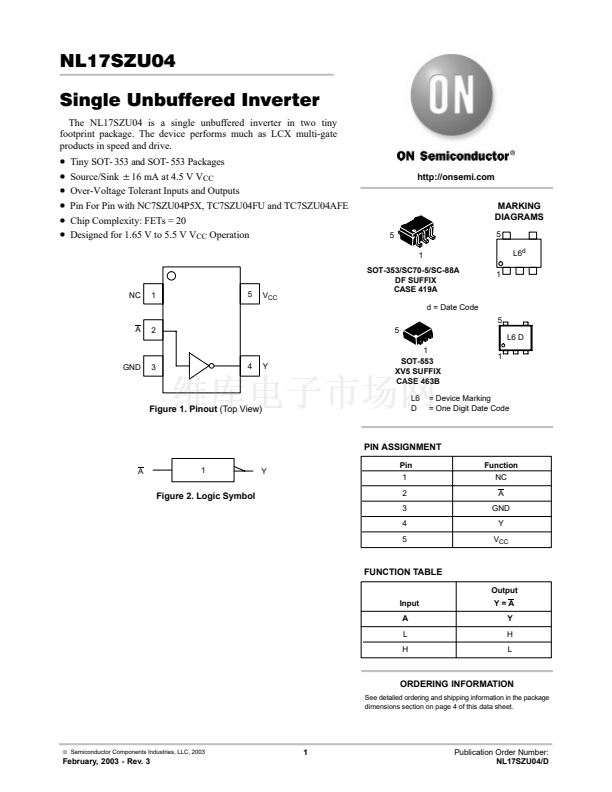

NL17SZU04
Single Unbuffered Inverter
The NL17SZU04 is a single unbuffered inverter in two tiny
footprint package. The device performs much as LCX multi-gate
products in speed and drive.
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Tiny SOT- 353 and SOT- 553 Packages
Source/Sink
$16
mA at 4.5 V V
CC
Over-Voltage Tolerant Inputs and Outputs
Pin For Pin with NC7SZU04P5X, TC7SZU04FU and TC7SZU04AFE
Chip Complexity: FETs = 20
Designed for 1.65 V to 5.5 V V
CC
Operation
http://onsemi.com
MARKING
DIAGRAMS
5
1

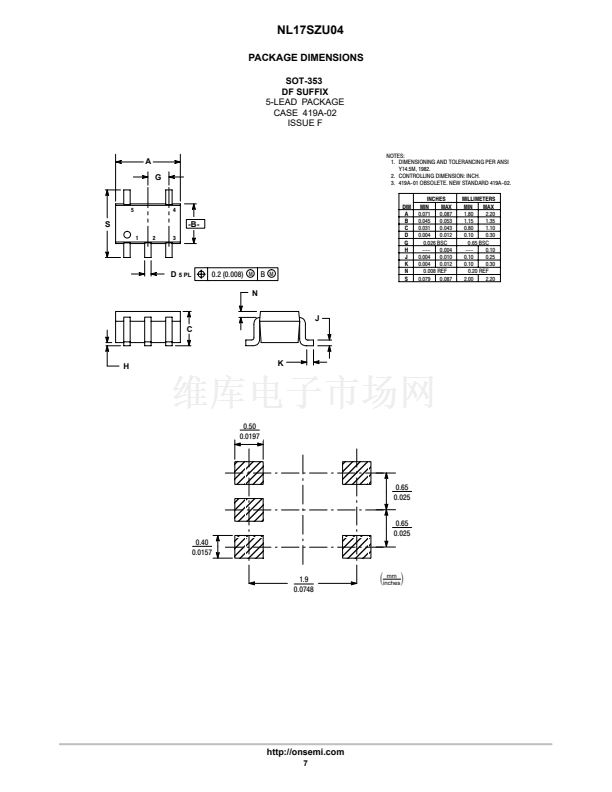

SOT-353/SC70-5/SC-88A
DF SUFFIX
CASE 419A
d = Date Code
5
1
5
L6
d
NC
1
5
V
CC
A
2
5
1

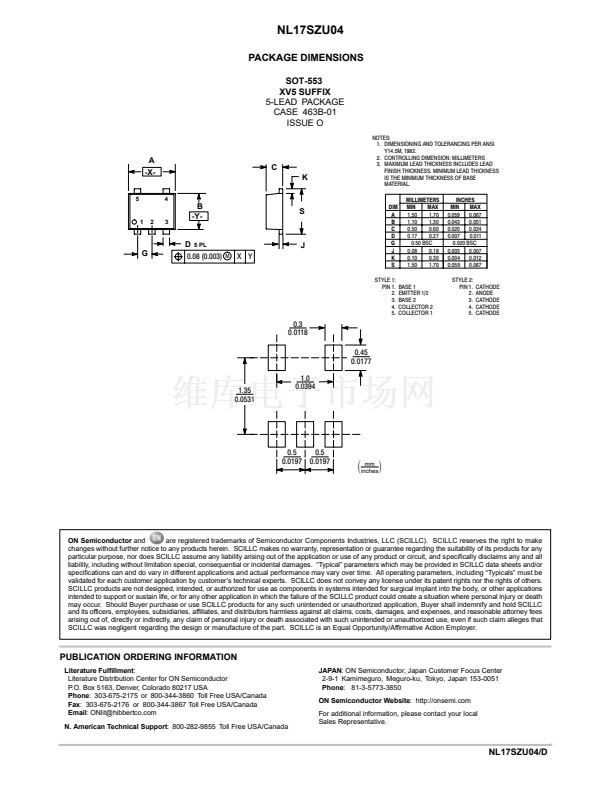

SOT-553
XV5 SUFFIX
CASE 463B
L6
D
1
L6 D
GND
3
4
Y
Figure 1. Pinout
(Top View)
= Device Marking
= One Digit Date Code
PIN ASSIGNMENT
A
1
Y
Pin
1
2
3
4
5
Function
NC
A
GND
Y
V
CC
Figure 2. Logic Symbol
FUNCTION TABLE
Output
Input
A
L
H
Y=A
Y
H
L

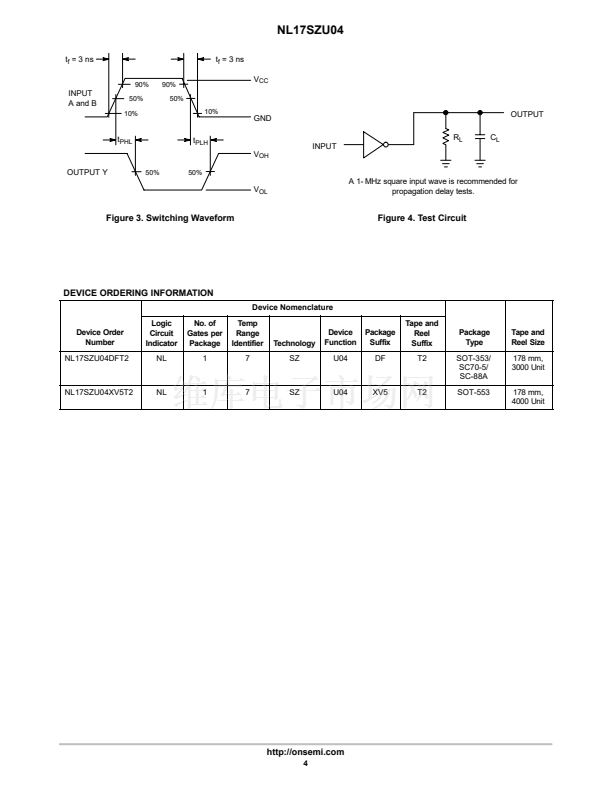

ORDERING INFORMATION
See detailed ordering and shipping information in the package
dimensions section on page 4 of this data sheet.
漏
Semiconductor Components Industries, LLC, 2003
1
February, 2003 - Rev. 3
Publication Order Number:
NL17SZU04/D
