Tiny SC鈥?0/SC鈥?8A Package
Source/Sink
$16
mA at 4.5 V VCC
Over鈥揤oltage Tolerant Inputs and Outputs
Pin For Pin with NC7SZU04
Chip Complexity: FETs = L6
5
http://onsemi.com
MARKING
DIAGRAMS
1
NC
1
5
VCC
SC70鈥?/SC鈥?8A/SOT鈥?53
DF SUFFIX
CASE 419A
d = Date Code
L6d
Pin 1
A
2
GND
3
4
Y

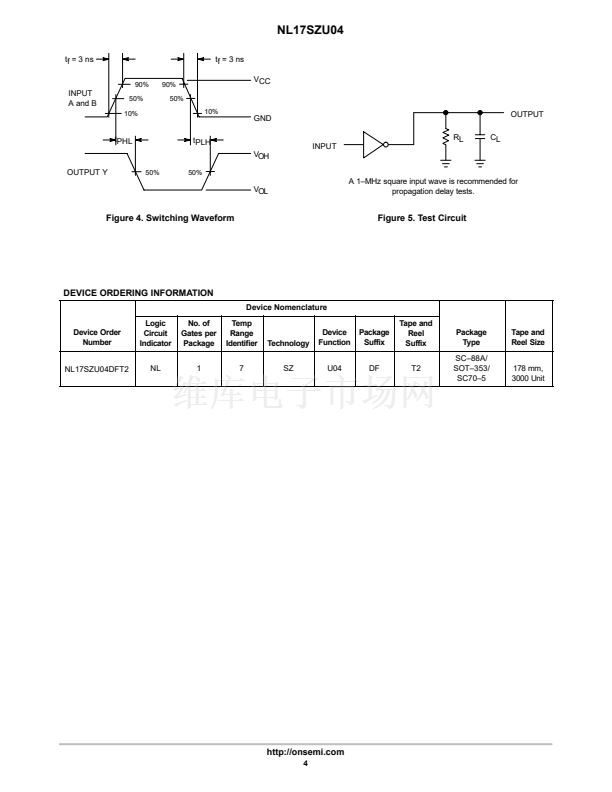

ORDERING INFORMATION

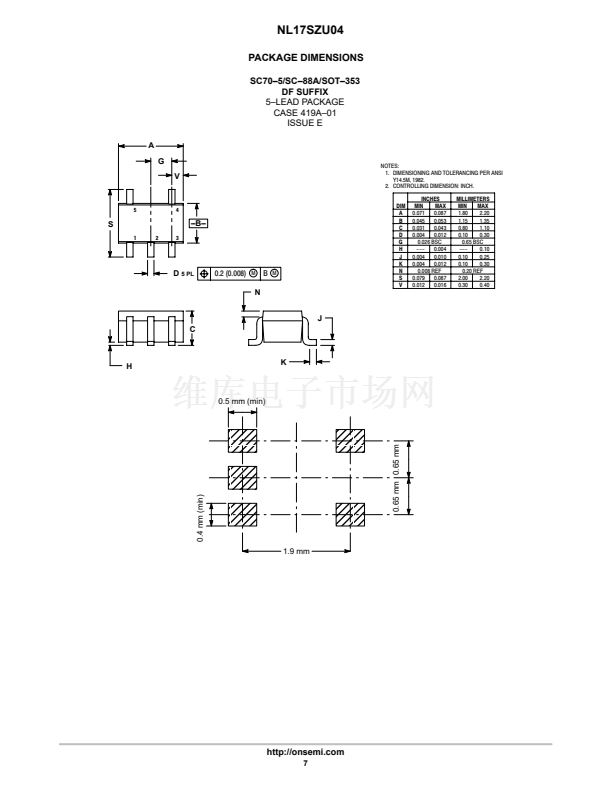

See detailed ordering and shipping information in the package
dimensions section on page 4 of this data sheet.
Figure 1. Pinout
(Top View)
A
1
Y
Figure 2. Logic Symbol
PIN ASSIGNMENT
Pin
1
2
3
4
5
Function
NC
A
GND
Y
VCC
FUNCTION TABLE
Input
Output
Y=A
A
L
H
Y
H
L
漏
Semiconductor Components Industries, LLC, 2001
1
October, 2001 鈥?Rev. 0
Publication Order Number:
NL17SZU04/D
