NL17SZ17/D Datasheet

  • NL17SZ17/D

  • Single Non-Inverting Buffer with Schmitt Trigger

  • 86.53KB

  • 8頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

NL17SZ17
Single Non鈭捍nverting Buffer
with Schmitt Trigger
The NL17SZ17 is a single Non-inverting Schmitt Trigger Buffer in
two tiny footprint packages. The device performs much as LCX
multi-gate products in speed and drive.
http://onsemi.com
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Tiny SOT- 353 and SOT- 553 Packages
Source/Sink 24 mA at 3.0 Volts
Over-Voltage Tolerant Inputs and Outputs
Chip Complexity: FETs = 20
Designed for 1.65 V to 5.5 V V
CC
Operation
MARKING
DIAGRAMS
5
1
SOT-353/SC70-5/SC-88A
DF SUFFIX
CASE 419A
d = Date Code
1
5
LX
d
NC
1
5
V
CC
5
5
LX D
1
A
2
1
SOT-553
XV5 SUFFIX
CASE 463B
4
Y
LX
D
GND
3
= Device Marking
= One Digit Date Code

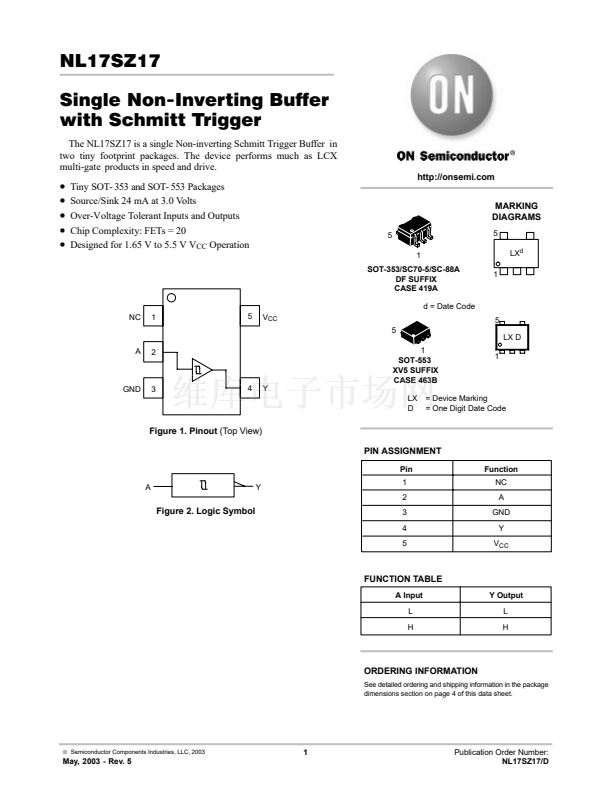

Figure 1. Pinout
(Top View)
PIN ASSIGNMENT
Pin
A
Y
1
2
Function
NC
A
GND
Y
V
CC
Figure 2. Logic Symbol
3
4
5
FUNCTION TABLE
A Input
L
H
Y Output
L
H
ORDERING INFORMATION
See detailed ordering and shipping information in the package
dimensions section on page 4 of this data sheet.
漏
Semiconductor Components Industries, LLC, 2003
1
May, 2003 - Rev. 5
Publication Order Number:
NL17SZ17/D
