NL17SZ00/D Datasheet

  • NL17SZ00/D

  • Single 2-Input NAND Gate

  • 8頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

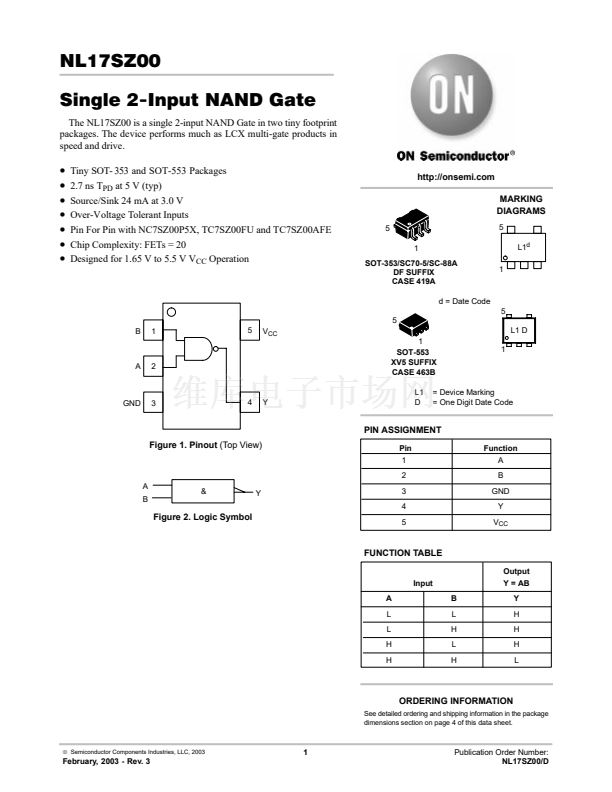

NL17SZ00
Single 2鈭捍nput NAND Gate
The NL17SZ00 is a single 2-input NAND Gate in two tiny footprint
packages. The device performs much as LCX multi-gate products in
speed and drive.
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Tiny SOT- 353 and SOT-553 Packages
2.7 ns T
PD
at 5 V (typ)
Source/Sink 24 mA at 3.0 V
Over-Voltage Tolerant Inputs
Pin For Pin with NC7SZ00P5X, TC7SZ00FU and TC7SZ00AFE
Chip Complexity: FETs = 20
Designed for 1.65 V to 5.5 V V
CC
Operation
http://onsemi.com
MARKING
DIAGRAMS
5
1
SOT-353/SC70-5/SC-88A
DF SUFFIX
CASE 419A
d = Date Code
5
5
1
5
L1
d
B
1
5
V
CC
1
SOT-553
XV5 SUFFIX
CASE 463B
L1
D
1
L1 D
A
2
GND
3
4
Y
= Device Marking
= One Digit Date Code
PIN ASSIGNMENT
Figure 1. Pinout
(Top View)
Pin
1
2
A
B
&
Y
3
4
Function
A
B
GND
Y
V
CC
Figure 2. Logic Symbol
5
FUNCTION TABLE
Output
Input
A
L
L
H
H
B
L
H
L
H
Y = AB
Y
H
H
H
L
ORDERING INFORMATION
See detailed ordering and shipping information in the package
dimensions section on page 4 of this data sheet.
漏
Semiconductor Components Industries, LLC, 2003
1
February, 2003 - Rev. 3
Publication Order Number:
NL17SZ00/D
