NL17SV32-D Datasheet

  • NL17SV32-D

  • Single Gate 2-Input OR Gate

  • 6頁

  • ONSEMI

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

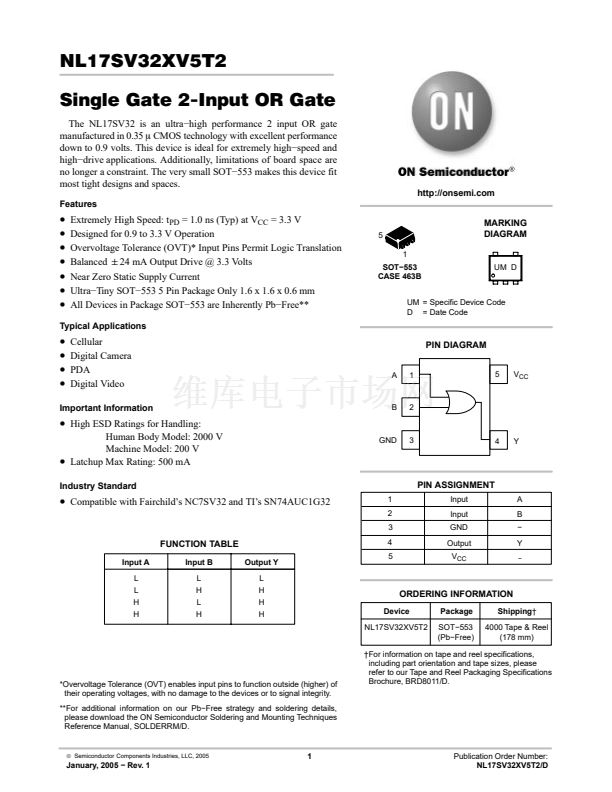

NL17SV32XV5T2
Single Gate 2鈭捍nput OR Gate
The NL17SV32 is an ultra鈭抙igh performance 2 input OR gate
manufactured in 0.35
m
CMOS technology with excellent performance
down to 0.9 volts. This device is ideal for extremely high鈭抯peed and
high鈭抎rive applications. Additionally, limitations of board space are
no longer a constraint. The very small SOT鈭?53 makes this device fit
most tight designs and spaces.
http://onsemi.com
Features
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Extremely High Speed: t
PD
= 1.0 ns (Typ) at V
CC
= 3.3 V
Designed for 0.9 to 3.3 V Operation
Overvoltage Tolerance (OVT)* Input Pins Permit Logic Translation
Balanced
"24
mA Output Drive @ 3.3 Volts
Near Zero Static Supply Current
Ultra鈭扵iny SOT鈭?53 5 Pin Package Only 1.6 x 1.6 x 0.6 mm
All Devices in Package SOT鈭?53 are Inherently Pb鈭扚ree**
5
1
SOT鈭?53
CASE 463B
MARKING
DIAGRAM
UM D
UM = Specific Device Code
D = Date Code
Typical Applications
Cellular
Digital Camera
PDA
Digital Video
PIN DIAGRAM
1
5
V
CC
A
Important Information
B
2
鈥?/div>
High ESD Ratings for Handling:
Human Body Model: 2000 V
Machine Model: 200 V
鈥?/div>
Latchup Max Rating: 500 mA
Industry Standard
GND
3
4
Y
PIN ASSIGNMENT
1
2
3
Input
Input
GND
Output
V
CC
A
B
鈭?/div>
Y
鈭?/div>
鈥?/div>
Compatible with Fairchild鈥檚 NC7SV32 and TI鈥檚 SN74AUC1G32
FUNCTION TABLE
Input A
L
L
H
H
Input B
L
H
L
H
Output Y
L
H
H
H
4
5
ORDERING INFORMATION
Device
NL17SV32XV5T2
Package
SOT鈭?53
(Pb鈭扚ree)
Shipping鈥?/div>
4000 Tape & Reel
(178 mm)
*Overvoltage Tolerance (OVT) enables input pins to function outside (higher) of
their operating voltages, with no damage to the devices or to signal integrity.
**For additional information on our Pb鈭扚ree strategy and soldering details,
please download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
鈥燜or information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
漏
Semiconductor Components Industries, LLC, 2005
1
January, 2005 鈭?Rev. 1
Publication Order Number:
NL17SV32XV5T2/D
