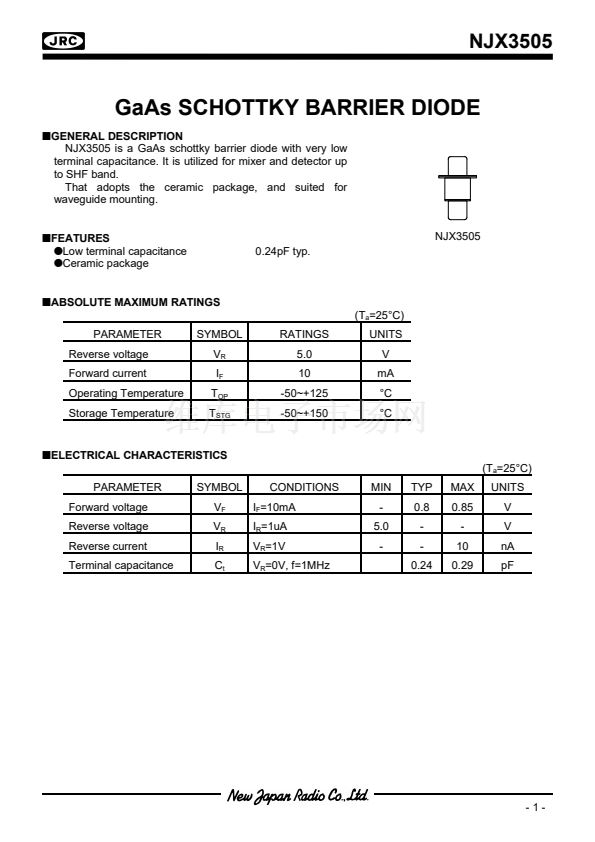

NJX3505

GaAs SCHOTTKY BARRIER DIODE

nGENERAL

DESCRIPTION

NJX3505 is a GaAs schottky barrier diode with very low

terminal capacitance. It is utilized for mixer and detector up

to SHF band.

That adopts the ceramic package, and suited for

waveguide mounting.

nFEATURES

lLow

terminal capacitance

lCeramic

package

nABSOLUTE

MAXIMUM RATINGS

(T

a

=25擄C)

PARAMETER

Reverse voltage

Forward current

Operating Temperature

Storage Temperature

SYMBOL

V

R

I

F

T

OP

T

STG

RATINGS

5.0

10

-50~+125

-50~+150

UNITS

V

mA

擄C

擄C

NJX3505

0.24pF typ.

nELECTRICAL

CHARACTERISTICS

(T

a

=25擄C)

PARAMETER

Forward voltage

Reverse voltage

Reverse current

Terminal capacitance

SYMBOL

V

F

V

R

I

R

C

t

CONDITIONS

I

F

=10mA

I

R

=1uA

V

R

=1V

V

R

=0V, f=1MHz

MIN

-

5.0

-

TYP

0.8

-

-

0.24

MAX

0.85

-

10

0.29

UNITS

V

V

nA

pF

-1-
