Advanced information

NJW1310

PRELIMINARY

AV SWITCH

sGENERAL

DESCRIPTION

The

NJW1310

is an Audio / Video switch for TV. All of

functions are controlled by I

2

C BUS interface.

The

NJW1310

includes 7-input 2-output Audio switches.

Also it includes 5-input 2-output Video switches, and 2-input

2-output YUV switches.

s

PACKAGE OUTLINE

NJW1310FC2

sFEATURES

q

Operating Voltage

q

7-Input 2-output Audio Switches

q

5-Input 2-output Video Switches

q

2-Input 2-output YUV Switches

q

Y/C MIX Circuit

q

S-Input Detection

q

Wide Range Video Amplifier

q

Audio Muting from External Pin

q

Wide Range Audio Amplifier

q

Includes Auxiliary DC Outputs

q

I

2

C BUS Interface

q

Bi-CMOS Technology

q

Package Outline

s

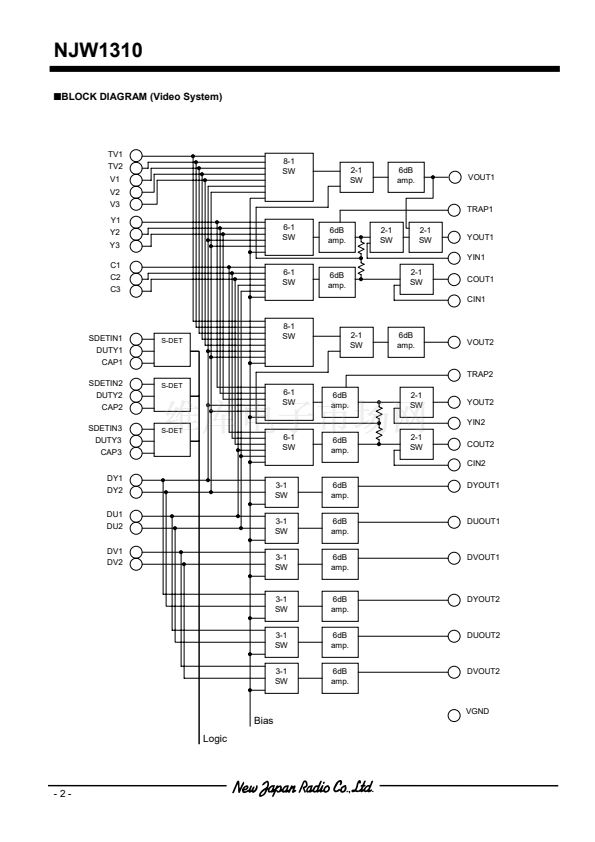

FUNCTION BLOCK DIAGRAM

8 to 13V

20MHz, -3dB

3Vrms typ.

QFP80

C-Video IN1

C-Video IN2

C-Video IN3

C-Video IN4

C-Video IN5

Composite/YC

Selector

C-Video/YC OUT1

C-Video/YC OUT2

YC IN1

YC IN2

YC IN3

YUV IN1

YUV IN2

YUV

Selector

YUV OUT1

YUV OUT2

Stereo Audio IN1

Audio

Selector

Stereo Audio IN7

Stereo Audio OUT1

Stereo Audio OUT2

-1-
