NJU7748 Datasheet

  • NJU7748

  • LOW DROPOUT VOLTAGE REGULATOR

  • 4頁

  • NJRC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

NJU7747/48
LOW DROPOUT VOLTAGE REGULATOR
GENERAL DISCRIPTION
NJU7747/48 is a low dropout voltage regulator with ON/OFF
control.
Advanced CMOS technology achieves ultra low quiescent current.
SC-82AB package and 0.1碌F small output capacitor make the
NJU7747/48 suitable for space conscious applications.
NJU7748 features shunt switch which improves turn off response
of output voltage when ON/OFF control is used.
FEATURES
Ultra Low quiescent Current
Iq=1.5碌A(chǔ) typ.(I
O
=0mA)
Output capacitor with 0.1uF ceramic capacitor
Output Current
I
O
(max.)=100mA
High Precision Output
V
O
鹵1.0%
Low Dropout Voltage
0.17V typ. (I
O
=40mA, V
O
=3V version)
With ON/OFF Control
(Active High)
With Output Shunt Switch
Only NJU7748
Internal Short Circuit Current Limit
CMOS Technology
Package Outline
SC-82AB
PIN CONFIGURATION
4
3
PACKAGE OUTLINE
NJU7747/48F
1
2
PIN FUNCTION
1.CONTROL
2.GND
3. V
OUT
4. V
IN
NJU7747/48F4
EQUIVALENT CIRCUIT
V
IN
V
OUT
V
IN
V
OUT
CONTROL
Output
Control
CONTROL
Output
Control
Vref
Current
Limit
Vref
Current
Limit
GND
GND
NJU7747
NJU7748
Ver.2004-12-22

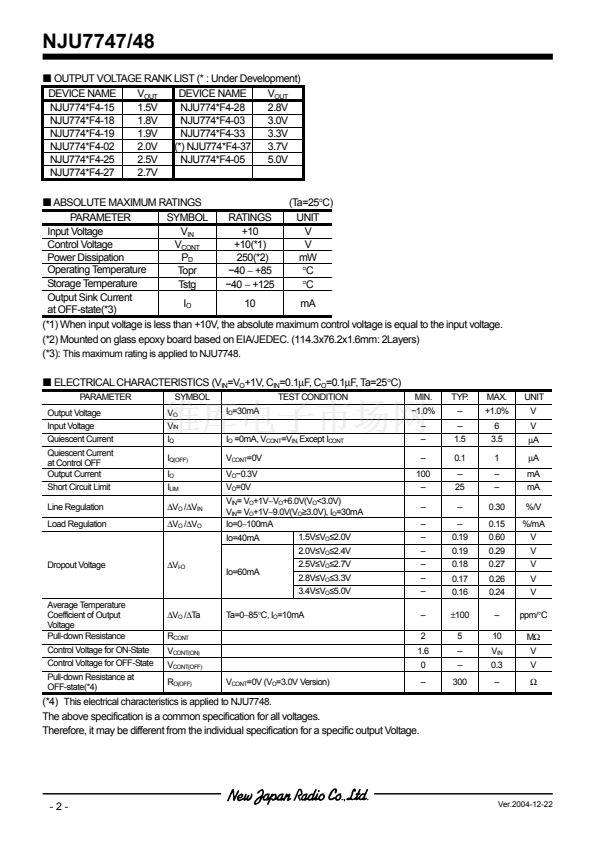

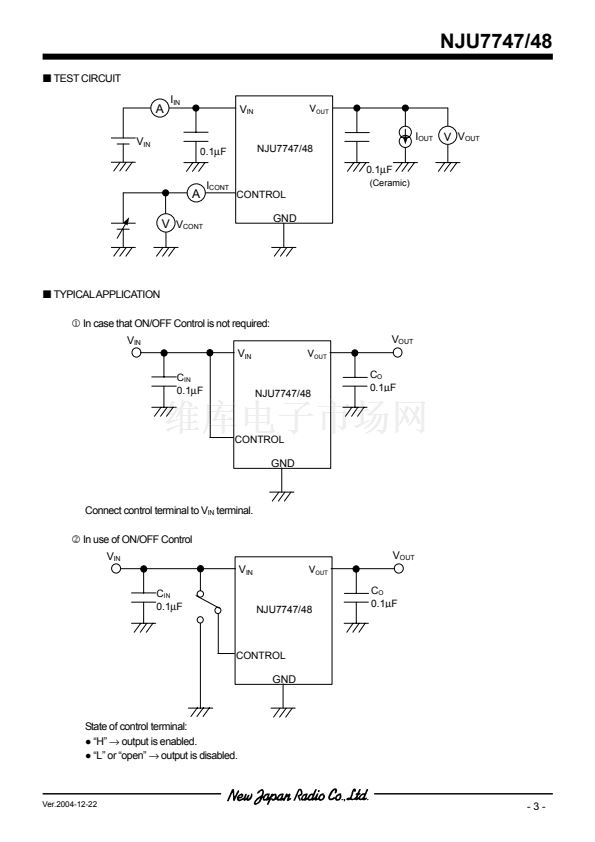

-1-
