NJU7325

Single-Phase DC Brushless Motor Driver IC

鈻?/div>

GENERAL DESCRIPTION

The NJU7325 is dual power amplifiers.

鈻?/div>

PACKAGE OUTLINE

It features MOS-FET output for better saturation characteristics.

It is suitable for small fan-motor applications.

NJU7325R/RB1

鈻?/div>

FEATURES

Single Supply

Operating Voltage

=2.4 to 5.5V

Low Operating Current

Low Saturation Output Voltage Vsat=鹵0.35V @Io=鹵250mA

C-MOS Technology

Package

VSP8, TVSP8

鈻?/div>

BLOCK DIAGRAM

1 : A OUTPUT

2 : A- INPUT

3 : A+ INPUT

4 : V

5 : B+ INPUT

6 : B- INPUT

7 : B OUTPUT

8 : V

Ach

Bch

鈻?/div>

ABSOLUTE MAXIMUM RATINGS

PARAMETER

Supply Voltage

Input Voltage

RATINGS

+7.0

-0.3 to V

+0.3

-40 to +85

-50 to +150

400

SYMBOL

(unit)

(V)

Vid (V)

Topr (擄C)

Tstg (擄C)

(mW)

(Ta=25擄C)

NOTE

Operating Temperature Range

Storage Temperature Range

Power Dissipation

VSP8/TVSP8 (Single)

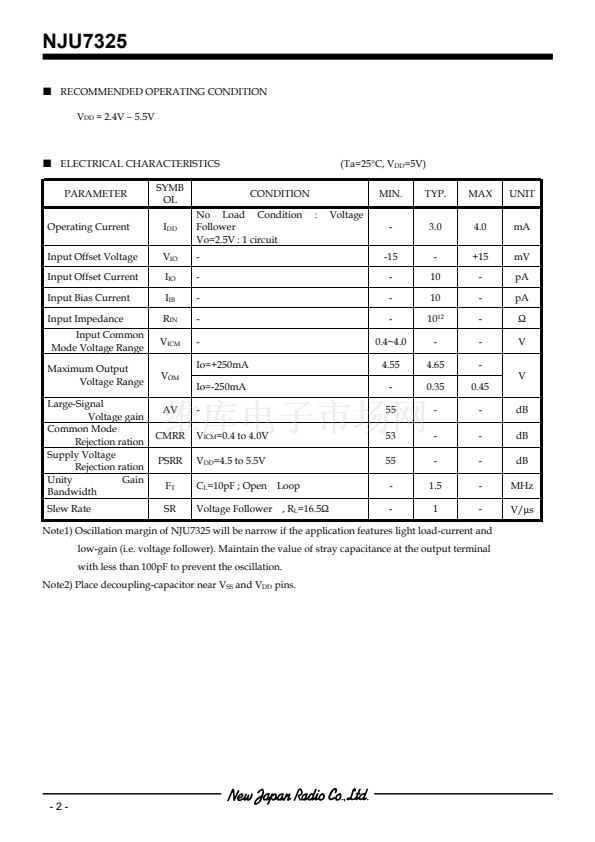

-1-
