NJU6635
PRELIMINARY
16-CHARACTER 2-LINE DOT MATRIX LCD
CONTROLLER DRIVER
s
GENERAL DESCRIPTION
The
NJU6635
is a 1Chip Dot Matrix LCD controller
driver for up to 16-character 2-line display with double
height function.
It contains microprocessor Interface circuits,
Instruction decoder controller, character generator
ROM/RAM and common and segment drivers.
The bleeder resistance generates for LCD Bias
voltage Internally.
The CR oscillator Incorporates C and R, therefore no
external components for oscillation are required.
The microprocessor Interface circuits which operate
2MHz frequency, can be connected directly to 4/8bit
microprocessor.
The character generator consists of 9,600 bits ROM
and 32 x 5 bits RAM. The standard version ROM is
coded with 240 characters including capital and small
letter fonts.
The 16-common and 80-segment drive up to
16-character 2-line LCD panel which divided two
common electrode blocks.
The rectangle outlook is very applicable to COG.
s

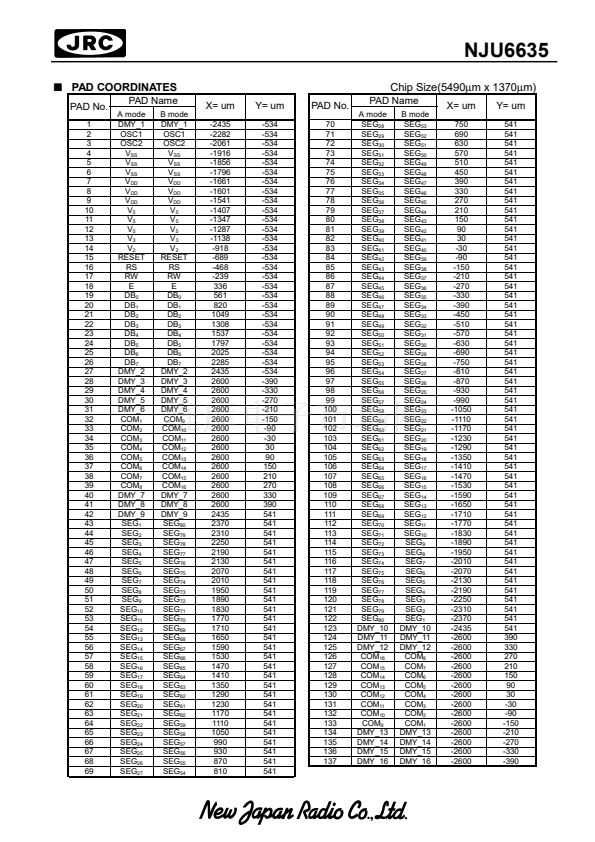

PACKAGE OUTLINE
NJU6635CH
s
FEATURES
q
q
q
q
q
q
q
q
q
q
16-character 2-line Dot Matrix LCD Controller Driver
4/8 Bit Microprocessor direct Interface
Display Data RAM
:32 x 8 bits : Maximum 16-character 2line Display
Character Generator ROM
:9,600 bits ; 240 characters for 5 x 8 dots
Character Generator RAM
:32 x 5 bits ; 4 Patterns( 5 x 8 dots)
Microprocessor direst accessing to Display Data RAM and Character Generator RAM
High Voltage LCD Driver
:16-common / 80-segment
Duty Ratio
:1/16 Duty
Maximum Display Characters ; 32 Characters
Useful Instruction Set
Clear Display, Returns Home, Display ON/OFF Cont, Cursor ON/OFF Cont, Display Blink, Cursor Shift,
Character Shift, Double Height Function.
Power On Reset / Hardware Reset Function
Oscillation Circuit on chip
Bleeder Resistance on chip
Low Power Consumption
Operating Voltage --- +5V
Package Outline --- Bumped Chip
C-MOS Technology
q
q
q
q
q
q
q
00/01/15
