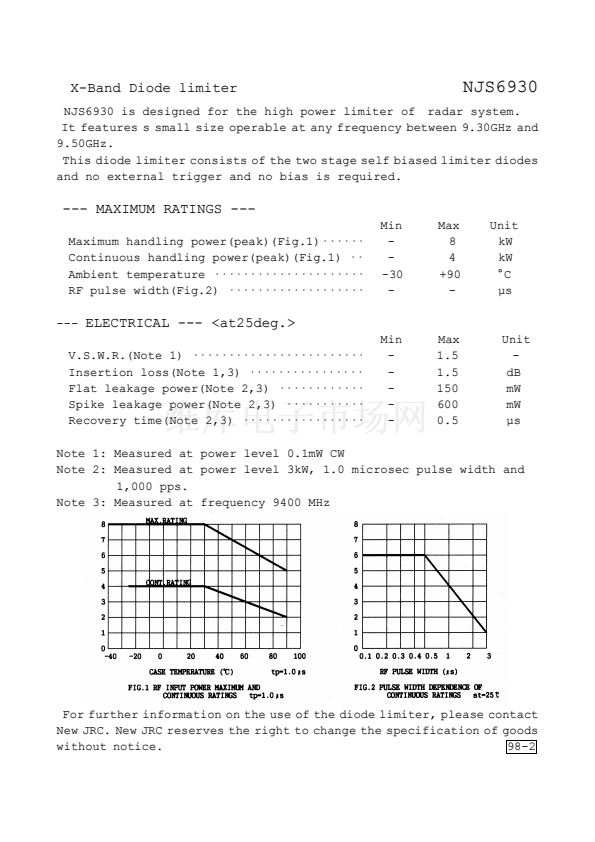

X-Band Diode limiter
NJS6930
NJS6930 is designed for the high power limiter of radar system.
It features s small size operable at any frequency between 9.30GHz and
9.50GHz.
This diode limiter consists of the two stage self biased limiter diodes
and no external trigger and no bias is required.
--- MAXIMUM RATINGS ---
Maximum handling power(peak)(Fig.1)路路路路路路
Continuous handling power(peak)(Fig.1) 路路
Ambient temperature 路路路路路路路路路路路路路路路路路路路路路
RF pulse width(Fig.2) 路路路路路路路路路路路路路路路路路路路
---
ELECTRICAL --- <at25deg.>
V.S.W.R.(Note 1) 路路路路路路路路路路路路路路路路路路路路路路路路
Insertion loss(Note 1,3) 路路路路路路路路路路路路路路路路
Flat leakage power(Note 2,3) 路路路路路路路路路路路路
Spike leakage power(Note 2,3) 路路路路路路路路路路路
Recovery time(Note 2,3) 路路路路路路路路路路路路路路路路路
Min
-
-
-
-
-
Max
1.5
1.5
150
600
0.5
Unit
-
dB
mW
mW
碌s
Min
-
-
-30
-
Max
8
4
+90
-
Unit
kW
kW
擄C
碌s
Note 1: Measured at power level 0.1mW CW
Note 2: Measured at power level 3kW, 1.0 microsec pulse width and
1,000 pps.
Note 3: Measured at frequency 9400 MHz
For further information on the use of the diode limiter, please contact
New JRC. New JRC reserves the right to change the specification of goods
without notice.
