NJM2670 Datasheet

  • NJM2670

  • DUAL H BRIDGE DRIVER

  • 8頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

NJM2670
DUAL H BRIDGE DRIVER
s
GENERAL DESCRIPTION

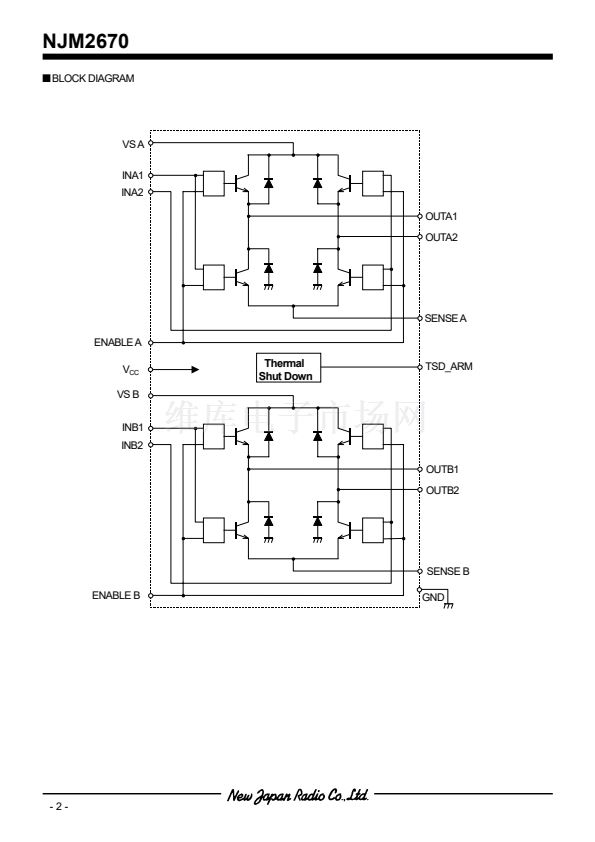

The NJM2670 is a general-purpose 60V dual H-bridge
drive IC. It consists of a pair of H-bridges, a thermal shut
down circuit and its alarm output. The alarm output can
detect application problems and the system reliability will be
significantly improved if monitored by Micro Processor.

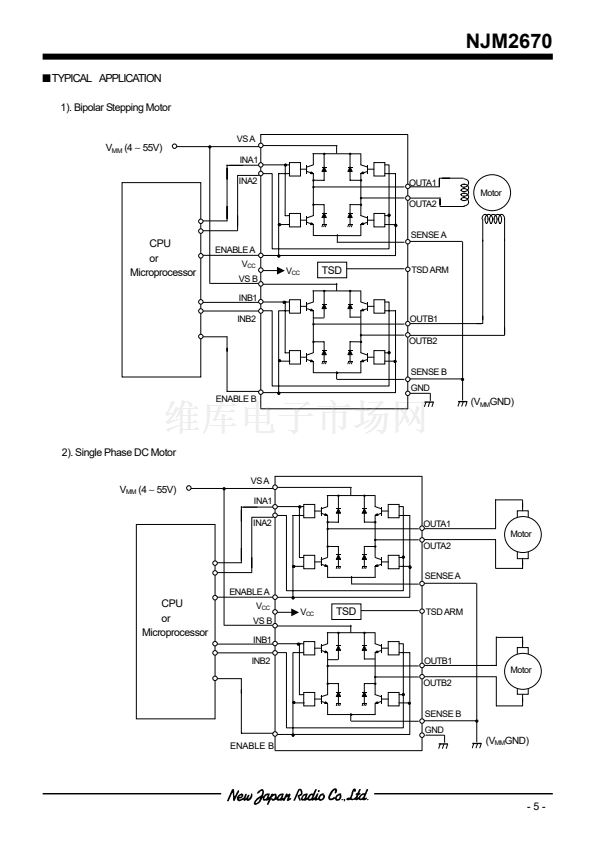

Therefore, it is suitable for two-phase stepper motor
application driven by microprocessor.
s
PACKAGE OUTLINE
NJM2670D2
NJM2670E3
s
FEATURES
鈥?/div>
Wide Voltage Range
鈥?/div>
Wide Range of Current Control
鈥?/div>
Thermal overload Protection
鈥?/div>
Package Outline
(4V to 60V)
(5 to 1500mA )
(DIP-22, EMP-24)
s
PIN CONNECTION
SENSE A
INA1
ENABLE A
OUTA1
GND
GND
INB1
ENABLE B
NC
OUTB2
SENSE B
DIP-22
VS A
VCC
INA2
OUTA2
GND
GND
INB2
TSD ARM
NC
OUTB2
VS B
SENSE A
INA1
ENABLE A
NC
OUTA
GND
GND
INB1
ENABLE B
NC
OUTB2
SENSE B
EMP-24
VS A
VCC
INA2
NC
OUTA2
GND
GND
INB2
TSD ARM
NC
OUTB2
VS B
-1-
