NJL69V000A
INFRARED REMOTE CONTROL RECEIVER
GENERAL DESCRIPTION
NJL69V000A series are small and high performance receiving devices for infrared remote control system.
The pulse width of NJL69V000A series is stable relating to commander鈥檚 power or distance between transmitter and
receiver. NJL69V000A series have long lead to meet the various applications.
FEATURES
1. Small molding package
2. Long lead
24mm
3. Line-up for various center carrier frequencies
APPLICATIONS
1. AV instruments such as Audio, TV, VCR, CD, MD, DVD, STB etc.
2. Home application such as Air-conditioner, Fan etc.
3. The other equipments with wireless remote control.
LINE-UP
Carrier Frequency
Fo=36 kHz
NJL69V360A
36.7 kHz
NJL69V367A
38 kHz
NJL69V380A
40 kHz
NJL69V400A
56.8 kHz
NJL69V568A
Regarding the other frequencies or packages, please contact to New JRC individually.
BLOCK DIAGRAM
Vcc
Head Amp
2nd Amp
3rd Amp
Comparator
22K
Vout
B.P.F.
PD
ABLC
Detector
GND
ABSOLUTE MAXIMUM RATINGS
(Ta=25擄C)
PARAMETER
Supply Voltage
Operating Temperature Range
Storage Temperature Range
Soldering Temperature
SYMBOL
V
cc
T
opr
T
stg
T
sol
RATINGS
6.3
-30 to +85
-40 to +85
260 (5sec. 4.0mm from mold body)
UNIT
V
擄C
擄C

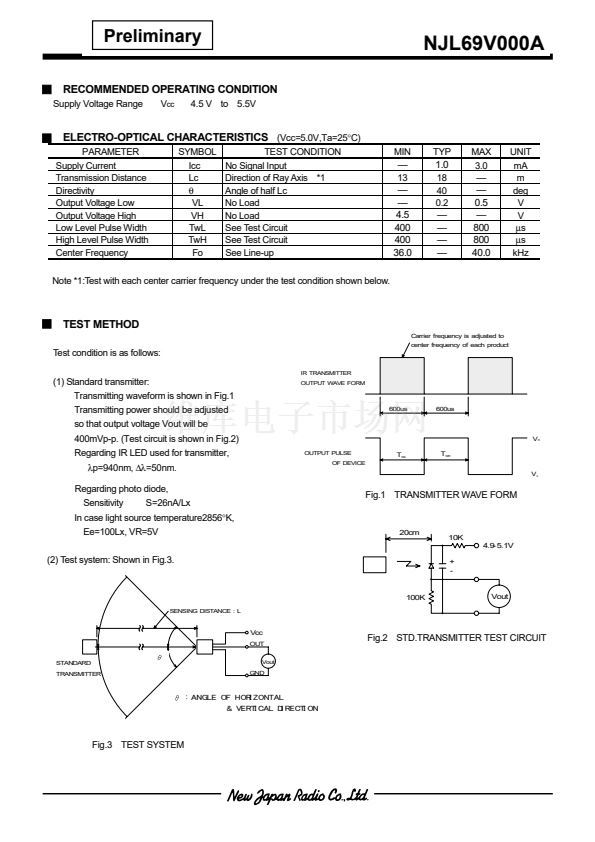

擄C
