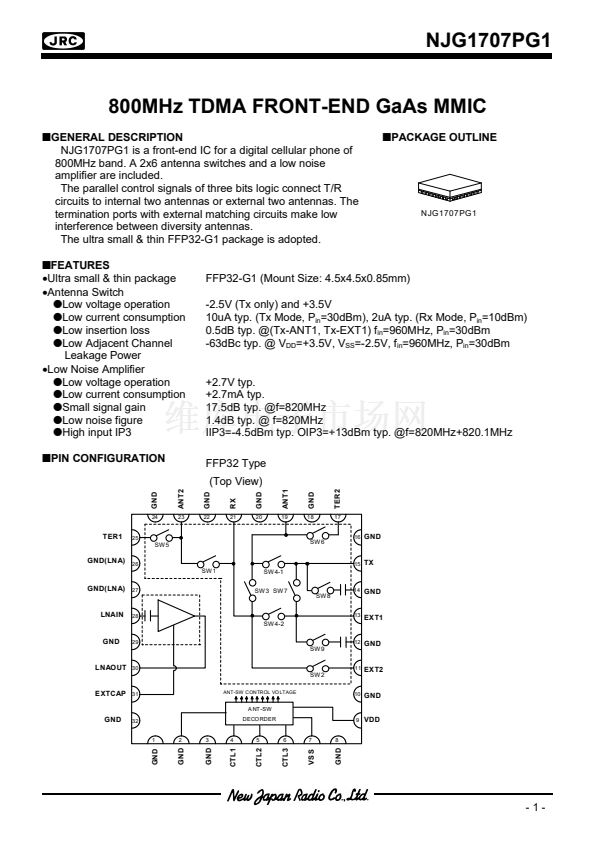

NJG1707PG1

800MHz TDMA FRONT-END GaAs MMIC

nGENERAL

DESCRIPTION

NJG1707PG1 is a front-end IC for a digital cellular phone of

800MHz band. A 2x6 antenna switches and a low noise

amplifier are included.

The parallel control signals of three bits logic connect T/R

circuits to internal two antennas or external two antennas. The

termination ports with external matching circuits make low

interference between diversity antennas.

The ultra small & thin FFP32-G1 package is adopted.

nFEATURES

鈥ltra

small & thin package

鈥ntenna

Switch

lLow

voltage operation

lLow

current consumption

lLow

insertion loss

lLow

Adjacent Channel

Leakage Power

鈥ow

Noise Amplifier

lLow

voltage operation

lLow

current consumption

lSmall

signal gain

lLow

noise figure

lHigh

input IP3

nPIN

CONFIGURATION

AN T2

GND

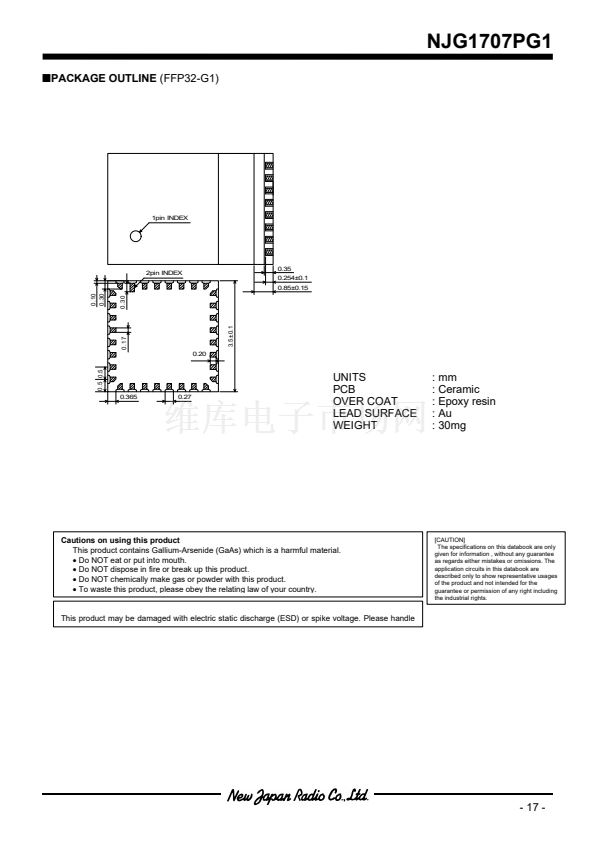

nPACKAGE

OUTLINE

NJG1707PG1

FFP32-G1 (Mount Size: 4.5x4.5x0.85mm)

-2.5V (Tx only) and +3.5V

10uA typ. (Tx Mode, P

in

=30dBm), 2uA typ. (Rx Mode, P

in

=10dBm)

0.5dB typ. @(Tx-ANT1, Tx-EXT1) f

in

=960MHz, P

in

=30dBm

-63dBc typ. @ V

DD

=+3.5V, V

SS

=-2.5V, f

in

=960MHz, P

in

=30dBm

+2.7V typ.

+2.7mA typ.

17.5dB typ. @f=820MHz

1.4dB typ. @ f=820MHz

IIP3=-4.5dBm typ. OIP3=+13dBm typ. @f=820MHz+820.1MHz

FFP32 Type

(Top View)

AN T1

TE R2

17

GND

GND

24

23

22

21

20

19

18

TER1

GND(LN A)

GND

RX

25

SW 5

26

SW 6

16

GND

15

TX

SW 1

SW 4-1

SW 3 SW 7

14

GND(LN A)

27

SW 8

13

GND

LNAIN

28

SW 4-2

EXT1

GND

29

12

SW 9

GND

LNAOUT

30

11

SW 2

EXT2

EXTCAP

31

ANT-SW CONTROL VO LTAGE

10

GND

VDD

A NT-SW

GND

32

1

DECO RDER

9

2

3

4

5

6

7

8

GND

GN D

GN D

CTL1

CTL2

CTL3

GN D

VSS

-1-
