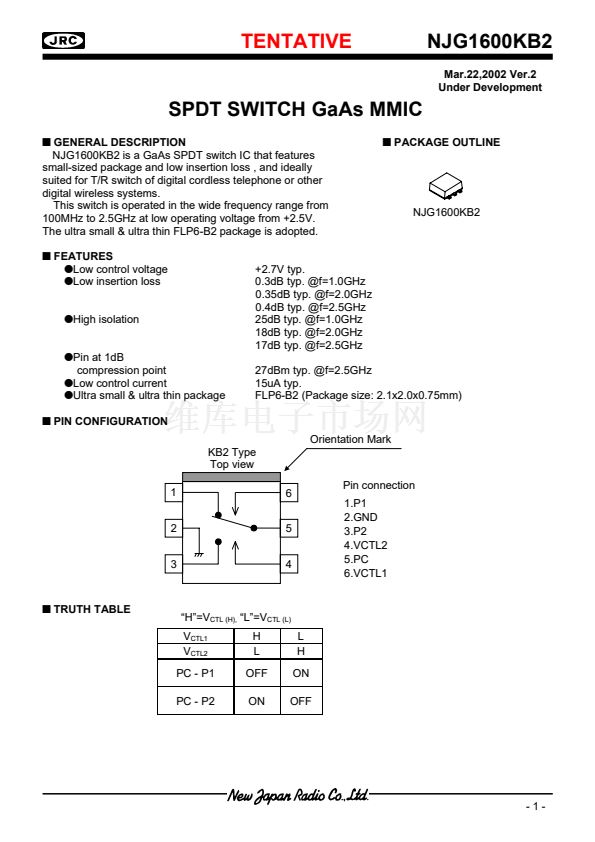

TENTATIVE

SPDT SWITCH GaAs MMIC

GENERAL DESCRIPTION

NJG1600KB2 is a GaAs SPDT switch IC that features

small-sized package and low insertion loss , and ideally

suited for T/R switch of digital cordless telephone or other

digital wireless systems.

This switch is operated in the wide frequency range from

100MHz to 2.5GHz at low operating voltage from +2.5V.

The ultra small & ultra thin FLP6-B2 package is adopted.

FEATURES

Low control voltage

Low insertion loss

NJG1600KB2

Mar.22,2002 Ver.2

Under Development

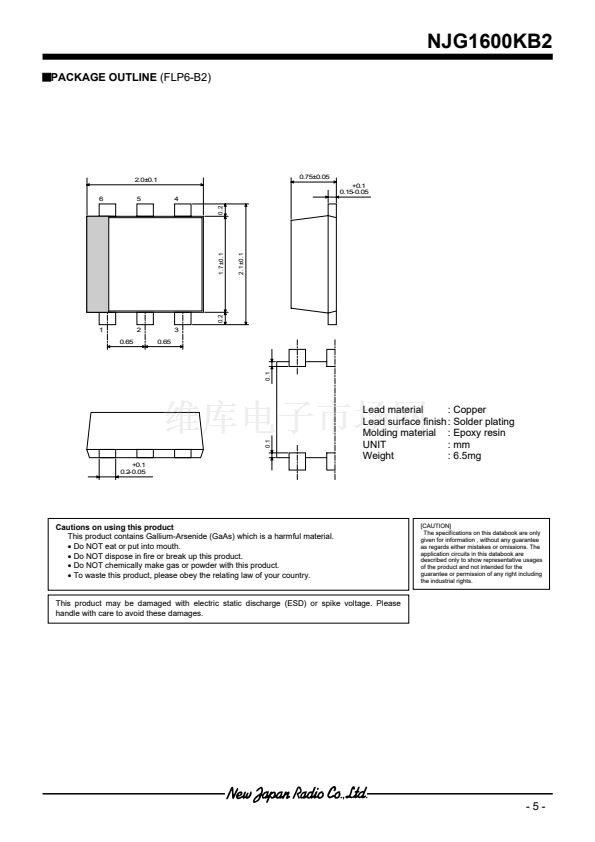

PACKAGE OUTLINE

NJG1600KB2

High isolation

+2.7V typ.

0.3dB typ. @f=1.0GHz

0.35dB typ. @f=2.0GHz

0.4dB typ. @f=2.5GHz

25dB typ. @f=1.0GHz

18dB typ. @f=2.0GHz

17dB typ. @f=2.5GHz

27dBm typ. @f=2.5GHz

15uA typ.

FLP6-B2 (Package size: 2.1x2.0x0.75mm)

Pin at 1dB

compression point

Low control current

Ultra small & ultra thin package

PIN CONFIGURATION

Orientation Mark

KB2 Type

Top view

1

2

3

6

5

4

Pin connection

1.P1

2.GND

3.P2

4.VCTL2

5.PC

6.VCTL1

TRUTH TABLE

鈥淗鈥?V

CTL (H),

鈥淟鈥?V

CTL (L)

V

CTL1

V

CTL2

PC - P1

PC - P2

H

L

OFF

ON

L

H

ON

OFF

-1-
