NJG1535HD3 Datasheet

  • NJG1535HD3

  • SPDT SWITCH GaAs MMIC

  • 12頁

  • NJRC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

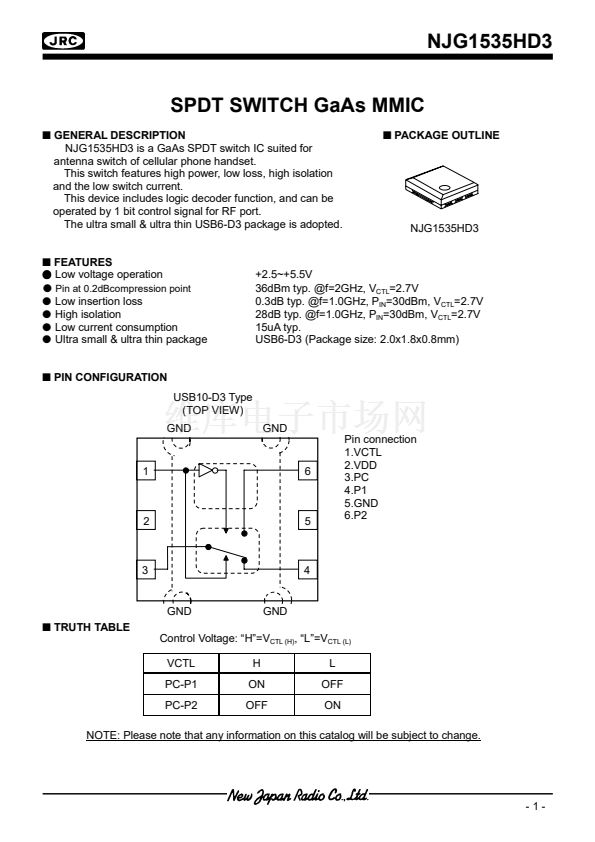

NJG1535HD3
SPDT SWITCH GaAs MMIC
s
GENERAL DESCRIPTION
NJG1535HD3 is a GaAs SPDT switch IC suited for
antenna switch of cellular phone handset.
This switch features high power, low loss, high isolation
and the low switch current.
This device includes logic decoder function, and can be
operated by 1 bit control signal for RF port.
The ultra small & ultra thin USB6-D3 package is adopted.
s
FEATURES
q
Low voltage operation
q
Pin at 0.2dBcompression point
q
Low insertion loss
q
High isolation
q
Low current consumption
q
Ultra small & ultra thin package
s
PIN CONFIGURATION
USB10-D3 Type
(TOP VIEW)
GND
GND
Pin connection
1.VCTL
2.VDD
3.PC
4.P1
5.GND
6.P2
s

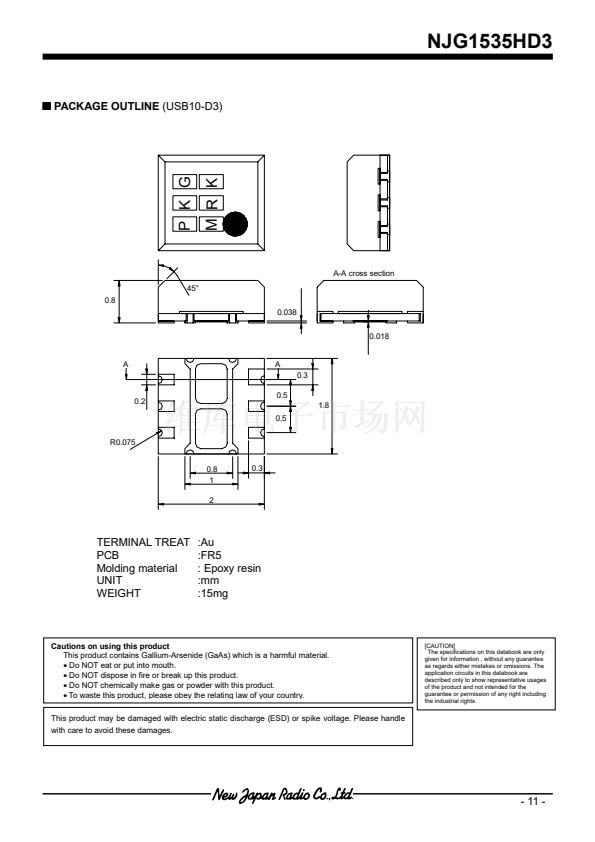

PACKAGE OUTLINE
NJG1535HD3
+2.5~+5.5V
36dBm typ. @f=2GHz, V
CTL
=2.7V
0.3dB typ. @f=1.0GHz, P
IN
=30dBm, V
CTL
=2.7V
28dB typ. @f=1.0GHz, P
IN
=30dBm, V
CTL
=2.7V
15uA typ.
USB6-D3 (Package size: 2.0x1.8x0.8mm)
1
6
2
5
3
4
GND
s
TRUTH TABLE
GND
Control Voltage: 鈥淗鈥?V
CTL (H)
, 鈥淟鈥?V
CTL (L)
VCTL
PC-P1
PC-P2
H
ON
OFF
L
OFF
ON
NOTE: Please note that any information on this catalog will be subject to change.
-1-
