NJG1107HB3 Datasheet

  • NJG1107HB3

  • LOW NOISE AMPLIFIER GaAs MMIC

  • 186.57KB

  • 8頁

  • NJRC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

NJG1107HB3
LOW NOISE AMPLIFIER GaAs MMIC
nGENERAL
DESCRIPTION
NJG1107HB3 is a Low Noise Amplifier GaAs MMIC
designed for GPS This amplifier provides low noise figure,
high gain and high IP3 operated by single low positive power
supply.
This amplifier
includes internal self-bias circuit and input
DC blocking capacitor.
This amplifier can be tuned to wide frequency point
(1.5GHz~2.4GHz).
An ultra small and ultra thin package of
USB8-B3 is
adopted.
nFEATURES
lLow
voltage operation
lLow
current consumption
lHigh
small signal gain
lLow
noise figure
lHigh
Input IP3
lUltra
small & ultra thin package
nPIN
CONFIGURATION
HB3 Type
(Top View)

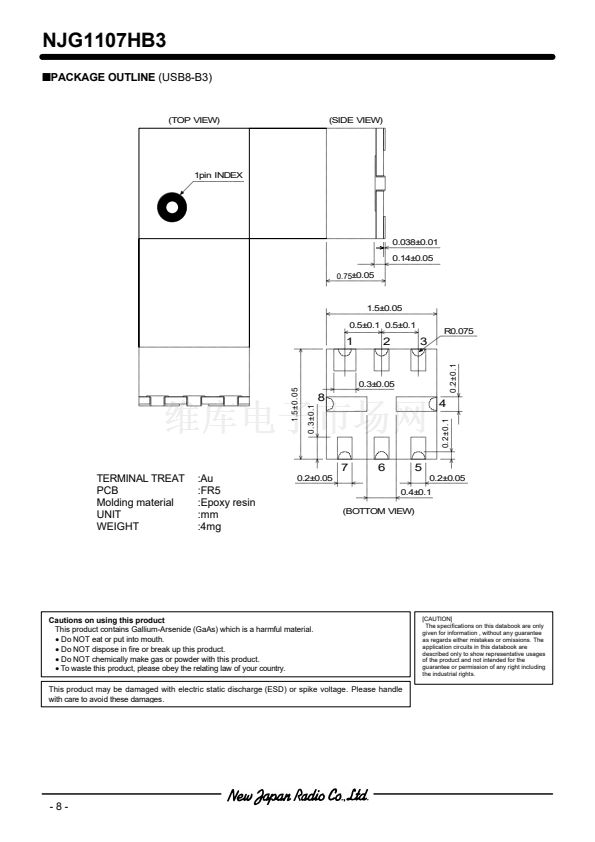

nPACKAGE
OUTLINE
NJG1107HB3
+2.7V typ.
2.5mA typ.
17dB typ. @f=1.575GHz
1.1dB typ. @f=1.575GHz
-4.0dBm typ. @f=1.575+1.5751GHz
USB8-B3 (Mount Size: 1.5x1.5x0.75mm)
4
5
3
6
AMP
2
Pin Connection
1.RF
OUT
2.N/C
3.EXTCAP
4.N/C
5.N/C
6.GND
7. RF
IN
8. N/C
7
8
1
Orientation Mark
Note: Specifications and description listed in this catalog are subject to change without prior notice.
-1-
