NJG1102F1

LOW NOISE AMPLIFIER GaAs MMIC

nGENERAL

DESCRIPTION

NJG1102F1 is a Low Noise Amplifier GaAs MMIC

designed for 800MHz band cellular phone handsets.

This amplifier provides low current consumption and

low noise figure at low supply voltage of 2.5V, low noise

of 1.5dB and low current consumption of 3mA at supply

voltage of 2.7V.

NJG1102F1 includes internal self-bias circuit and input

DC blocking capacitor with small package of MTP6-1.

nFEATURES

lLow

voltage operation

lLow

current consumption

lHigh

small signal gain

lLow

noise figure

lHigh

Input IP3

lHigh

output IP3

lPackage

nPIN

CONFIGURATION

nPACKAGE

OUTLINE

NJG1102F1

+2.7V typ.

3mA typ.

17dB typ. @f=820MHz

1.4dB typ. @f=820MHz

-3dBm typ. @f=820.0+820.1MHz

14dBm typ. @f=820.0+820.1MHz

MTP6-1 (Mount Size: 2.8 x 2.9 x 1.2mm)

F1 TYPE

(Top View)

1

6

Pin connection

2

5

1.LNAOUT

2.NC

3.GND

4.GND

5.GND

6.LNAIN

3

4

Note:

is package orientation mark.

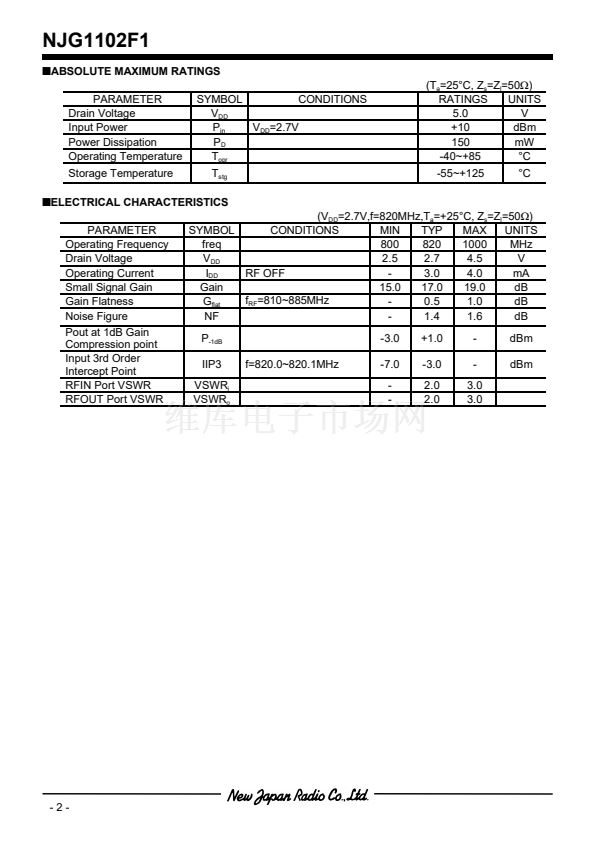

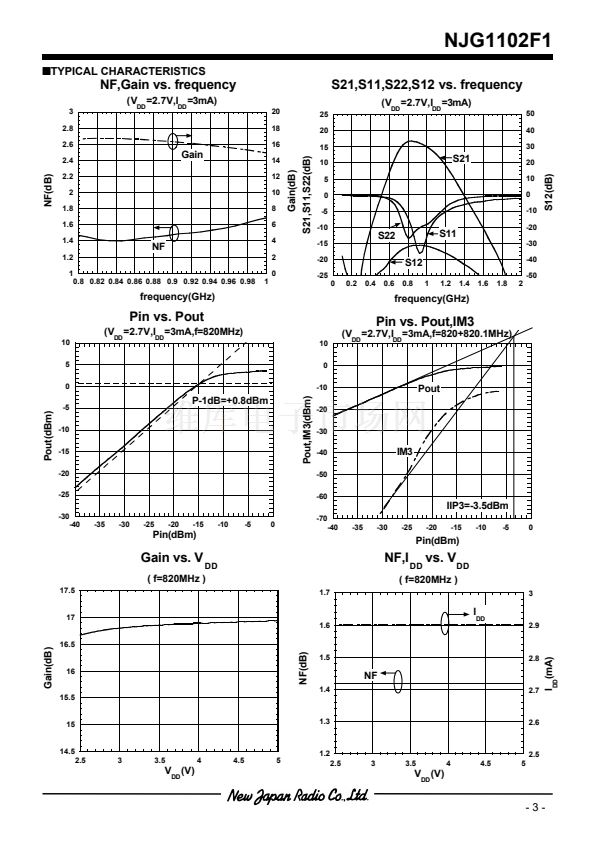

-1-
