Rugged AT-cut crystal construction
Miniature 5x7 ceramic package
Networking
Disc Drives
PCMCIA Cards
Portable and hand-held PCs
Available on tape & reel; 16mm tape,
1000pcs per reel
Drive Level:
Shunt Capacitance:
Aging @ 25擄C, First Year:
Mechanical:
Shock:
Solderability:
Vibration:
Solvent Resistance:
Resistance to Soldering Heat:
Environmental:
Gross Leak Test:
Fine Leak Test:
Thermal Shock:
Moisture Resistance:
Part Numbering Guide
鹵30, 鹵50 ppm
12 to 32pF or Series Resonance
70鈩?max, 6 to 10 MHz
40鈩?max, 10+ to 30 MHz
60鈩?max, 30+ to 44.999 MHz
50鈩?max, 45 to 80MHz
10碌W typ
5pF max
鹵3ppm typ, 鹵5ppm max
MIL-STD-883, Method 2002
MIL-STD-883, Method 2003
MIL-STD-883, Method 2007
MIL-STD-202, Method 215
MIL-STD 202, Method 210, Condition I or J
MIL-STD-883,
MIL-STD-883,
MIL-STD-883,
MIL-STD-883,
Method
Method
Method
Method
1014
1014
1011
1004
NxS 7 xxx x - 08.1920 -xx (T)
SaRonix Series Designator
NES = 2 pad glass frit
NLS = 4 pad glass frit
Package Type
7 ( 7 x 5 x 1.1 mm typ )
Calibration / Stability / Temp Range
NAD = 鹵30ppm / 鹵30ppm / -20 to +70擄C
NB = 鹵30ppm / 鹵50ppm / -20 to +70擄C
LB = 鹵50ppm / 鹵50ppm / -20 to +70擄C
GHE = 鹵30ppm / 鹵50ppm / -40 to +85擄C
HHE = 鹵50ppm / 鹵50ppm / -40 to +85擄C
Mode
1 = Fundamental
3 = 3rd Overtone
Packing Method
(T) = Tape & Reel, full reel
increments only, 1000pcs
Blank = Bulk
Load Capacitance
-
xx = Load Capacitance
Blank and no dash = Series Resonant
Frequency
Common Frequencies = 3 digit code, select code
from list on page 2
or
Custom Frequencies (in MHz) = 0x.xxxx, xx.xxxx, xxx.xxxx
(a zero is used in front of frequencies under 10 MHz)

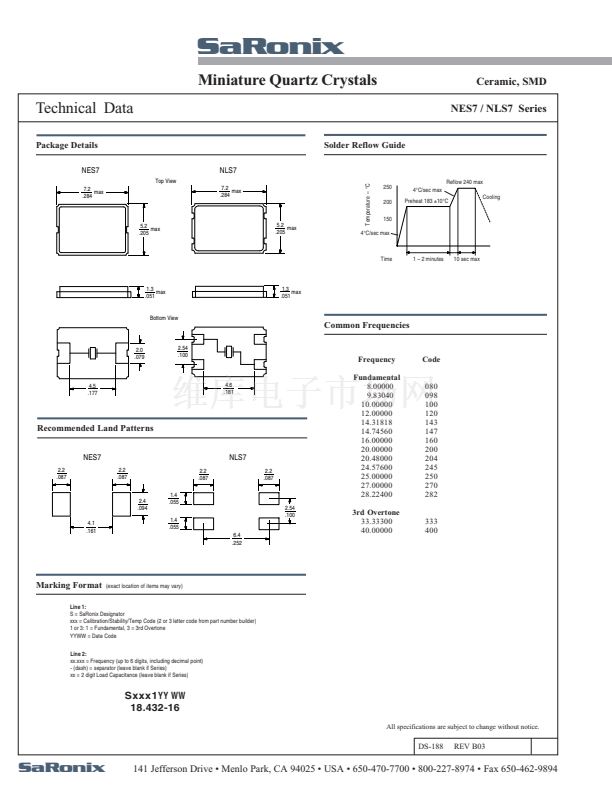

DS-188
REV B03
SaRonix
141 Jefferson Drive 鈥?Menlo Park, CA 94025 鈥?USA 鈥?650-470-7700 鈥?800-227-8974 鈥?Fax 650-462-9894
