Philips Semiconductors Linear Products
Product specification
Low voltage operational amplifier
NE/SA5230

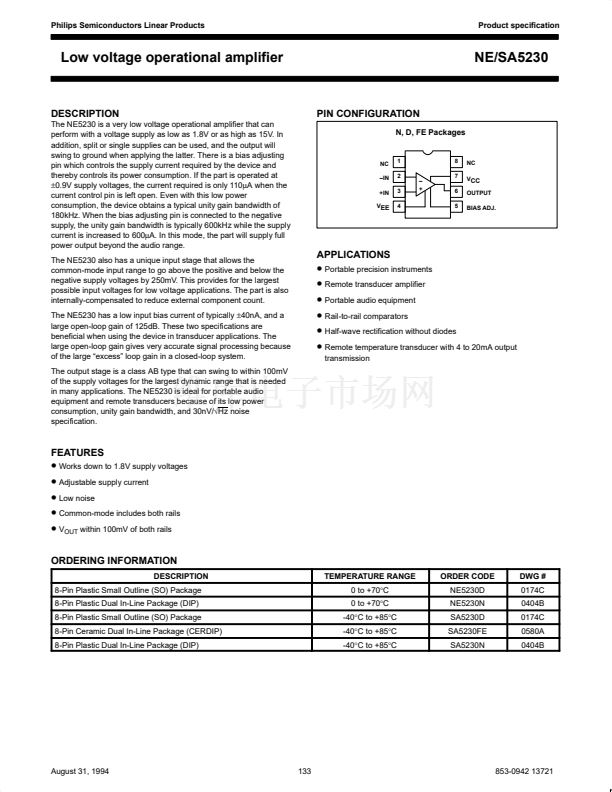

DESCRIPTION

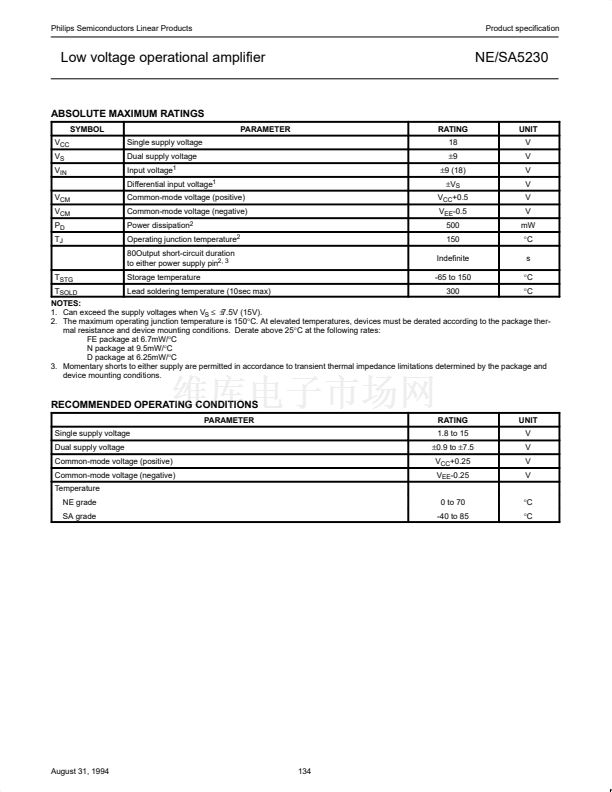

The NE5230 is a very low voltage operational amplifier that can
perform with a voltage supply as low as 1.8V or as high as 15V. In
addition, split or single supplies can be used, and the output will
swing to ground when applying the latter. There is a bias adjusting
pin which controls the supply current required by the device and
thereby controls its power consumption. If the part is operated at
鹵0.9V
supply voltages, the current required is only 110碌A(chǔ) when the
current control pin is left open. Even with this low power

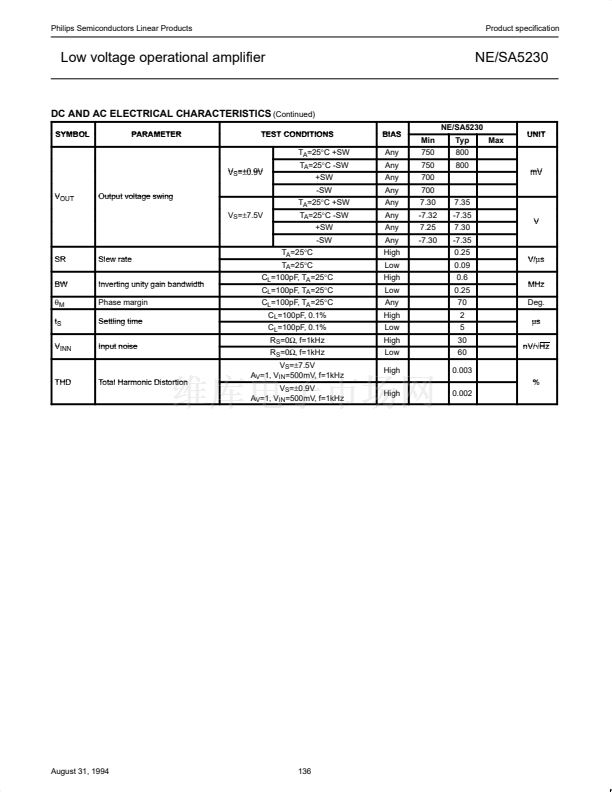

consumption, the device obtains a typical unity gain bandwidth of

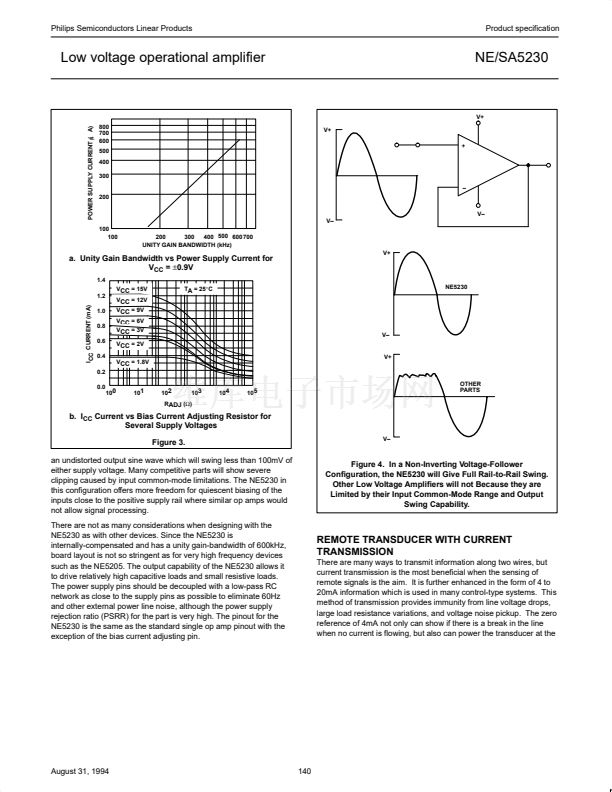

180kHz. When the bias adjusting pin is connected to the negative
supply, the unity gain bandwidth is typically 600kHz while the supply
current is increased to 600碌A(chǔ). In this mode, the part will supply full
power output beyond the audio range.

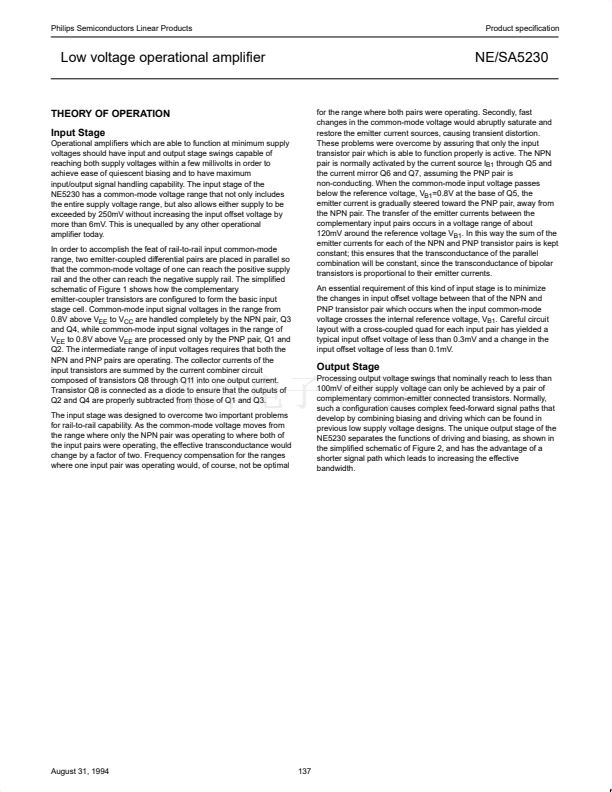

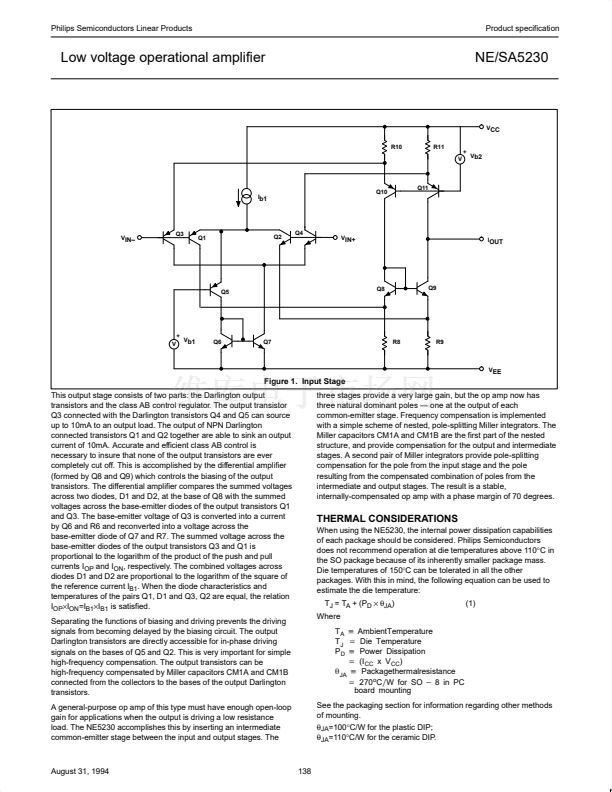

The NE5230 also has a unique input stage that allows the
common-mode input range to go above the positive and below the
negative supply voltages by 250mV. This provides for the largest
possible input voltages for low voltage applications. The part is also
internally-compensated to reduce external component count.

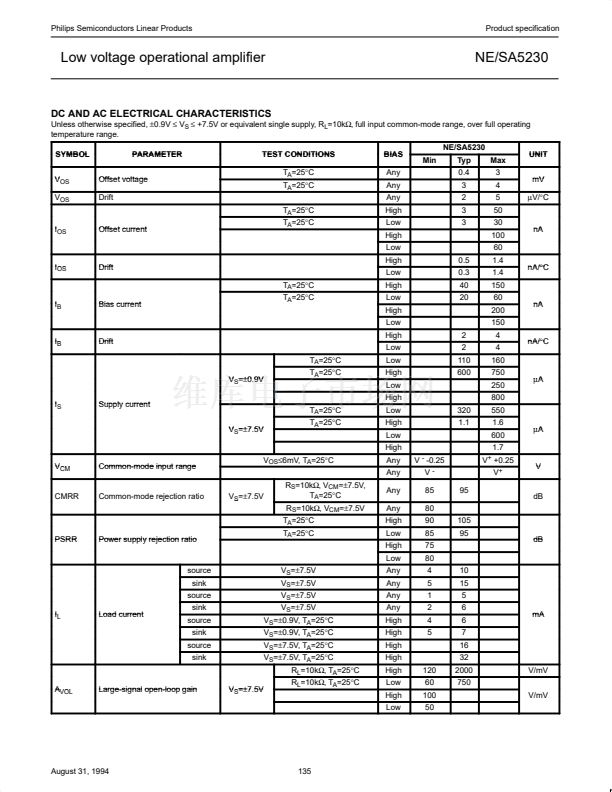

The NE5230 has a low input bias current of typically
鹵40nA,
and a
large open-loop gain of 125dB. These two specifications are
beneficial when using the device in transducer applications. The
large open-loop gain gives very accurate signal processing because
of the large 鈥渆xcess鈥?loop gain in a closed-loop system.

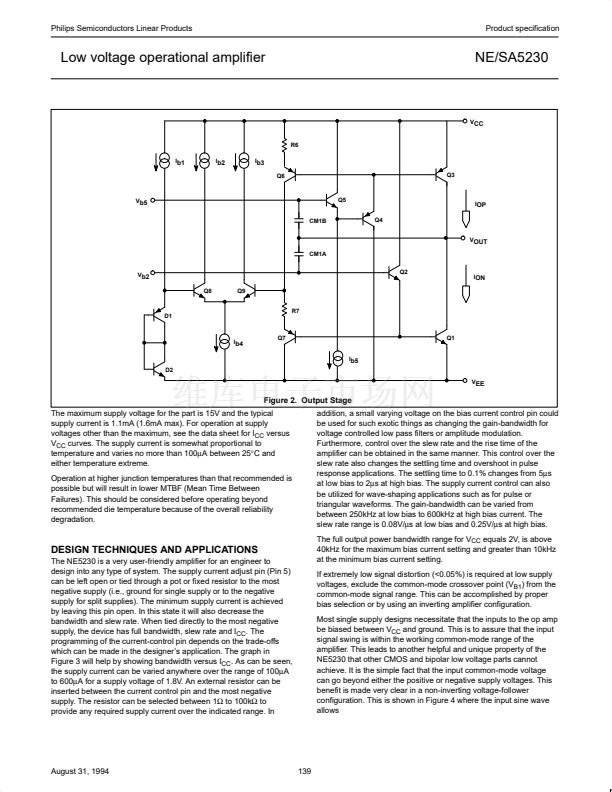

The output stage is a class AB type that can swing to within 100mV
of the supply voltages for the largest dynamic range that is needed
in many applications. The NE5230 is ideal for portable audio
equipment and remote transducers because of its low power
consumption, unity gain bandwidth, and 30nV/鈭欻z noise
specification.
PIN CONFIGURATION
N, D, FE Packages
NC
鈥揑N
+IN
V
EE
1
2
3
4
鈥?/div>
+
8
7
6
5
NC
V
CC
OUTPUT
BIAS ADJ.
APPLICATIONS
鈥?/div>
Portable precision instruments
鈥?/div>
Remote transducer amplifier
鈥?/div>
Portable audio equipment
鈥?/div>
Rail-to-rail comparators
鈥?/div>
Half-wave rectification without diodes
鈥?/div>

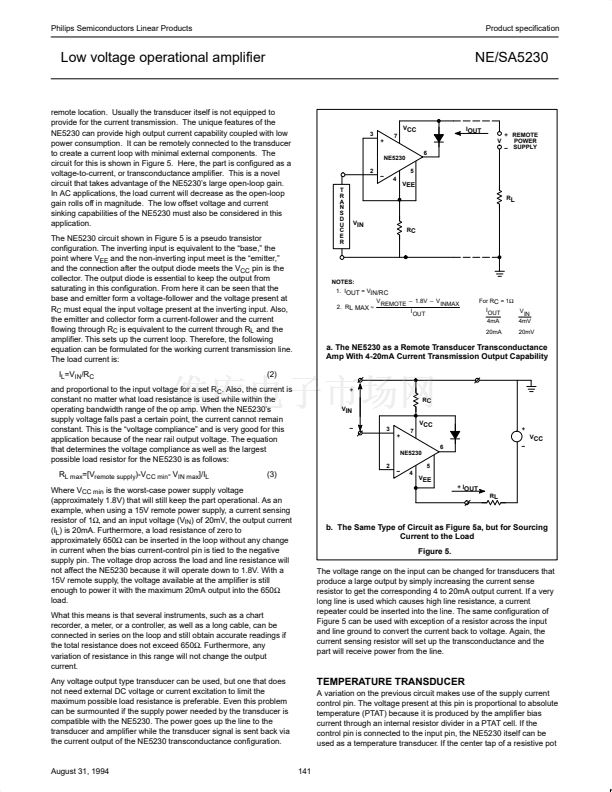

Remote temperature transducer with 4 to 20mA output
transmission
FEATURES
鈥?/div>
Works down to 1.8V supply voltages
鈥?/div>
Adjustable supply current
鈥?/div>
Low noise
鈥?/div>
Common-mode includes both rails
鈥?/div>
V
OUT
within 100mV of both rails
ORDERING INFORMATION
DESCRIPTION
8-Pin Plastic Small Outline (SO) Package
8-Pin Plastic Dual In-Line Package (DIP)
8-Pin Plastic Small Outline (SO) Package
8-Pin Ceramic Dual In-Line Package (CERDIP)
8-Pin Plastic Dual In-Line Package (DIP)
TEMPERATURE RANGE
0 to +70擄C
0 to +70擄C
-40擄C to +85擄C
-40擄C to +85擄C
-40擄C to +85擄C
ORDER CODE
NE5230D
NE5230N
SA5230D
SA5230FE
SA5230N
DWG #
0174C
0404B
0174C
0580A
0404B
August 31, 1994
133
853-0942 13721
