NDT453N Datasheet

IC型號：
NDT453N
PDF描述：
N-Channel Enhancement Mode Field Effect Transistor
文件大?。?/label>
227.89KB
PDF頁數：
10頁
芯片廠家：
FAIRCHILD

閱覽下載糾錯 0

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

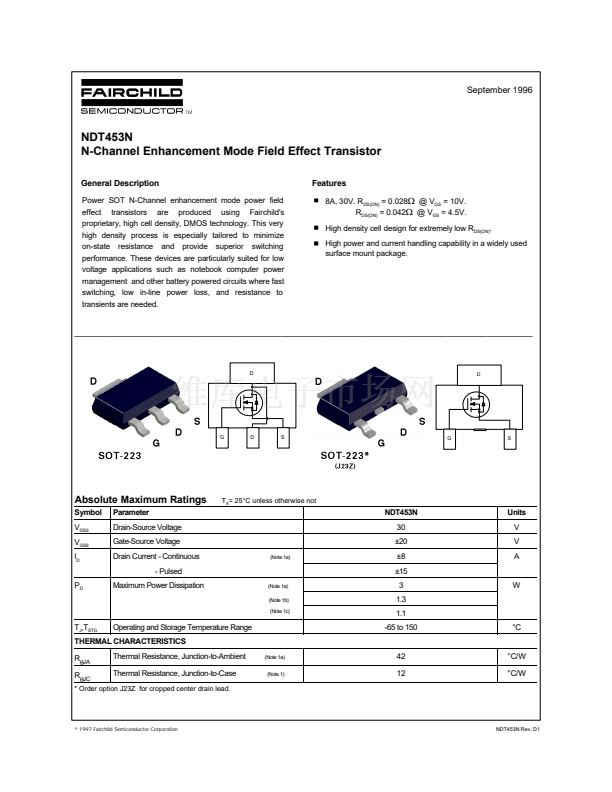

September 1996

NDT453N

N-Channel Enhancement Mode Field Effect Transistor

General Description

Power SOT N-Channel enhancement mode power field

effect transistors are produced using Fairchild's

proprietary, high cell density, DMOS technology. This very

high density process is especially tailored to minimize

on-state resistance and provide superior switching

performance. These devices are particularly suited for low

voltage applications such as notebook computer power

management and other battery powered circuits where fast

switching, low in-line power loss, and resistance to

transients are needed.

Features

8A, 30V. R

DS(ON)

= 0.028

鈩?/div>

@ V

= 10V.

DS(ON)

= 0.042

鈩?/div>

@ V

= 4.5V.

High density cell design for extremely low R

DS(ON)

High power and current handling capability in a widely used

surface mount package.

___________________________________________________________________________________________

Absolute Maximum Ratings

Symbol

DSS

GSS

Parameter

Drain-Source Voltage

Gate-Source Voltage

Drain Current - Continuous

- Pulsed

Maximum Power Dissipation

= 25擄C unless otherwise not

NDT453N

鹵20

(Note 1a)

Units

鹵8

鹵15

(Note 1a)

(Note 1b)

(Note 1c)

1.3

1.1

-65 to 150

STG

Operating and Storage Temperature Range

擄C

THERMAL CHARACTERISTICS

胃

Thermal Resistance, Junction-to-Ambient

Thermal Resistance, Junction-to-Case

(Note 1a)

(Note 1)

擄C/W

* Order option J23Z for cropped center drain lead.

漏 1997 Fairchild Semiconductor Corporation

NDT453N Rev. D1

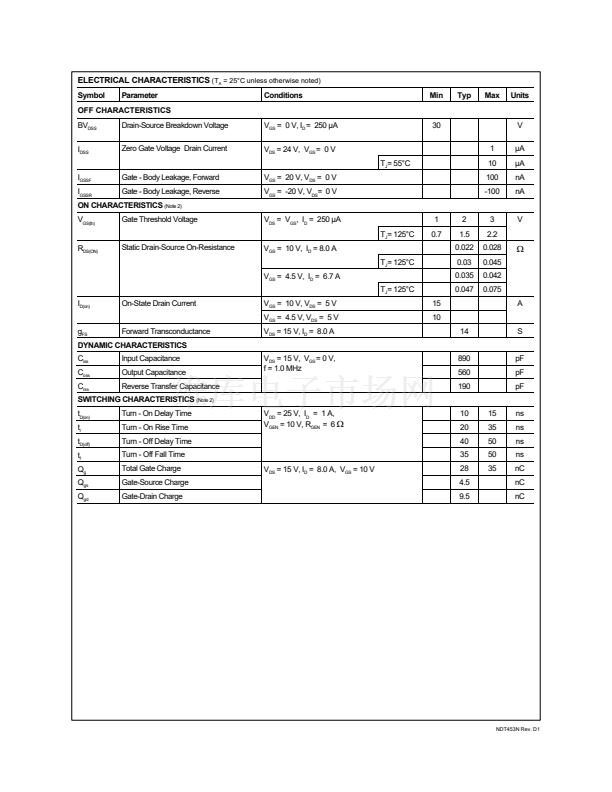

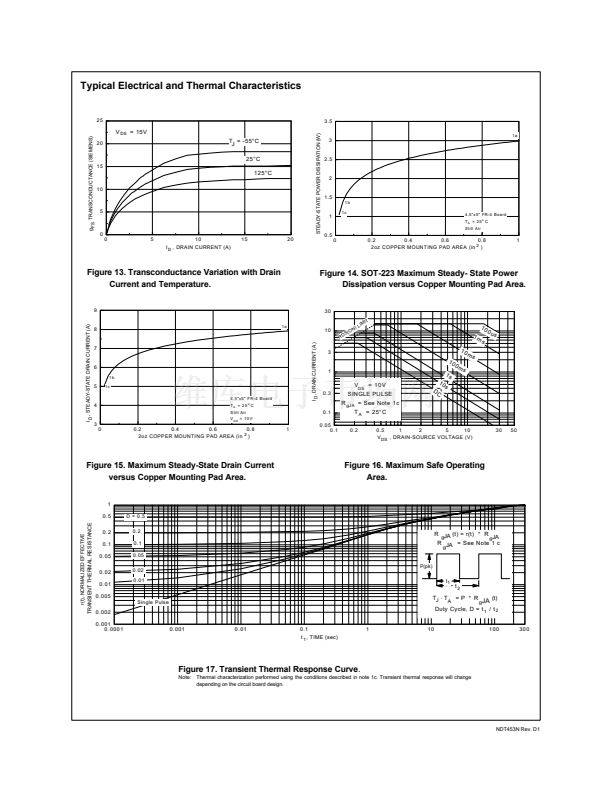

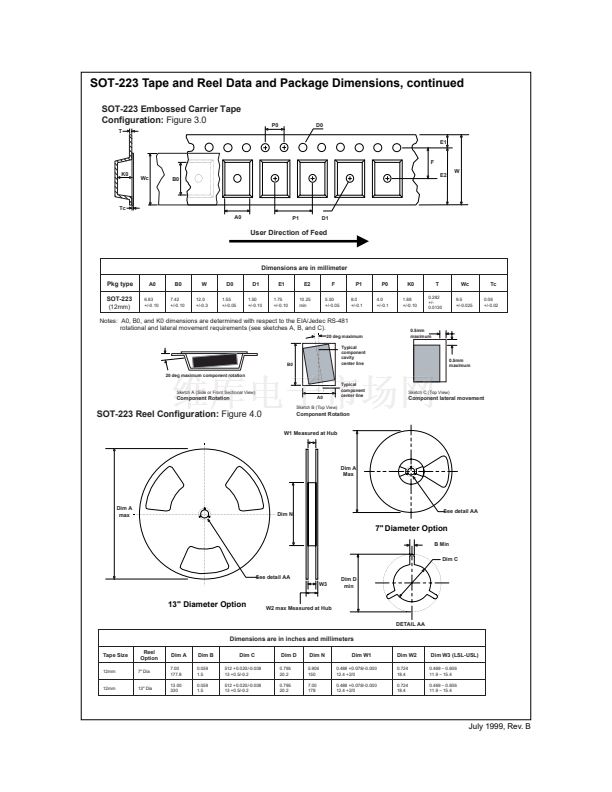

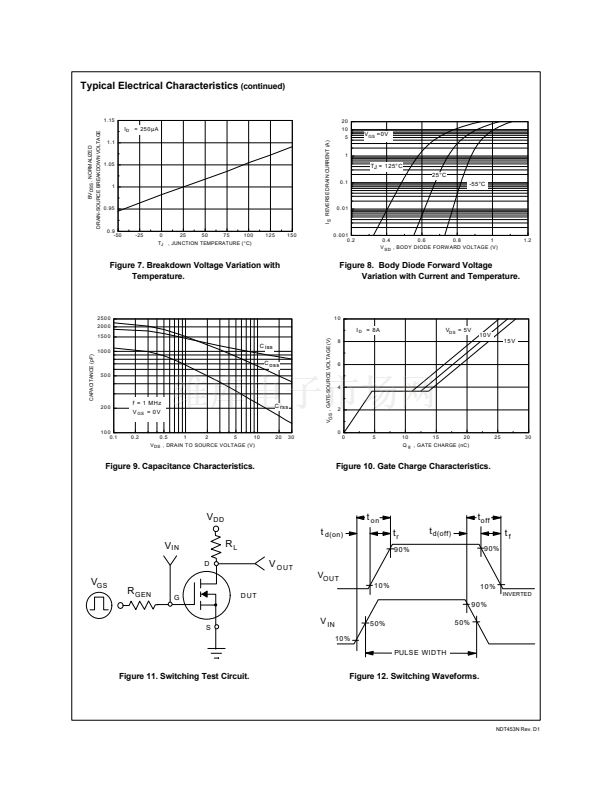

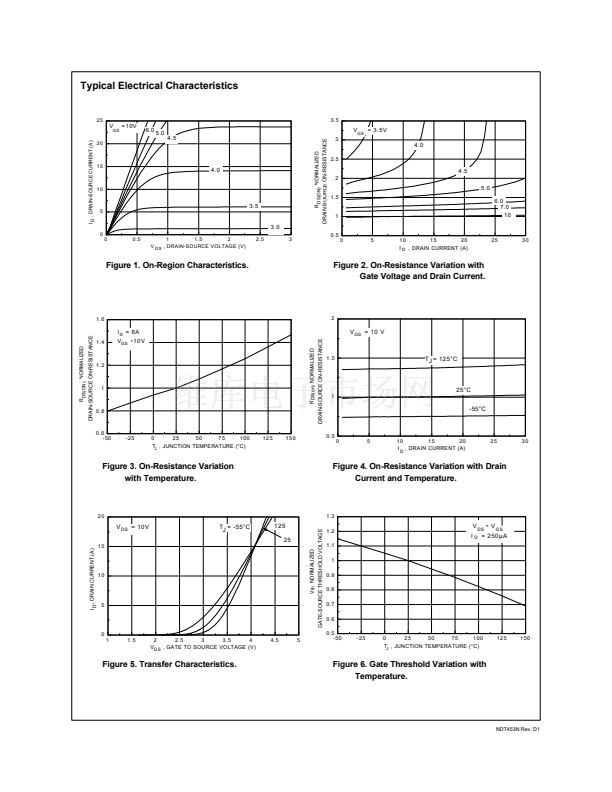

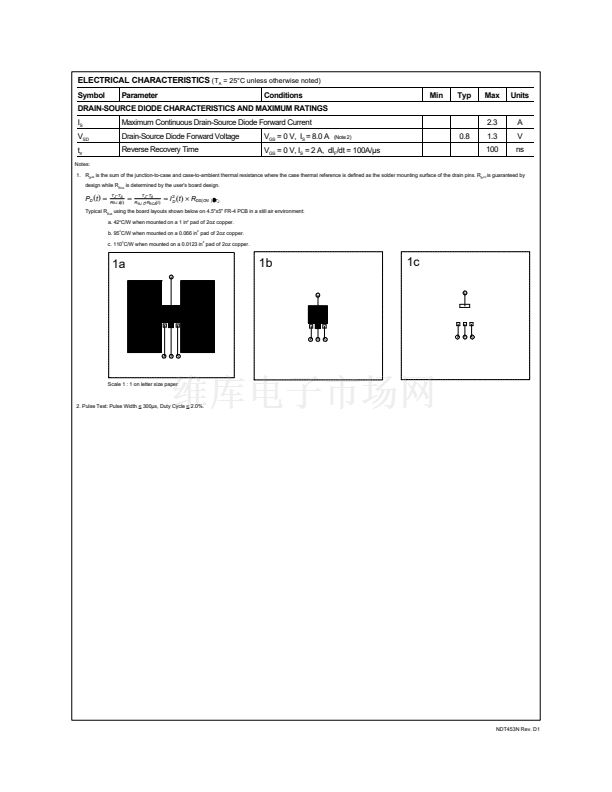

標準包裝
2,500
類別
分離式半導體產品
家庭
FET - 單
系列
-
FET 型
MOSFET N 通道，金屬氧化物
FET 特點
邏輯電平門
漏極至源極電壓(Vdss)
30V
電流 - 連續漏極(Id) @ 25° C
8A
開態Rds（最大）@ Id, Vgs @ 25° C
28 毫歐 @ 8A，10V
Id 時的 Vgs(th)（最大）
3V @ 250µA
閘電荷(Qg) @ Vgs
35nC @ 10V
輸入電容 (Ciss) @ Vds
890pF @ 15V
功率 - 最大
1.1W
安裝類型
表面貼裝

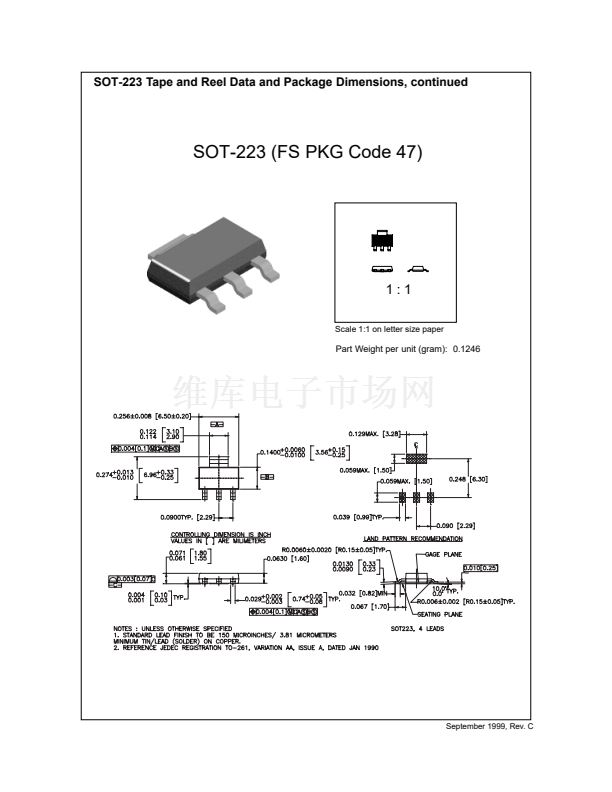

封裝/外殼
TO-261-4，TO-261AA
供應商設備封裝
SOT-223-3

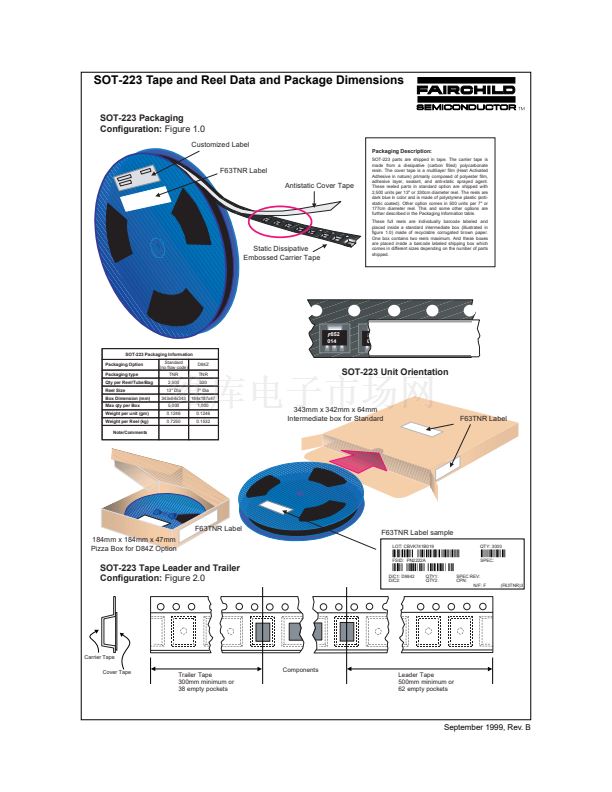

包裝
帶卷 (TR)
其它名稱
NDT453NTR
