September 1996

NDT014

N-Channel Enhancement Mode Field Effect Transistor

General Description

Power SOT N-Channel enhancement mode power field effect

transistors are produced using Fairchild's proprietary, high cell

density, DMOS technology. This very high density process is

especially tailored to minimize on-state resistance and provide

superior switching performance. These devices are particularly

suited for low voltage applications such as DC motor control

and DC/DC conversion where fast switching, low in-line power

loss, and resistance to transients are needed.

Features

2.7A, 60V. R

DS(ON)

= 0.2

鈩?/div>

@ V

= 10V.

High density cell design for extremely low R

DS(ON)

High power and current handling capability in a widely used

surface mount package.

_________________________________________________________________________________________________________

Absolute Maximum Ratings

Symbol

DSS

GSS

Parameter

Drain-Source Voltage

Gate-Source Voltage

Drain Current

- Continuous

- Pulsed

Maximum Power Dissipation

= 25擄C unless otherwise noted

NDT014

鹵20

(Note 1a)

Units

鹵2.7

鹵10

(Note 1a)

(Note 1b)

(Note 1c)

1.3

1.1

-65 to 150

STG

Operating and Storage Temperature Range

擄C

THERMAL CHARACTERISTICS

胃

Thermal Resistance, Junction-to-Ambient

Thermal Resistance, Junction-to-Case

(Note 1a)

(Note 1)

擄C/W

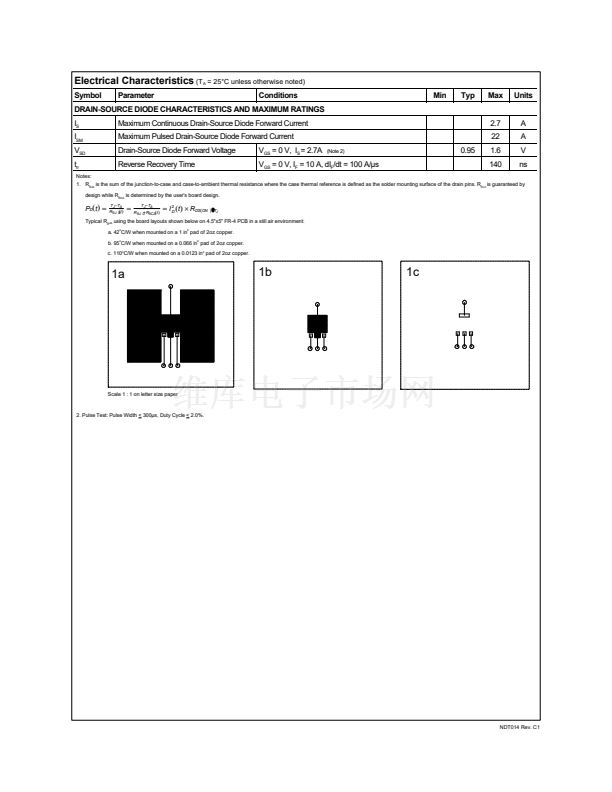

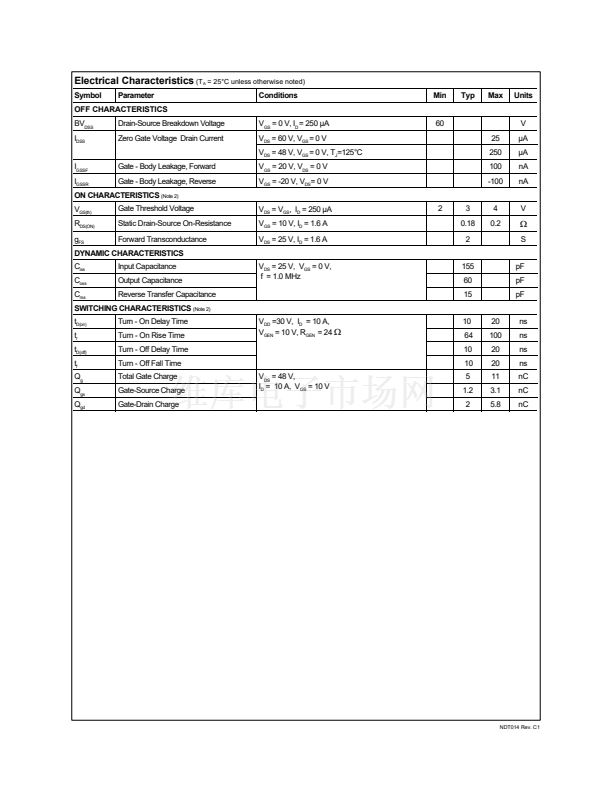

* Order option J23Z for cropped center drain lead.

漏 1997 Fairchild Semiconductor Corporation

NDT014 Rev. C1

產品培訓模塊
High Voltage Switches for Power ProcessingSMPS Power Switch
標準包裝
4,000
類別
分離式半導體產品
家庭
FET - 單
系列
-
FET 型
MOSFET N 通道，金屬氧化物
FET 特點
標準型
漏極至源極電壓(Vdss)
60V
電流 - 連續漏極(Id) @ 25° C
2.7A
開態Rds（最大）@ Id, Vgs @ 25° C
200 毫歐 @ 1.6A，10V
Id 時的 Vgs(th)（最大）
4V @ 250µA
閘電荷(Qg) @ Vgs
11nC @ 10V
輸入電容 (Ciss) @ Vds
155pF @ 25V
功率 - 最大
1.1W
安裝類型
表面貼裝
封裝/外殼
TO-261-4，TO-261AA
供應商設備封裝
SOT-223-3
包裝
帶卷 (TR)
其它名稱
NDT014TR
