Product Guide(
UTZ-SC0038_2
)
LD Slot Module
NDAV521E1

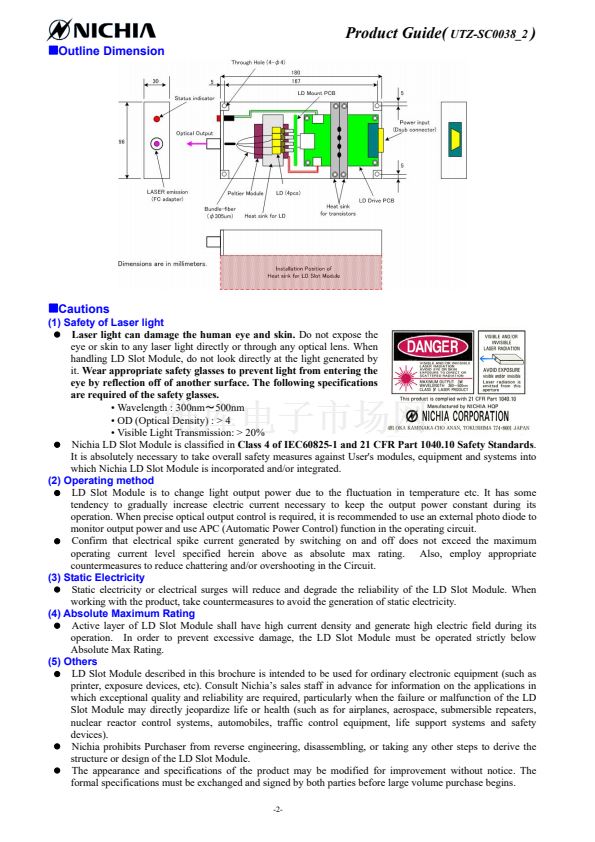

Outline
Features
Engineering Sample
LD Slot Module generates up to 500mW by bundling 4 fibers coupled laser diodes. Slimly designed for
compactness as well as easy replacement. This Module is expected for use as light source of the exposure
devices / medical devices / biological detectors, etc.
鈥?Long life
鈥?Low electric power consumption
鈥?Easy operation
鈥?Compact
鈥?High flexibility for designing light source(Custom output power/ arrangement are available.)
Specifications
鈥?Optical output power:
鈥?Wavelength:
鈥?Bundle-fiber:
鈥?LD drive current:
鈥?Power supply:
鈥?Operating Mode:
鈥?Dimensions:
鈥?Weights:
500mW/slot (125mW/pc)
400 ~ 410nm
Outside diameter 305um (SI=114 /125, NA=0.2)
Max. 350mA/pc (1.4A /slot)
DC12V (2A)
Multi drive mode / Individual drive mode
96 (W) x 180 (D) x 30 (H) mm
0.8kg
Absolute Maximum Ratings
Item
Optical
1piece
Output Power
Slot
Storage Temperature
LD Operating Temperature
Circumference temperature
Humidity *
* No condensation
Symbol
Po
Tstg
Tc
Ta
-
Absolute Maximum Ratings
150
600
-10 ~ 60
20
鹵
5
Tc
鹵
15
70
Unit
mW/pc
mW/slot
擄C
擄C
擄C
%RH
(Tc=20擄C, Po=500mW/slot)
Item
Symbol
Min
Typ.
Max
Unit
Optical
1piece
-
-
125
mW/pc
Po
Output Power
Slot
-
-
500
mW/slot
Peak Wavelength
400
-
410
nm
位
1piece
250
350
mA/pc
Operating
Current
Slot
1000
1400
mA/slot
All figures in this specification are measured by Nichia's method and may contain measurement deviations.
This model is Engineering Sample for evaluation or design purpose only. Life time is not guaranteed.
The above specifications are for reference purpose only and subjected to change without prior notice.
Initial Electrical/Optical Characteristics
NICHIA CORPORATION
http://www.nichia.co.jp
HEAD OFFICE: P.O.BOX 6 ANAN, TOKUSHIMA-KEN 774-8601, JAPAN
PHONE: +81-884-22-2311 FAX: +81-884-21-0148
CONTACT
TOKYO SALES DEPARTMENT OPTOELECTRONICS PRODUCTS DIV.: 13F TAMACHI CENTER BUILDING, 34-7,
SHIBA 5-CHOME, MINATO-KU, TOKYO 108-0014, JAPAN
PHONE: +81-3-3456-3108
FAX: +81-3-5440-7330
