NCV7601
Quad Driver
This automotive grade product provides a versatile interface
between control logic and many types of loads. The inputs accept a
wide range of control signal levels while the open鈥揷ollector outputs
feature independent thermal and current limiting. Integral transient
suppression diodes are provided at all inputs and outputs.
Features
鈥?/div>
Operation in 鈥?0擄C 鈥?125擄C Environment
鈥?/div>
TTL/DTL/CMOS Compatible Inputs
鈥?/div>
NAND Logic with Common Enable
鈥?/div>
V
CEX
鈮?/div>
60 V, V
CE(SUS)
鈮?/div>
40 V
鈥?/div>
V
CE(SAT)
鈮?/div>
650 mV @ I
C
= 600 mA
鈥?/div>
Thermally Efficient Fused鈥揕ead Package
鈥?/div>
Pin Compatible with:
鈥?/div>
CA3242/CA3262
鈥?/div>
UDx2543/UDx2549/UDx2559
鈥?/div>
L6220/L6221/L9222
Typical Applications
鈥?/div>
Body and Drivetrain Electronics
鈥?/div>
Incandescent Lamp/LED Loads
鈥?/div>
Solenoid/Relay/Inductor Loads
鈥?/div>
Heater/Resistor Loads
鈥?/div>
Stepper/DC Motor Loads
http://onsemi.com
MARKING
DIAGRAM
16
16
1
NCV7601P
AWLYYWW
1
DIP鈥?6
P SUFFIX
CASE 648
A
WL, L
YY, Y
WW, W
= Assembly Location
= Wafer Lot
= Year
= Work Week

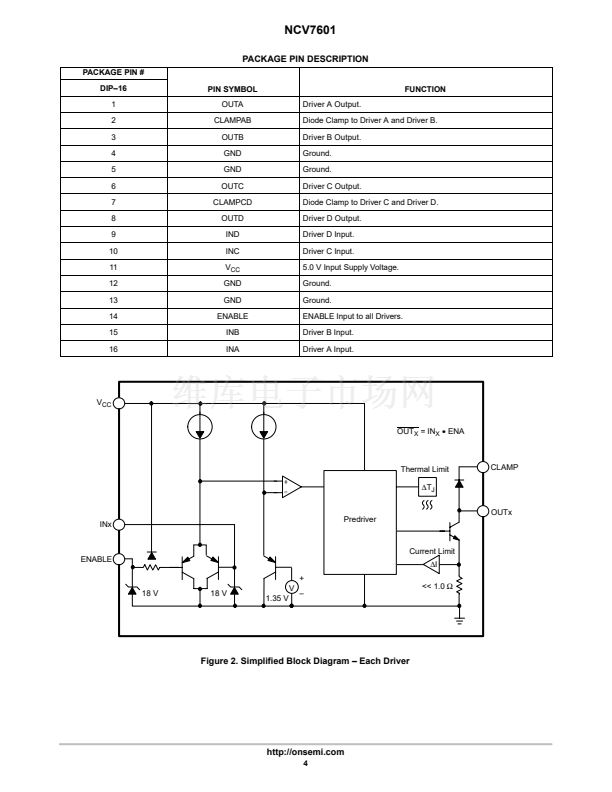

PIN CONNECTIONS
1
OUTA
CLAMPAB
OUTB
GND
GND
OUTC
CLAMPCD
OUTD
16
INA
INB
ENABLE
GND
GND
V
CC
INC
IND
ORDERING INFORMATION
Device
NCV7601P
Package
DIP鈥?6
Shipping
25 Units/Rail
漏
Semiconductor Components Industries, LLC, 2001
1
May, 2001 鈥?Rev. 1
Publication Order Number:
NCV7601/D
