NCP502/D Datasheet

  • NCP502/D

  • 80 mA CMOS Low Iq Voltage Regulator in an SC70-5

  • 12頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

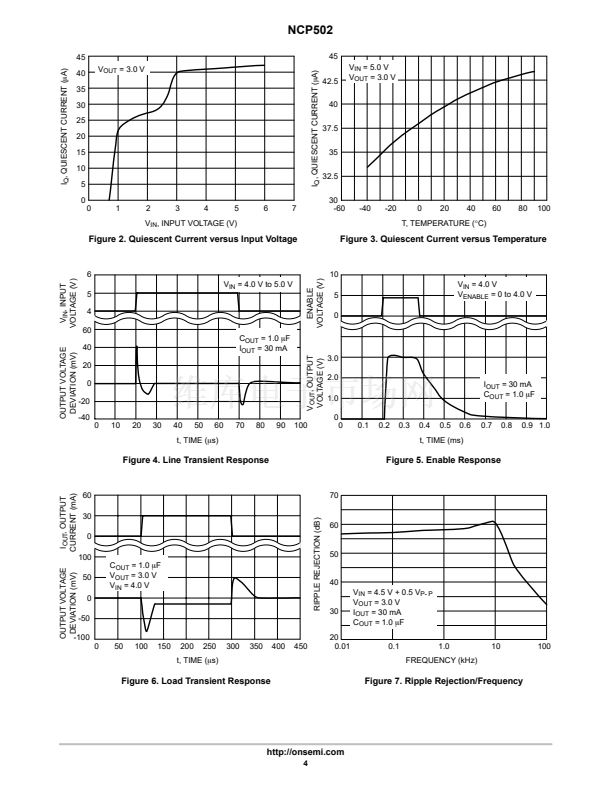

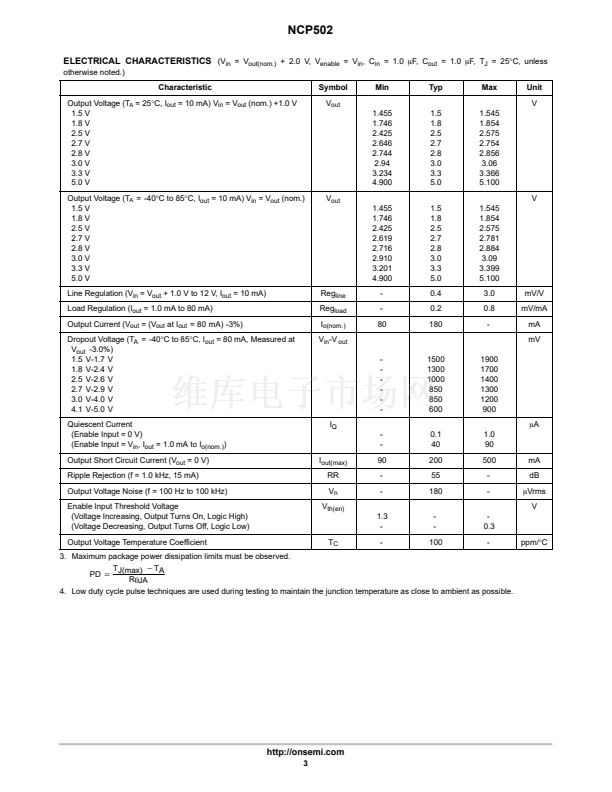

NCP502
80 mA CMOS Low Iq
Voltage Regulator in an
SC70鈭?
The NCP502 series of fixed output linear regulators are designed for
handheld communication equipment and portable battery powered
applications which require low quiescent. The NCP502 series features
an ultra-low quiescent current of 40
mA.
Each device contains a
voltage reference unit, an error amplifier, a PMOS power transistor,
resistors for setting output voltage, current limit, and temperature limit
protection circuits.
The NCP502 has been designed to be used with low cost ceramic
capacitors. The device is housed in the micro-miniature SC70-5
surface mount package. Standard voltage versions are 1.5, 1.8, 2.5,
2.7, 2.8, 3.0, 3.3, and 5.0 V. Other voltages are available in 100 mV
steps.
Features
http://onsemi.com
MARKING
DIAGRAM
5
1
SC-88A/SOT-353/SC70-5
DF SUFFIX
CASE 419A
XXXd
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Low Quiescent Current of 40
mA
Typical
Excellent Line and Load Regulation
Low Output Voltage Option
Output Voltage Accuracy of 2.0%
Industrial Temperature Range of -40擄C to 85擄C
Cellular Phones
Battery Powered Consumer Products
Hand-Held Instruments
Camcorders and Cameras
XXX = Specific Device Code
d
= Date Code

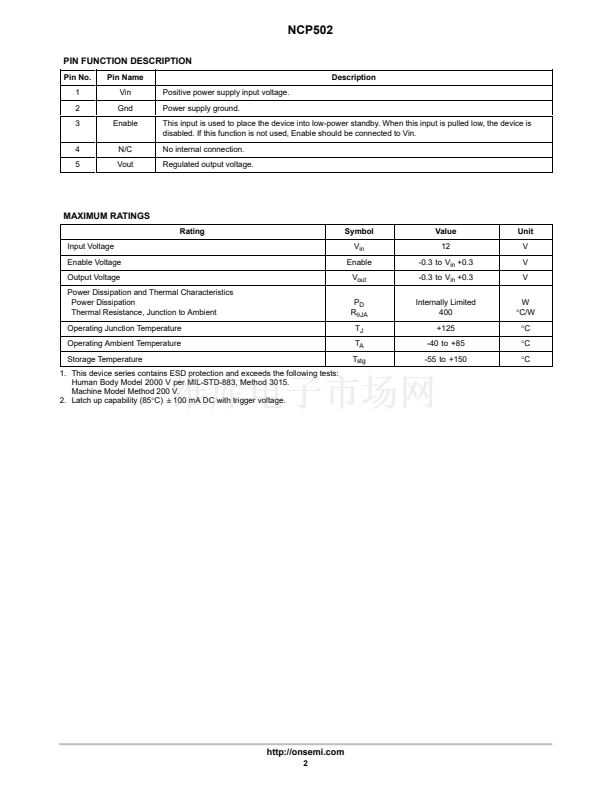

PIN CONNECTIONS
Typical Applications
V
in
Gnd
Enable
1
2
3
5
V
out
4
N/C
(Top View)
ORDERING INFORMATION
Battery or
Unregulated
Voltage
Vout
C1
+
1
2
ON
OFF
This device contains 86 active transistors
3
4
5
+
C2
See detailed ordering and shipping information in the package
dimensions section on page 9 of this data sheet.

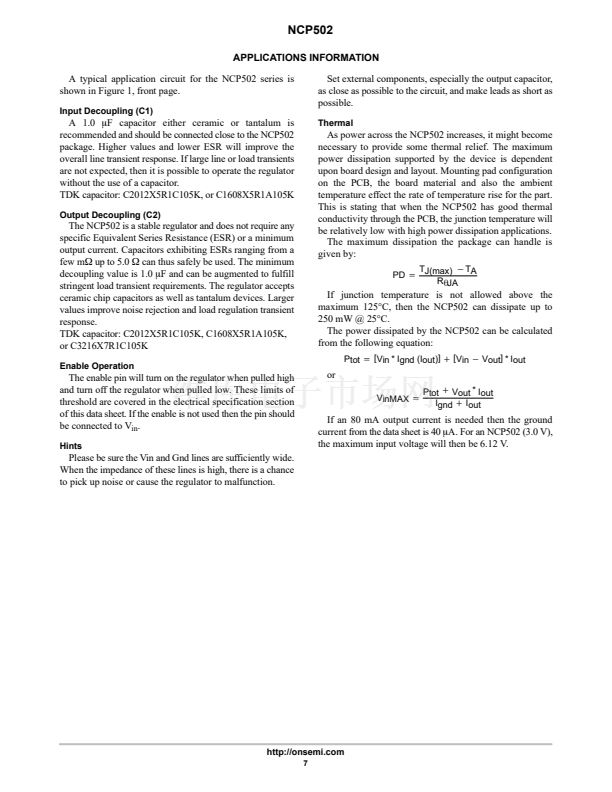

Figure 1. Typical Application Diagram
漏
Semiconductor Components Industries, LLC, 2003
1
April, 2003 - Rev. 5
Publication Order Number:
NCP502/D
