NCP345
Advance Information
Over Voltage Protection IC
The NCP345 over鈥搗oltage protection circuit (OVP) protects
sensitive electronic circuitry from over鈥搗oltage transients and power
supply faults when used in conjunction with an external P鈥揷hannel
FET. The device is designed to sense an over鈥搗oltage condition and
quickly disconnect the input voltage supply from the load before any
damage can occur. The OVP consists of a precise voltage reference, a
comparator with hysteresis, control logic, and a MOSFET gate driver.
The OVP is designed on a robust BiCMOS process and is intended to
withstand voltage transients up to 30 V.
The device is optimized for applications that have an external
AC/DC adapter or car accessory charger to power the product and/or
recharge the internal batteries. The nominal over鈥搗oltage threshold is
6.85 V so it is suitable for single cell Li鈥揑on applications as well as 3/4
cell NiCD/NiMH applications.
Features
http://onsemi.com
5
1
TSOP鈥?
SN SUFFIX
CASE 483
PIN CONNECTIONS &
MARKING DIAGRAM
OUT 1
RADYW
GND
CNTRL
2
3
Y
W
5
VCC
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Over鈥揤oltage Turn鈥揙ff Time of less than 1.0
碌sec
Accurate Voltage Threshold of 6.85 V (nominal)
Under鈥揤oltage Lockout Protection
CNTRL Input Compatible with 1.8 V Logic Levels
4
IN
Typical Applications
Cellular Phones
Digital Cameras
Portable Computers and PDAs
Portable CD and other Consumer Electronics
= Year
= Work Week
(Top View)
ORDERING INFORMATION
Device
NCP345SNT1
Package
TSOP鈥?
Shipping
3000 / 7鈥?Reel
AC/DC Adapter or
Accessory Charger
V
CC
IN
+
-
V
ref
NCP345
GND
CNTRL
Microprocessor
port
Under鈥搗oltage
Lock Out
P鈥揅H
Schottky
Diode
+
Logic
FET
Driver
C1
OUT
LOAD
Note: This device contains 89 active transistors

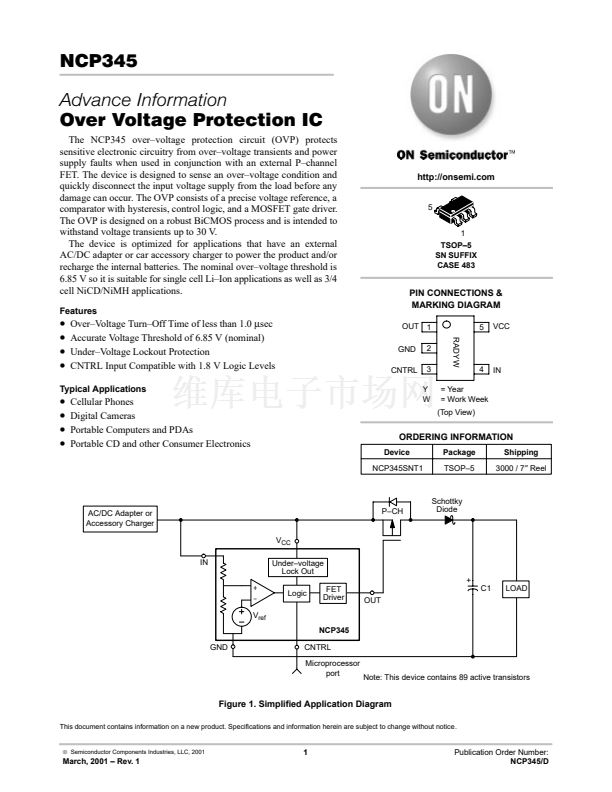

Figure 1. Simplified Application Diagram
This document contains information on a new product. Specifications and information herein are subject to change without notice.
漏
Semiconductor Components Industries, LLC, 2001
1
March, 2001 鈥?Rev. 1
Publication Order Number:
NCP345/D
