NCP1651/D Datasheet

  • NCP1651/D

  • Single Stage Power Factor Controller

  • 228.75KB

  • 32頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

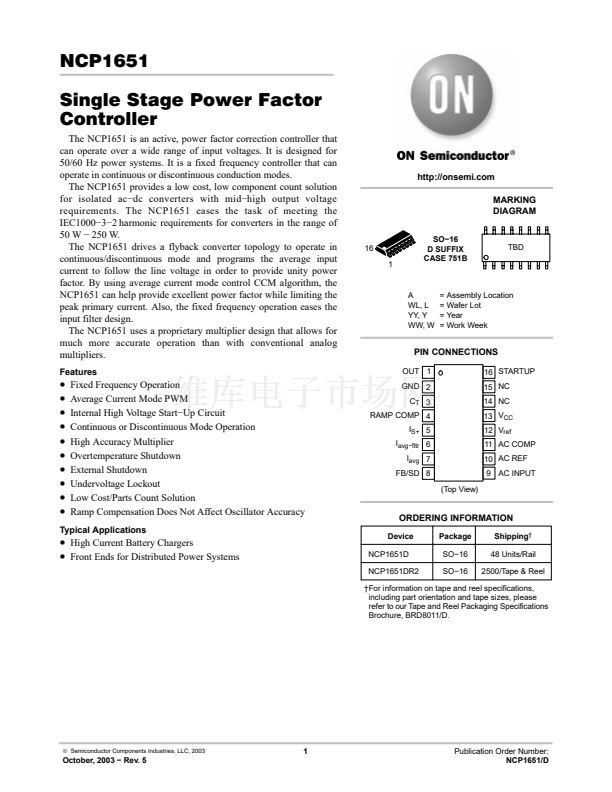

NCP1651
Single Stage Power Factor
Controller
The NCP1651 is an active, power factor correction controller that
can operate over a wide range of input voltages. It is designed for
50/60 Hz power systems. It is a fixed frequency controller that can
operate in continuous or discontinuous conduction modes.
The NCP1651 provides a low cost, low component count solution
for isolated ac鈭抎c converters with mid鈭抙igh output voltage
requirements. The NCP1651 eases the task of meeting the
IEC1000鈭?鈭? harmonic requirements for converters in the range of
50 W 鈭?250 W.
The NCP1651 drives a flyback converter topology to operate in
continuous/discontinuous mode and programs the average input
current to follow the line voltage in order to provide unity power
factor. By using average current mode control CCM algorithm, the
NCP1651 can help provide excellent power factor while limiting the
peak primary current. Also, the fixed frequency operation eases the
input filter design.
The NCP1651 uses a proprietary multiplier design that allows for
much more accurate operation than with conventional analog
multipliers.
Features
http://onsemi.com
MARKING
DIAGRAM
SO鈭?6
D SUFFIX
CASE 751B
16
1
TBD
A
WL, L
YY, Y
WW, W
= Assembly Location
= Wafer Lot
= Year
= Work Week
PIN CONNECTIONS
OUT 1
GND 2
C
T
3
RAMP COMP 4
I
S+
5
I
avg鈭抐ltr
6
I
avg
7
FB/SD 8
(Top View)
16 STARTUP
15 NC
14 NC
13 V
CC
12 V
ref
11 AC COMP
10 AC REF
9 AC INPUT
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Fixed Frequency Operation
Average Current Mode PWM
Internal High Voltage Start鈭扷p Circuit
Continuous or Discontinuous Mode Operation
High Accuracy Multiplier
Overtemperature Shutdown
External Shutdown
Undervoltage Lockout
Low Cost/Parts Count Solution
Ramp Compensation Does Not Affect Oscillator Accuracy
ORDERING INFORMATION
Device
NCP1651D
NCP1651DR2
Package
SO鈭?6
SO鈭?6
Shipping
鈥?/div>
48 Units/Rail
2500/Tape & Reel
Typical Applications
鈥?/div>
High Current Battery Chargers
鈥?/div>
Front Ends for Distributed Power Systems
鈥燜or information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
漏
Semiconductor Components Industries, LLC, 2003
1
October, 2003 鈭?Rev. 5
Publication Order Number:
NCP1651/D
