NCP1422/D Datasheet

  • NCP1422/D

  • 800 mA Sync-Rect PFM Step-Up DC-DC Converter with True-Cutof...

  • 14頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

NCP1422
800 mA Sync鈭扲ect PFM
Step鈭扷p DC鈭扗C Converter
with True鈭扖utoff and
Ring鈭扠iller
NCP1422 is a monolithic micropower high鈭抐requency step鈭抲p
switching converter IC specially designed for battery鈭抩perated
hand鈭抙eld electronic products up to 800 mA loading. It integrates
Sync鈭扲ect to improve efficiency and to eliminate the external
Schottky Diode. High switching frequency (up to 1.2 MHz) allows
for a low profile, small鈭抯ized inductor and output capacitor to be
used. When the device is disabled, the internal conduction path from
LX or BAT to OUT is fully blocked and the OUT pin is isolated from
the battery. This True鈭扖utoff function reduces the shutdown current
to typically only 50 nA. Ring鈭扠iller is also integrated to eliminate
the high鈭抐requency ringing in discontinuous conduction mode. In
addition to the above, Low鈭払attery Detector, Logic鈭扖ontrolled
Shutdown, Cycle鈭抌y鈭扖ycle Current Limit and Thermal Shutdown
provide value鈭抋dded features for various battery鈭抩perated
applications. With all these functions on, the quiescent supply
current is typically only 8.5
mA.
This device is available in the
compact and low profile DFN鈭?0 package.
Features
http://onsemi.com
MARKING
DIAGRAMS
1
1
DFN鈭?0
MN SUFFIX
CASE 485C
1422
A
L
Y
W
1422
ALYW
= Device Code
= Assembly Location
= Wafer Lot
= Year
= Work Week
鈥?/div>
High Efficiency: 94% for 3.3 V Output at 200 mA from 2.5 V Input
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
88% for 3.3 V Output at 500 mA from 2.5 V Input
High Switching Frequency, up to 1.2 MHz (not hitting current limit)
Output Current up to 800 mA at V
IN
= 2.5 V and V
OUT
= 3.3 V
True鈭扖utoff Function Reduces Device Shutdown Current to
typically 50 nA
Anti鈭扲inging Ring鈭扠iller for Discontinuous Conduction Mode
High Accuracy Reference Output, 1.20 V
$1.5%
@ 25擄C, can
Supply 2.5 mA Loading Current when V
OUT
> 3.3 V
Low Quiescent Current of 8.5
mA
Integrated Low鈭払attery Detector
Open Drain Low鈭払attery Detector Output
1.0 V Startup at No Load Guaranteed
Output Voltage from 1.5 V to 5.0 V Adjustable
1.5 A Cycle鈭抌y鈭扖ycle Current Limit
Multi鈭扚unction Logic鈭扖ontrolled Shutdown Pin
On Chip Thermal Shutdown with Hysteresis
Housed in Space鈭扴aving and Low Profile DFN鈭?0 Package

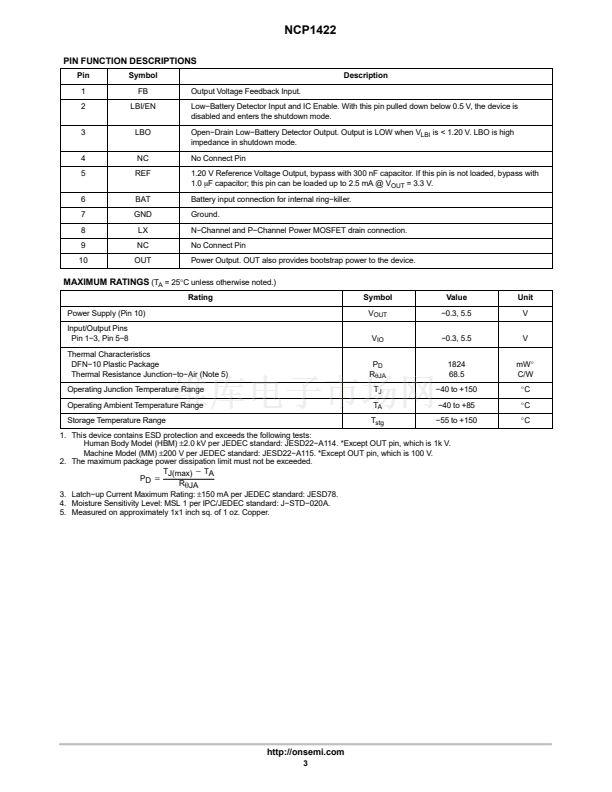

PIN CONNECTIONS
FB
LBI/EN
LBO
NC
REF
1
2
3
4
5
(Top View)
DFN鈭?0
10 OUT
9
8
7
6
NC
LX
GND
BAT
ORDERING INFORMATION
Device
NCP1422MNR2
Package
DFN鈭?0
Shipping鈥?/div>
3000 Tape & Reel
鈥燜or information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
Typical Applications
Personal Digital Assistants (PDA)
Handheld Digital Audio Products
Camcorders and Digital Still Cameras
Hand鈭抙eld Instruments
Conversion from one to two Alkaline, NiMH, NiCd Battery Cells to
3.0鈭?.0 V or one Lithium鈭抜on cells to 5.0 V
鈥?/div>
White LED Flash for Digital Cameras
漏
Semiconductor Components Industries, LLC, 2004
1
February, 2004 鈭?Rev.
P0
Publication Order Number:
NCP1422/D
