85% Efficiency at V
OUT
= 25 V, I
OUT
= 25 mA, V
IN
= 5.0 V
Low Operating Current of 15
mA
(Not Switching)
Low Shutdown Current of 0.3
mA
Low Start鈭抲p Voltage of 1.8 V Typical at 0 mA
Output Voltage up to 25 V with Built鈭抜n 26 V MOSFET Switch
PFM Switching Frequency up to 1.0 MHz
Chip Enable
Low Profile and Minimum External Parts
Micro Miniature TSOP鈭? Package
LCD Bias
White LED Driver
OLED Driver
Personal Digital Assistants (PDA)
Digital Still Camera
Cellular Telephone
Handheld Games
Handheld Instrument
DAM = Device Marking
Y
= Year
W
= Work Week
PIN CONNECTIONS
CE
FB
VDD
1
2
3
(Top View)
4 GND
5
LX

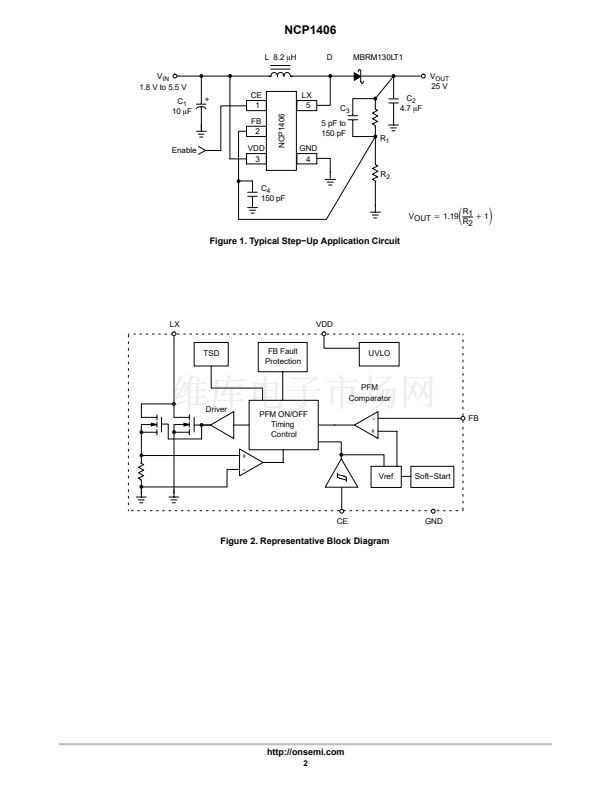

Typical Applications
ORDERING INFORMATION
Device
NCP1406SNT1
Package
TSOP鈭?
Shipping鈥?/div>
3000 Tape & Reel
鈥燜or information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specification
Brochure, BRD8011/D.
This document contains information on a product under development. ON Semiconductor
reserves the right to change or discontinue this product without notice.
漏
Semiconductor Components Industries, LLC, 2004
1
February, 2004 鈭?Rev. P1
Publication Order Number:
NCP1406/D
