NCP1209

Product Preview

PWM Voltage Mode

Controller

The NCP1209P series is an enhanced version of the MC44608P

series. It is a high performance voltage mode controller designed for

fly鈥揵ack SMPS.

These 2 series are pin to pin compatible. The device is a Power

MOSFET driver offering a discrete approach (controller + discrete

MOSFET) for building an offline SMPS.

It features a very high efficiency stand鈥揵y management consisting

in a fully controlled and adaptable Pulsed Mode operation working in

conjunction with a secondary reconfiguration.

Features

http://onsemi.com

SMPS CONTROLLER WITH

ENHANCED STAND鈥揃Y

MANAGEMENT

MARKING

DIAGRAMS

8

1

SO鈥?

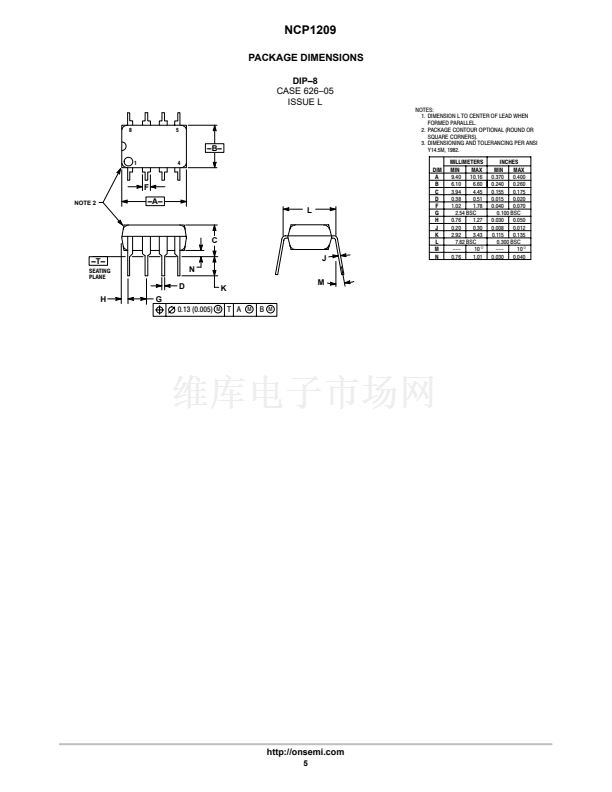

CASE 751

PLASTIC

1

8

DIP鈥?

CASE 626

PLASTIC

1

TBD

鈥?/div>

45 kHz, 65 kHz, 77 kHz

7% Frequency Accuracy Over the Whole Temp Range

Extended V

CC

Working Range 8.6 V to 16 V

Programmable Stand鈥揵y Burst Duty Cycle

Stand鈥揵y Mode Selection from the Secondary Side of the SMPS

5 mA VHV Start鈥搖p Current Source

Device Inhibition Through Start鈥搖p Current Source Reduction

Energy Management in Set Top Box

Opto Feed鈥揵ack Offline SMPS

SMPS Using a Secondary Reconfiguration for the Stand鈥揵y Mode

Ability to Adapt the MOSFET Gate Drive

All General Purpose Fly鈥揵ack SMPS

Typical Applications

8

This document contains information on a product under development. ON Semiconductor

reserves the right to change or discontinue this product without notice.

xx

A

WL, L

YY, Y

WW, W

= Specific Device Code

= Assembly Location

= Wafer Lot

= Year

= Work Week

PIN CONNECTIONS

DMG 1

ICS 2

CTRL 3

GND 4

(Top View)

8 Vi

7 NC

6 V

CC

5 OUT

ORDERING INFORMATION

Device

NCP1209P45

NCP1209P65

NCP1209P77

Package

TBD

Shipping

TBD

漏

Semiconductor Components Industries, LLC, 2002

1

January, 2002鈥?Rev. 0

Publication Order Number:

NCP1209/D
