Outputs
Additional Adjustable Overvoltage Protection Input
Built鈭抜n Hysteresis on all Input Pins
Programmable Undervoltage Blanking During Power鈭扷p
Fault Output with 20 mA Sink Capability
Programmable Remote On/Off Delay Time
Programmable Power Good Delay Time
Precision Voltage Reference with 20 mA Source Capability
Optimized for Low鈭扖ost 100 nF Capacitors
Enhanced Replacement to the TSM112
PDIP鈭?4
P SUFFIX
CASE 646
14
1
PIN CONNECTIONS AND
MARKING DIAGRAM
VS33
VS5
NCP112
AWLYYWW
VS12
ADJ
PGI
CTUV
GND
VCC
FAULT
PGO
CTPG
CTREMOTE
REMOTE
VREF
PDIP鈭?4, SOIC鈭?4

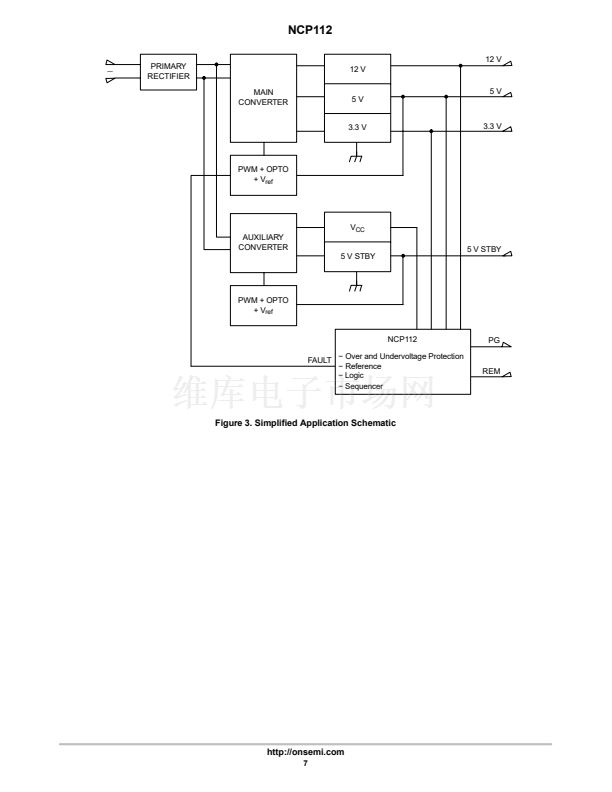

Typical Applications
鈥?/div>
Personal Computer Switch Mode Power Supply Monitoring
鈥?/div>
Multi鈭扥utput Power Supplies Requiring System
Supervision
A
WL
YY
WW
= Assembly Location
= Wafer Lot
= Year
= Work Week
ORDERING INFORMATION
Device
NCP112P
NCP112D
NCP112DR2
Package
PDIP鈭?4
SOIC鈭?4
SOIC鈭?4
Shipping鈥?/div>
25 Tube
55 Tube
2500 Tape & Reel
鈥燜or information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
漏
Semiconductor Components Industries, LLC, 2004
1
February, 2004 鈭?Rev. 1
Publication Order Number:
NCP112/D
