NCN2500/D Datasheet

  • NCN2500/D

  • USB Single Channel Tranceiver

  • 16頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

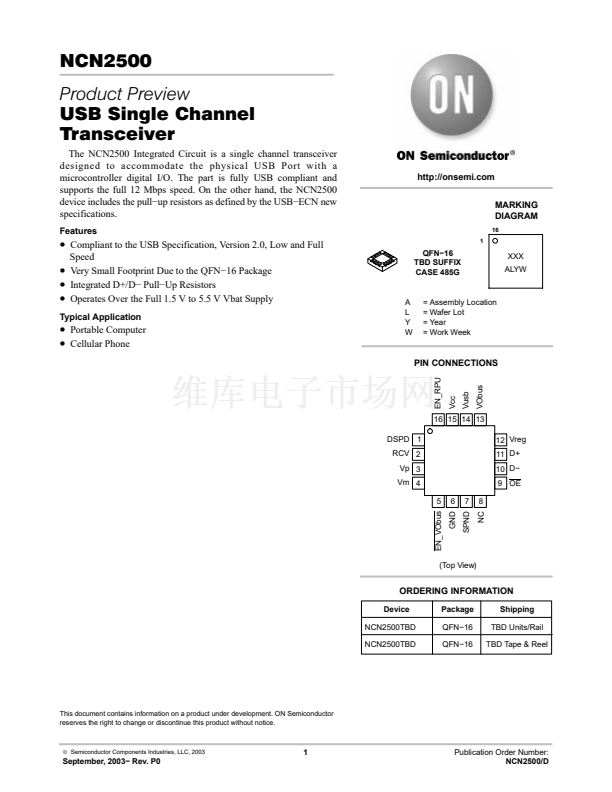

NCN2500
Product Preview
USB Single Channel
Transceiver
The NCN2500 Integrated Circuit is a single channel transceiver
designed to accommodate the physical USB Port with a
microcontroller digital I/O. The part is fully USB compliant and
supports the full 12 Mbps speed. On the other hand, the NCN2500
device includes the pull鈭抲p resistors as defined by the USB鈭扙CN new
specifications.
Features
http://onsemi.com
MARKING
DIAGRAM
16
1
鈥?/div>
Compliant to the USB Specification, Version 2.0, Low and Full
Speed
鈥?/div>
Very Small Footprint Due to the QFN鈭?6 Package
鈥?/div>
Integrated D+/D鈭?Pull鈭扷p Resistors
鈥?/div>
Operates Over the Full 1.5 V to 5.5 V Vbat Supply

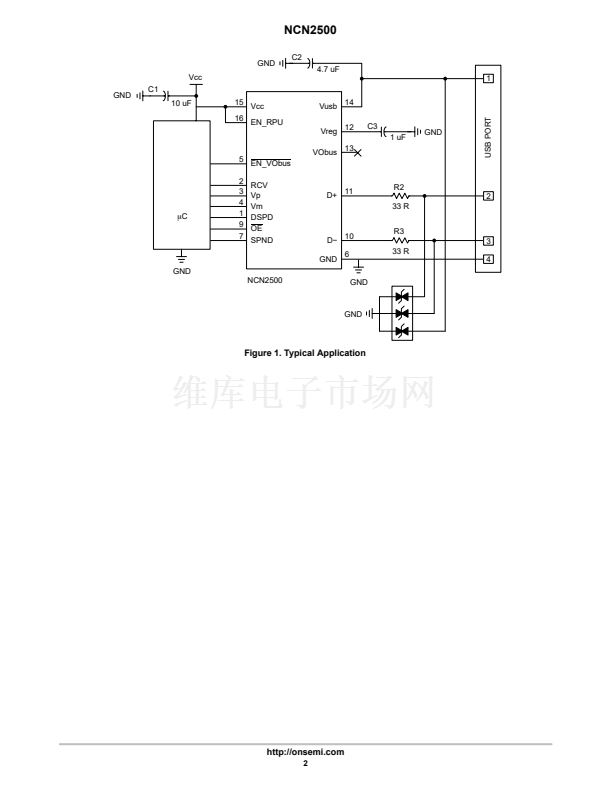

Typical Application
QFN鈭?6
TBD SUFFIX
CASE 485G
XXX
ALYW
鈥?/div>
Portable Computer
鈥?/div>
Cellular Phone
A
L
Y
W
= Assembly Location
= Wafer Lot
= Year
= Work Week
PIN CONNECTIONS
EN_RPU
VObus
12 Vreg
11 D+
10 D鈭?/div>
9 OE
5
EN_VObus
6
GND
7
SPND
8
NC
Shipping
TBD Units/Rail
TBD Tape & Reel
16 15 14 13
DSPD 1
RCV 2
Vp 3
Vm 4
(Top View)
ORDERING INFORMATION
Device
NCN2500TBD
NCN2500TBD
Package
QFN鈭?6
QFN鈭?6
This document contains information on a product under development. ON Semiconductor
reserves the right to change or discontinue this product without notice.
漏
Semiconductor Components Industries, LLC, 2003
1
September, 2003鈭?Rev. P0
Publication Order Number:
NCN2500/D
Vusb
Vcc
