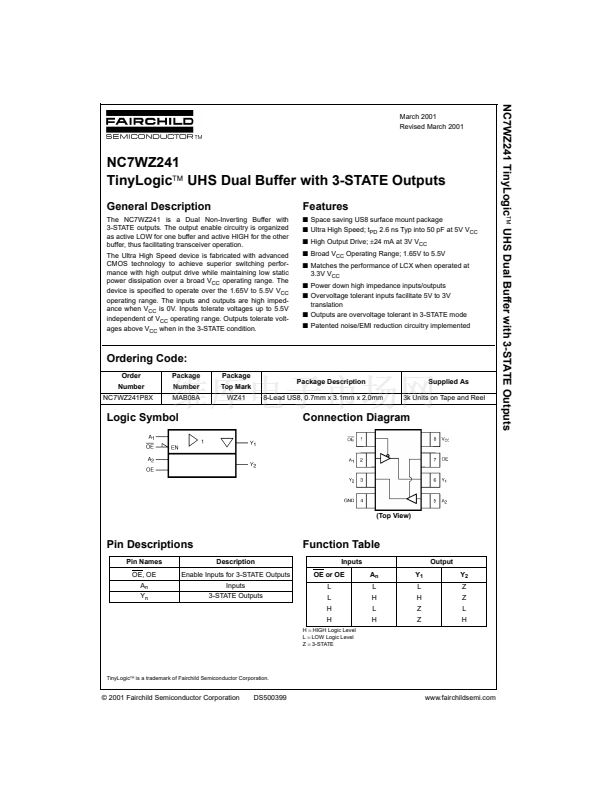

UHS Dual Buffer with 3-STATE Outputs
General Description
The NC7WZ241 is a Dual Non-Inverting Buffer with
3-STATE outputs. The output enable circuitry is organized
as active LOW for one buffer and active HIGH for the other
buffer, thus facilitating transceiver operation.
The Ultra High Speed device is fabricated with advanced
CMOS technology to achieve superior switching perfor-
mance with high output drive while maintaining low static
power dissipation over a broad V
CC
operating range. The
device is specified to operate over the 1.65V to 5.5V V
CC
operating range. The inputs and outputs are high imped-
ance when V
CC
is 0V. Inputs tolerate voltages up to 5.5V
independent of V
CC
operating range. Outputs tolerate volt-
ages above V
CC
when in the 3-STATE condition.
Features
s
Space saving US8 surface mount package
s
Ultra High Speed; t
PD
2.6 ns Typ into 50 pF at 5V V
CC
s
High Output Drive;
鹵
24 mA at 3V V
CC
s
Broad V
CC
Operating Range; 1.65V to 5.5V
s
Matches the performance of LCX when operated at
3.3V V
CC
s
Power down high impedance inputs/outputs
s
Overvoltage tolerant inputs facilitate 5V to 3V
translation
s
Outputs are overvoltage tolerant in 3-STATE mode
s
Patented noise/EMI reduction circuitry implemented
Ordering Code:
Order
Number
NC7WZ241P8X
Package
Number
MAB08A
Package
Top Mark
WZ41

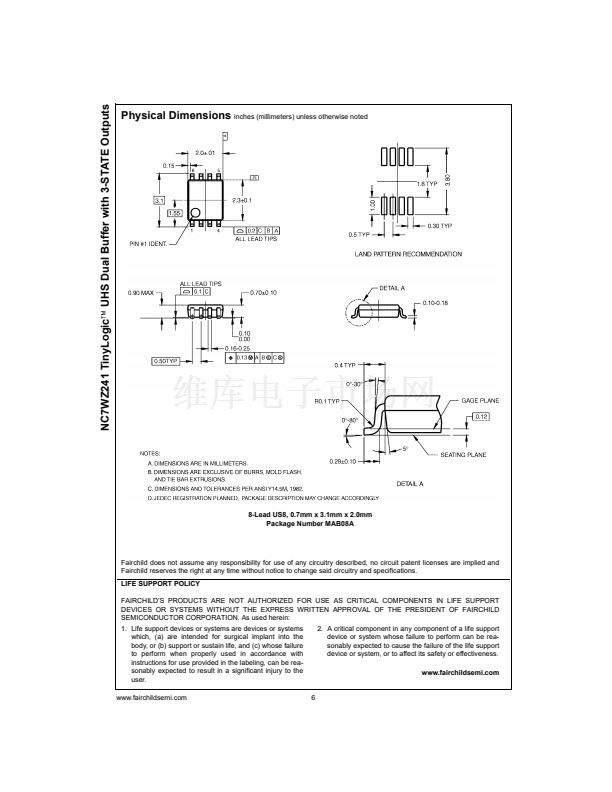

Package Description
8-Lead US8, 0.7mm x 3.1mm x 2.0mm
Supplied As

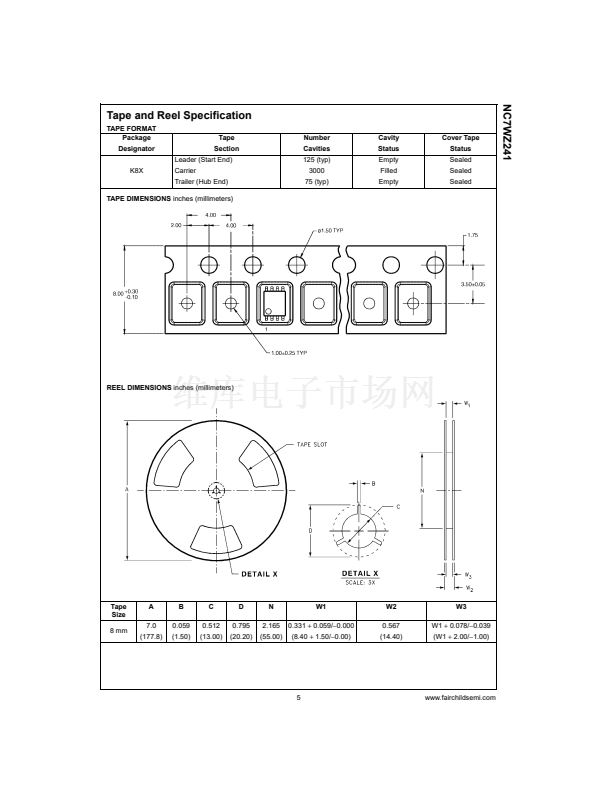

3k Units on Tape and Reel
Logic Symbol
Connection Diagram
(Top View)
Pin Descriptions
Pin Names
OE, OE
A
n
Y
n
Description
Enable Inputs for 3-STATE Outputs
Inputs
3-STATE Outputs
Function Table
Inputs
OE or OE
L
L
H
H
H
=
HIGH Logic Level
L
=
LOW Logic Level
Z
=
3-STATE
Output
A
n
L
H
L
H
Y
1
L
H
Z
Z
Y
2
Z
Z
L
H
TinyLogic錚?is a trademark of Fairchild Semiconductor Corporation.
漏 2001 Fairchild Semiconductor Corporation
DS500399
www.fairchildsemi.com
