NC7WZ16P6 Datasheet

  • NC7WZ16P6

  • LOGIC GATE|DUAL BUFFER|CMOS|TSSOP|6PIN|PLASTIC

  • 6頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

NC7WZ16 TinyLogic錚?UHS Dual Buffer
March 1999
Revised January 2001
NC7WZ16
TinyLogic
錚?/div>
UHS Dual Buffer
General Description
The NC7WZ16 is a dual buffer from Fairchild鈥檚 Ultra High
Speed Series of TinyLogic
錚?/div>
in the space saving SC70 6-
lead package. The device is fabricated with advanced
CMOS technology to achieve ultra high speed with high
output drive while maintaining low static power dissipation
over a very broad V
CC
operating range. The device is
specified to operate over the 1.65V to 5.5V V
CC
range. The
inputs and outputs are high impedance when V
CC
is 0V.
Inputs tolerate voltages up to 7V independent of V
CC
oper-
ating voltage.
Features
s
Space saving SC70 6-lead package
s
Ultra High Speed: t
PD
2.4 ns Typ into 50 pF at 5V V
CC
s
High Output Drive:
鹵
24 mA at 3V V
CC
s
Broad V
CC
Operating Range: 1.65V to 5.5V
s
Matches the performance of LCX when operated at
3.3V V
CC
s
Power down high impedance inputs/outputs
s
Overvoltage tolerant inputs facilitate 5V to 3V translation
s
Patented noise/EMI reduction circuitry implemented
Ordering Code:
Order
Number
NC7WZ16P6
NC7WZ16P6X
Package
Number
MAA06A
MAA06A
Product Code
Top Mark
Z16
Z16
Package Description
6-Lead SC70, EIAJ SC88, 1.25mm Wide
6-Lead SC70, EIAJ SC88, 1.25mm Wide

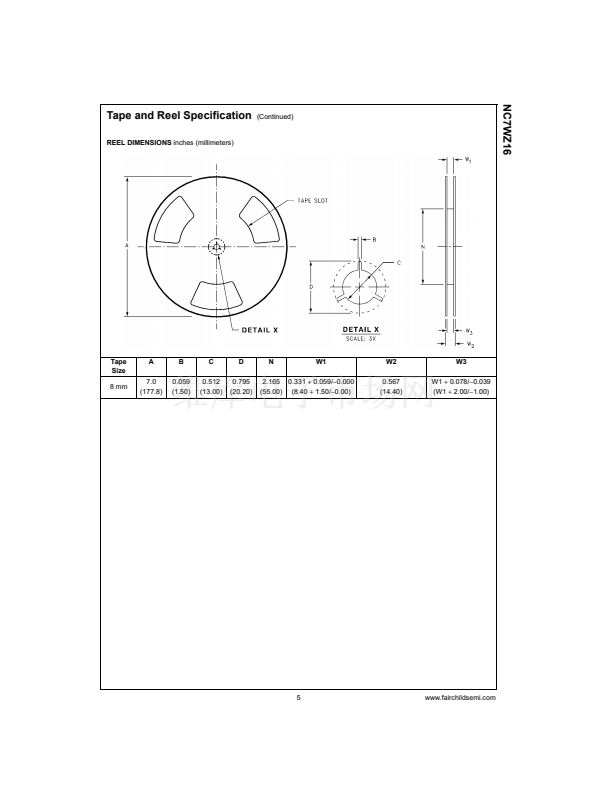

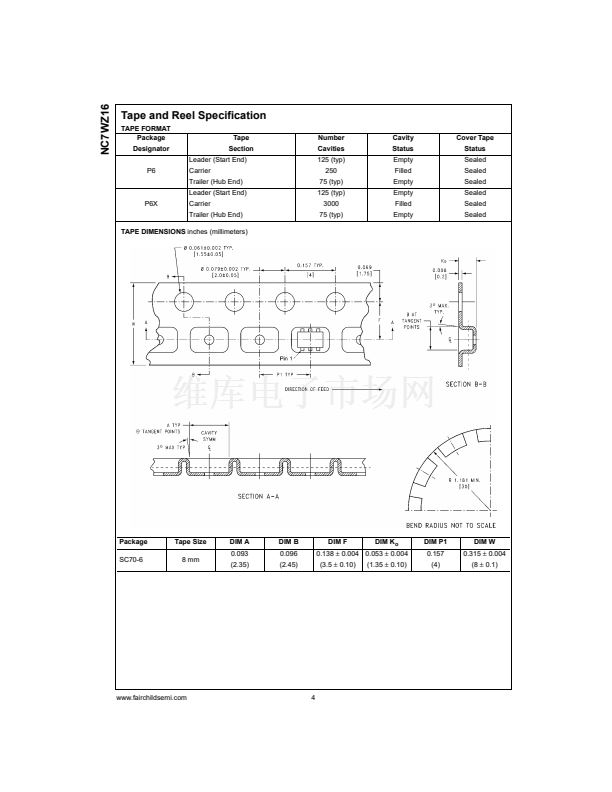

Supplied As
250 Units on Tape and Reel
3k Units on Tape and Reel
Logic Symbol
IEEE/IEC
Connection Diagrams
(Top View)
Pin Descriptions
Pin Names
A
1
, A
2
Y
1
, Y
2
Description
Data Inputs
Output
Pin One Orientation Diagram
Function Table
Y
=
A
Input
A
L
H
H
=
HIGH Logic Level
L
=
LOW Logic Level
Output
Y
L
H
AAA represents Product Code Top Mark - see ordering code
Note:
Orientation of Top Mark determines Pin One location. Read the top
product code mark left to right, Pin One is the lower left pin (see diagram).
TinyLogic錚?is a trademark of Fairchild Semiconductor Corporation.
漏 2001 Fairchild Semiconductor Corporation
DS500216
www.fairchildsemi.com

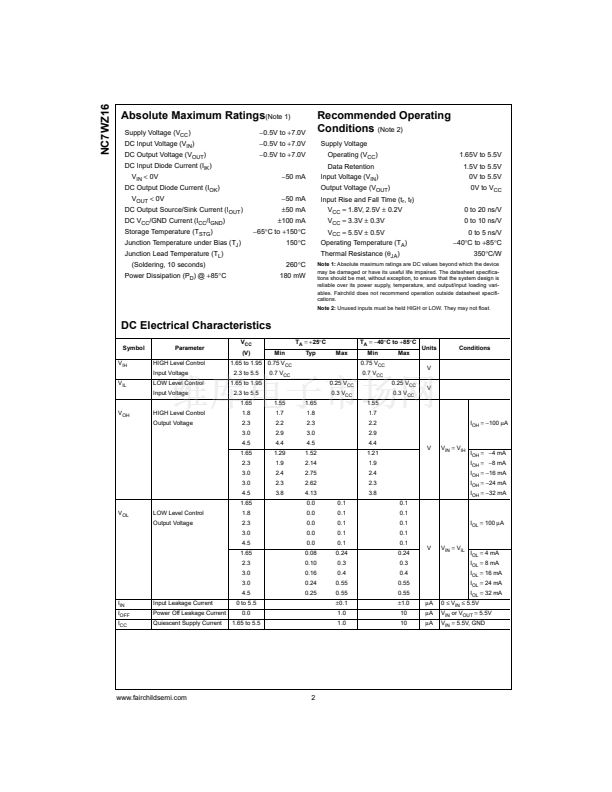

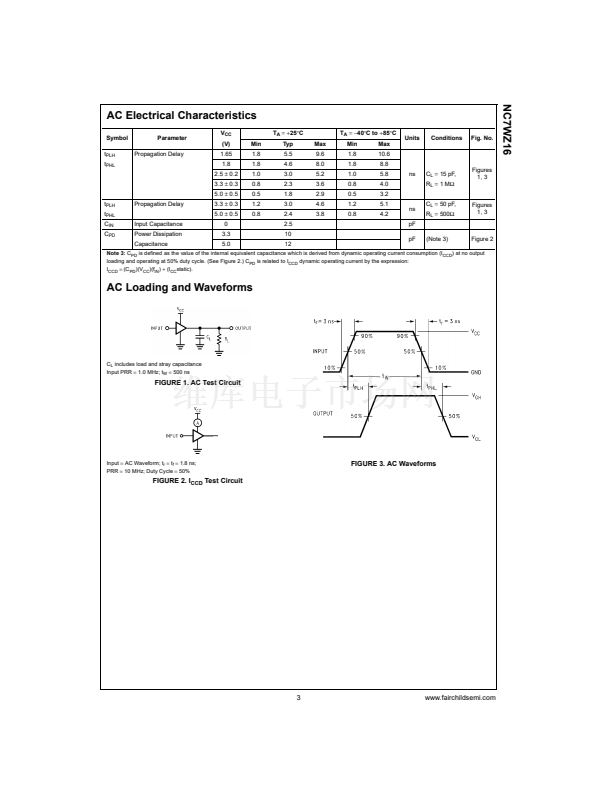

NC7WZ16P6 產品屬性

  • 250

  • 集成電路 (IC)

  • 邏輯 - 緩沖器，驅動器，接收器，收發器

  • 7WZ

  • 緩沖器/線路驅動器，非反相

  • 2

  • 1

  • 32mA，32mA

  • 1.65 V ~ 5.5 V

  • -40°C ~ 85°C

  • 表面貼裝

  • 6-TSSOP，SC-88，SOT-363

  • SC-70-6

  • 帶卷 (TR)

  • NC7WZ16P6TR
