NC7SZ38P5 Datasheet

  • NC7SZ38P5

  • Single 2-input NAND Gate

  • 7頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

NC7SZ38 TinyLogic錚?UHS 2-Input NAND Gate (Open Drain Output)
October 1996
Revised January 2001
NC7SZ38
TinyLogic
錚?/div>
UHS 2-Input NAND Gate (Open Drain Output)
General Description
The NC7SZ38 is a single 2-Input NAND Gate with open
drain output stage from Fairchild鈥檚 Ultra High Speed Series
of TinyLogic
錚?/div>
. The device is fabricated with advanced
CMOS technology to achieve ultra high speed with high
output drive while maintaining low static power dissipation
over a very broad V
CC
operating range. The device is
specified to operate over the 1.65V to 5.5V V
CC
range. The
inputs and output are high impedance when V
CC
is 0V.
Inputs tolerate voltages up to 6V independent of V
CC
oper-
ating voltage. The open drain output stage will tolerate volt-
ages up to 6V independent of V
CC
when in the high
impedance state.
Features
s
Space saving SOT23 or SC70 5-lead package
s
Open Drain output stage for OR tied applications
s
Ultra High Speed; t
PD
2.4 ns Typ into 50 pF at 5V V
CC
s
High Output Sink Drive; 24 mA at 3V V
CC
s
Broad V
CC
Operating Range; 1.65V to 5.5V
s
Matches the performance of LCX when operated at
3.3V V
CC
s
Power down high impedance inputs/output
s
Overvoltage Tolerant inputs facilitate 5V to 3V
translation
s
Patented noise/EMI reduction circuitry implemented
Ordering Code:
Order
Number
NC7SZ38M5
NC7SZ38M5X
NC7SZ38P5
NC7SZ38P5X
Package
Number
MA05B
MA05B
MAA05A
MAA05A
Product Code
Top Mark
7Z38
7Z38
Z38
Z38
Package Description
5-Lead SOT23, JEDEC MO-178, 1.6mm
5-Lead SOT23, JEDEC MO-178, 1.6mm
5-Lead SC70, EIAJ SC-88a, 1.25mm Wide
5-Lead SC70, EIAJ SC-88a, 1.25mm Wide
Supplied As
250 Units on Tape and Reel
3k Units on Tape and Reel
250 Units on Tape and Reel
3k Units on Tape and Reel
Logic Symbol
IEEE/IEC
Connection Diagram
(Top View)
Pin Descriptions
Pin Names
A, B
Y
Description
Inputs
Output
Function Table
Y
=
AB
Inputs
A
L
L
H
H
B
L
H
L
H
Output
Y
*H
*H
*H
L
H
=
HIGH Logic Level
L
=
LOW Logic Level
*H
=
HIGH Impedance output state (Open Drain)
TinyLogic錚?is a trademark of Fairchild Semiconductor Corporation.
漏 2001 Fairchild Semiconductor Corporation
DS012175
www.fairchildsemi.com

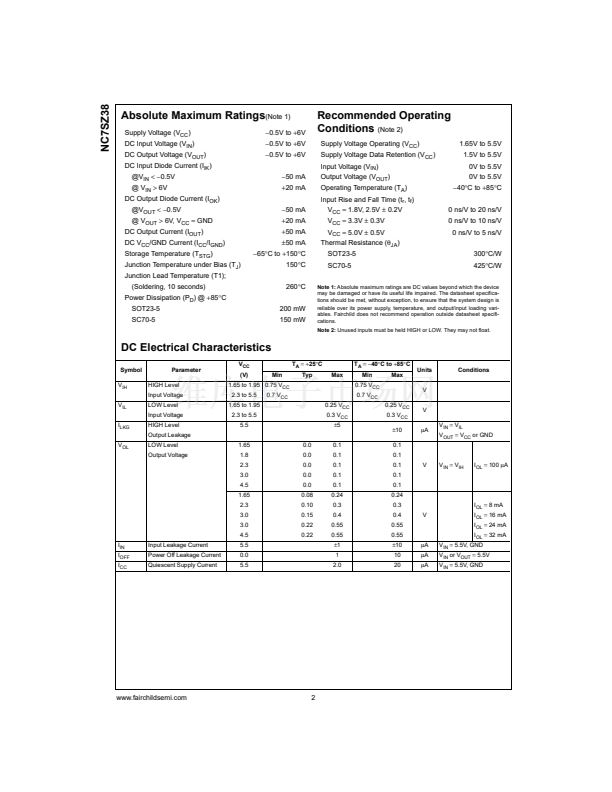

NC7SZ38P5 產品屬性

  • 250

  • 集成電路 (IC)

  • 邏輯 - 柵極和逆變器

  • 7SZ

  • 與非門

  • 1

  • 2

  • 開路漏極

  • 1.65 V ~ 5.5 V

  • 2µA

  • -，32mA

  • -

  • -

  • 4.3ns @ 5V，50pF

  • -40°C ~ 85°C

  • 表面貼裝

  • SC-70-5

  • 6-TSSOP（5 引線），SC-88A，SOT-353

  • 帶卷 (TR)
