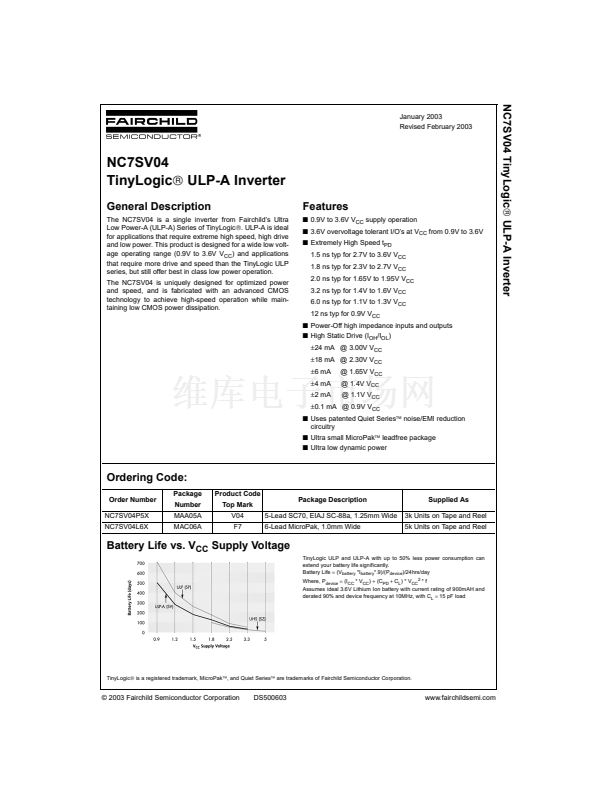

NC7SV04 TinyLogic錚?ULP-A Inverter
January 2003
Revised February 2003
NC7SV04
TinyLogic
錚?/div>
ULP-A Inverter
General Description
The NC7SV04 is a single inverter from Fairchild鈥檚 Ultra
Low Power-A (ULP-A) Series of TinyLogic
錚?/div>
. ULP-A is ideal
for applications that require extreme high speed, high drive
and low power. This product is designed for a wide low volt-
age operating range (0.9V to 3.6V V
CC
) and applications
that require more drive and speed than the TinyLogic ULP
series, but still offer best in class low power operation.
The NC7SV04 is uniquely designed for optimized power
and speed, and is fabricated with an advanced CMOS
technology to achieve high-speed operation while main-
taining low CMOS power dissipation.
Features
s
0.9V to 3.6V V
CC
supply operation
s
3.6V overvoltage tolerant I/O鈥檚 at V
CC
from 0.9V to 3.6V
s
Extremely High Speed t
PD
1.5 ns typ for 2.7V to 3.6V V
CC
1.8 ns typ for 2.3V to 2.7V V
CC
2.0 ns typ for 1.65V to 1.95V V
CC
3.2 ns typ for 1.4V to 1.6V V
CC
6.0 ns typ for 1.1V to 1.3V V
CC
12 ns typ for 0.9V V
CC
s
Power-Off high impedance inputs and outputs
s
High Static Drive (I
OH
/I
OL
)
鹵
24 mA @ 3.00V V
CC
鹵
18 mA @ 2.30V V
CC
鹵
6 mA
鹵
4 mA
鹵
2 mA
@ 1.65V V
CC
@ 1.4V V
CC
@ 1.1V V
CC
鹵
0.1 mA @ 0.9V V
CC
s
Uses patented Quiet Series
錚?/div>
noise/EMI reduction
circuitry
s
Ultra small MicroPak
錚?/div>
leadfree package
s
Ultra low dynamic power
Ordering Code:
Order Number
NC7SV04P5X
NC7SV04L6X
Package
Number
MAA05A
MAC06A
Product Code
Top Mark
V04
F7
Package Description

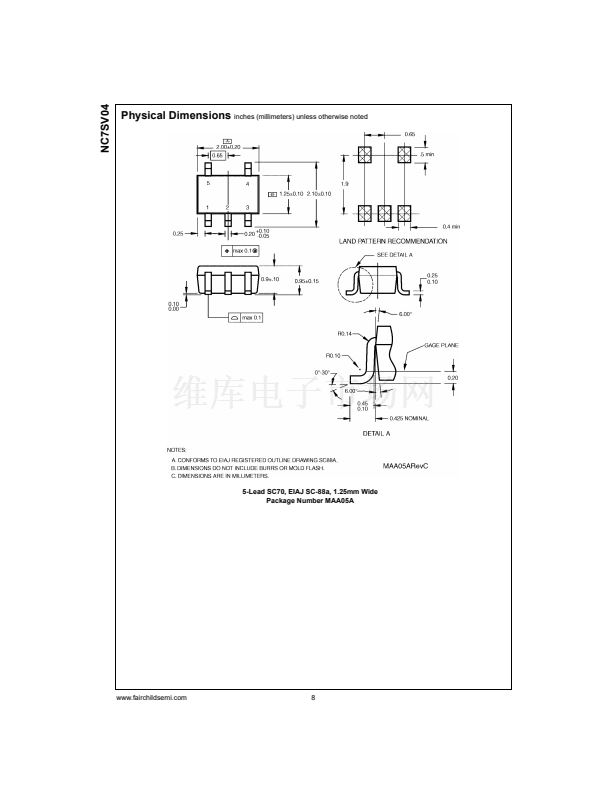

5-Lead SC70, EIAJ SC-88a, 1.25mm Wide

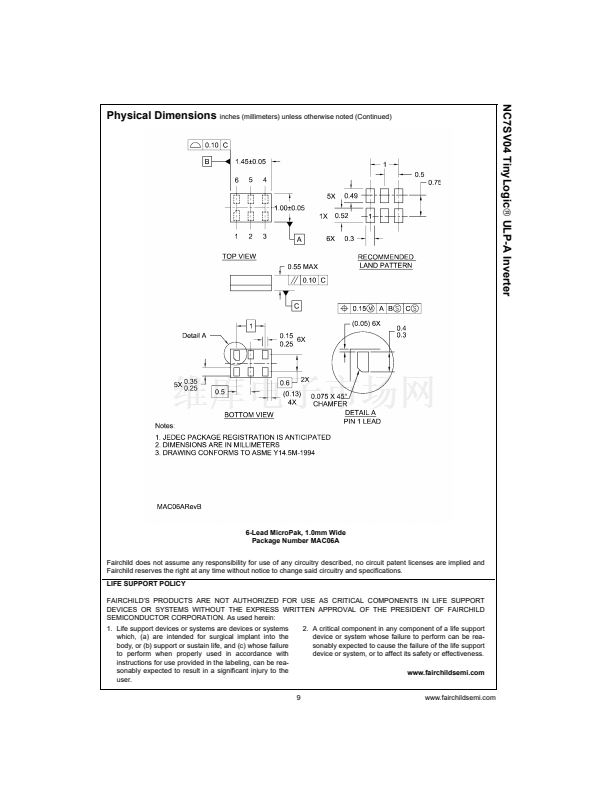

6-Lead MicroPak, 1.0mm Wide
Supplied As

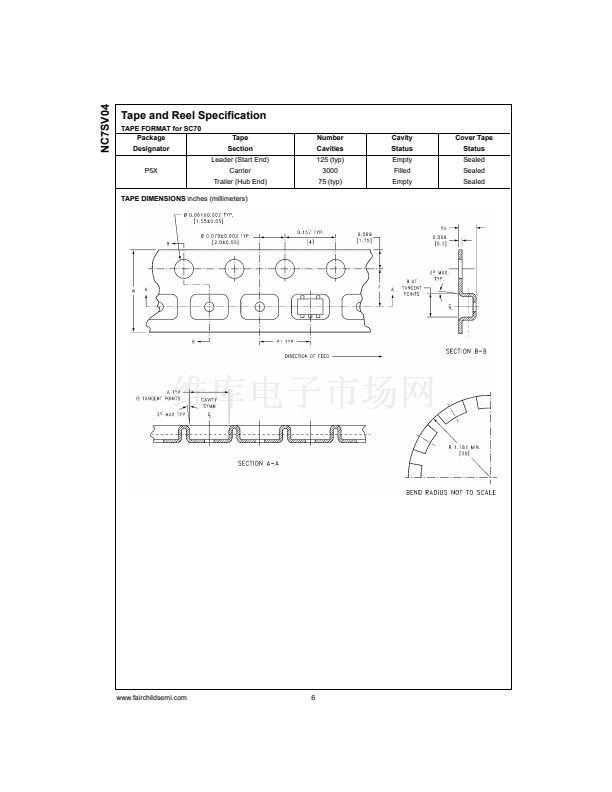

3k Units on Tape and Reel

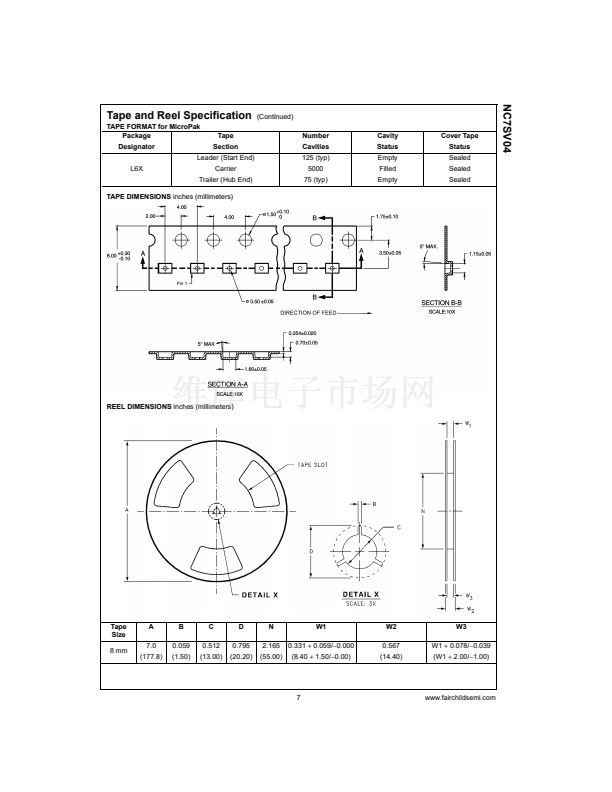

5k Units on Tape and Reel
Battery Life vs. V
CC
Supply Voltage
TinyLogic ULP and ULP-A with up to 50% less power consumption can
extend your battery life significantly.
Battery Life
=
(V
battery
*I
battery
*.9)/(P
device
)/24hrs/day
Where, P
device
=
(I
CC
* V
CC
)
+
(C
PD
+
C
L
) * V
CC2
* f
Assumes ideal 3.6V Lithium Ion battery with current rating of 900mAH and
derated 90% and device frequency at 10MHz, with C
L
=
15 pF load
TinyLogic錚?is a registered trademark, MicroPak錚? and Quiet Series錚?are trademarks of Fairchild Semiconductor Corporation.
漏 2003 Fairchild Semiconductor Corporation
DS500603
www.fairchildsemi.com
