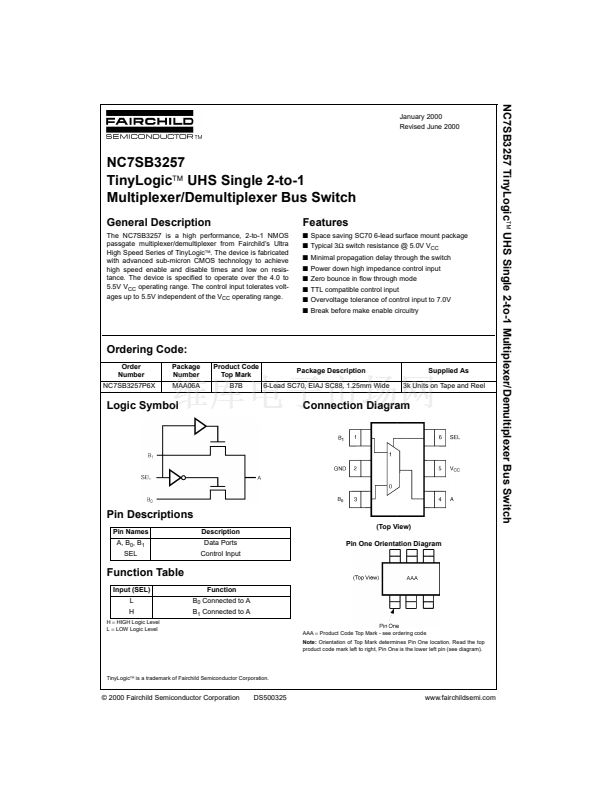

. The device is fabricated
tance. The device is specified to operate over the 4.0 to
operating range. The control input tolerates volt-
operating range.
鈩?/div>
switch resistance @ 5.0V V
CC
s
Minimal propagation delay through the switch
s
Power down high impedance control input
s
Zero bounce in flow through mode
s
TTL compatible control input
s
Overvoltage tolerance of control input to 7.0V
s
Break before make enable circuitry
Ordering Code:
Order
Number
NC7SB3257P6X
Package
Number
MAA06A
Product Code
Top Mark
B7B
Package Description
6-Lead SC70, EIAJ SC88, 1.25mm Wide
Supplied As
3k Units on Tape and Reel
Logic Symbol
Connection Diagram
Pin Descriptions
Pin Names
A, B
0
, B
1
SEL
Description
Data Ports
Control Input
(Top View)
Pin One Orientation Diagram
Function Table
Input (SEL)
L
H
H
=
HIGH Logic Level
L
=
LOW Logic Level
Function
B
0
Connected to A
B
1
Connected to A
AAA
=
Product Code Top Mark - see ordering code
Note:
Orientation of Top Mark determines Pin One location. Read the top
product code mark left to right, Pin One is the lower left pin (see diagram).
TinyLogic錚?is a trademark of Fairchild Semiconductor Corporation.
漏 2000 Fairchild Semiconductor Corporation
DS500325
